Power Seat Systems Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Power Seat Subsystem

Courtesy of GENERAL MOTORS CORP.

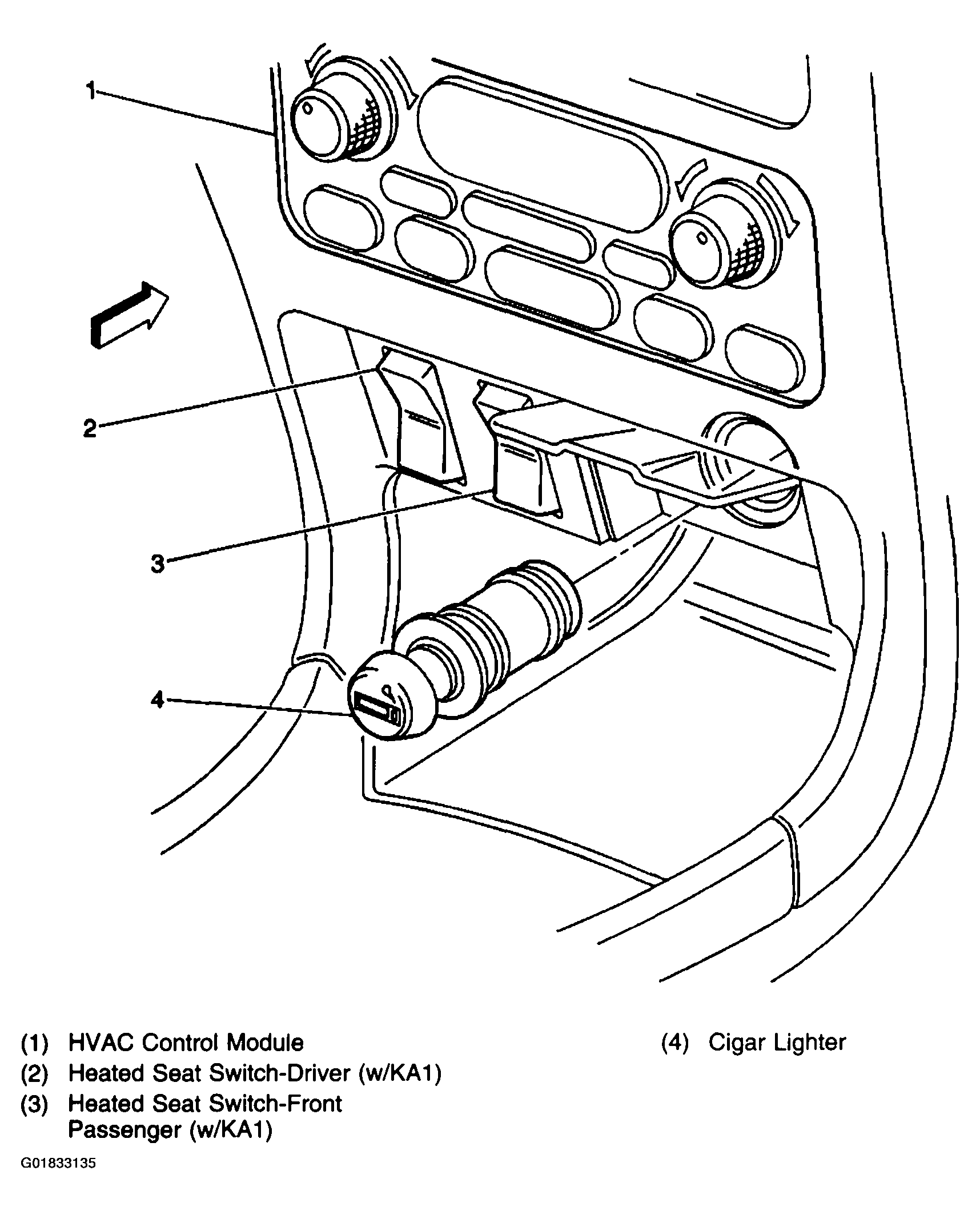

Fig 2: Lower Center of Instrument Panel

Courtesy of GENERAL MOTORS CORP.
