Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Position the heated seat module under the seat.
Connect the electric connectors.

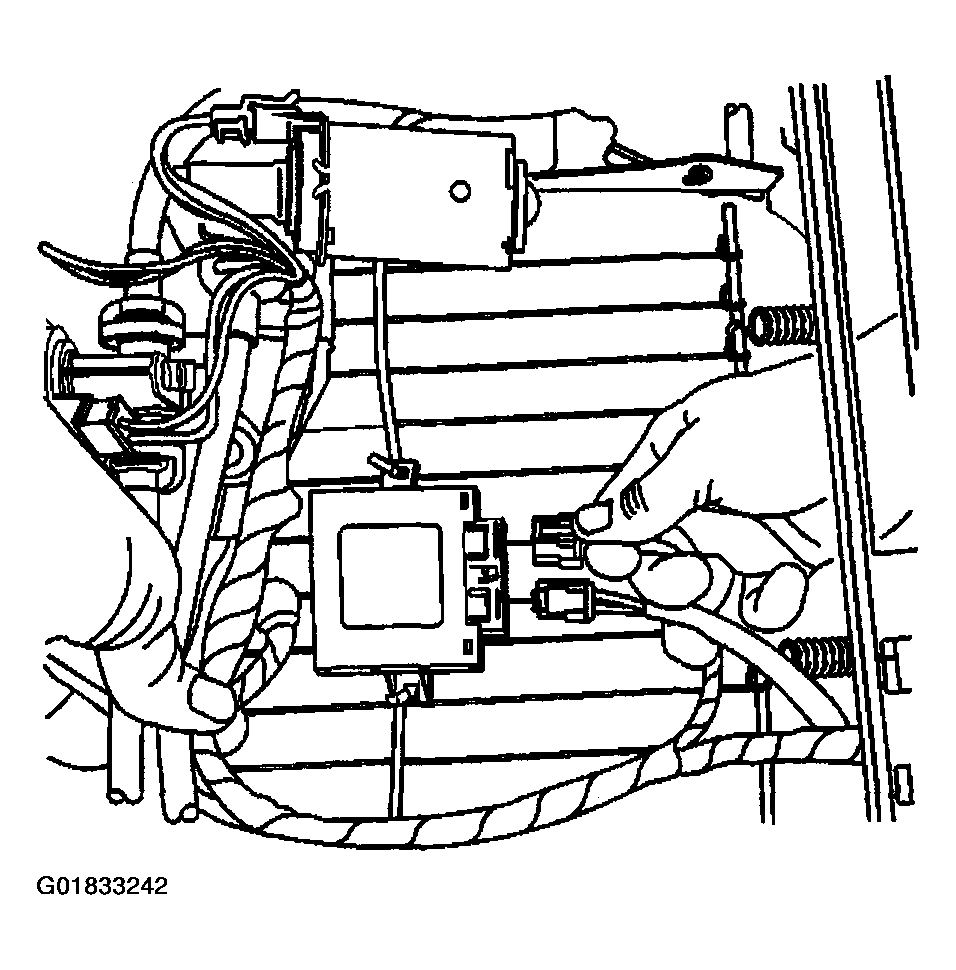

Fig 1: Connecting Electric Connectors
Courtesy of GENERAL MOTORS CORP.
Install the tie straps on each side of the module.
NOTE: Refer to FASTENER NOTICE .
Install the front bucket seat adjuster-to-floor pan bolts.
Tighten

Tighten the front bucket seat adjuster-to-floor pan bolts to 42 N.m (31 lb ft).
Move the seat to its original position.

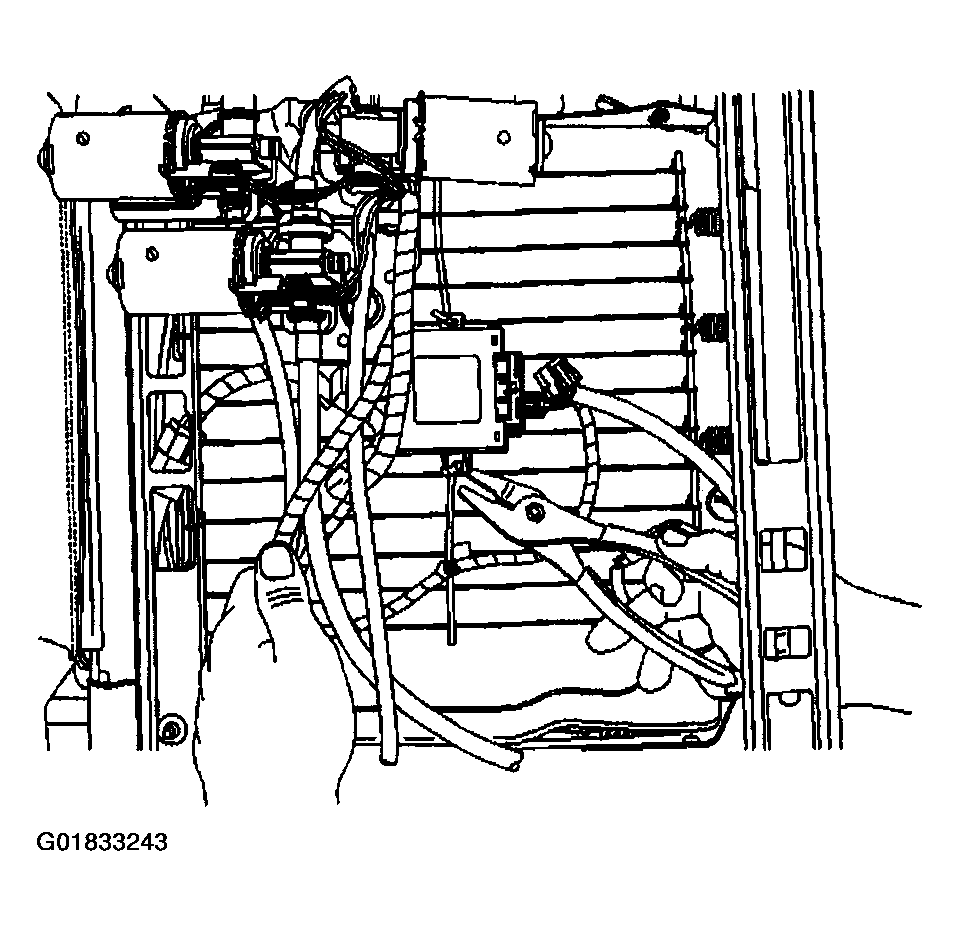

Fig 2: Installing Tie Straps On Each Side Of Module
Courtesy of GENERAL MOTORS CORP.
