Installation Procedure

  1. Install the rear window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows  .
  2. Connect the rear window electrical connectors.
  3. Install the OnStar® antenna. Refer to COUPLING REPLACEMENT -- ANTENNA INNER and COUPLING REPLACEMENT -- ANTENNA OUTER .
  4. Connect the antenna connection to the rear window.

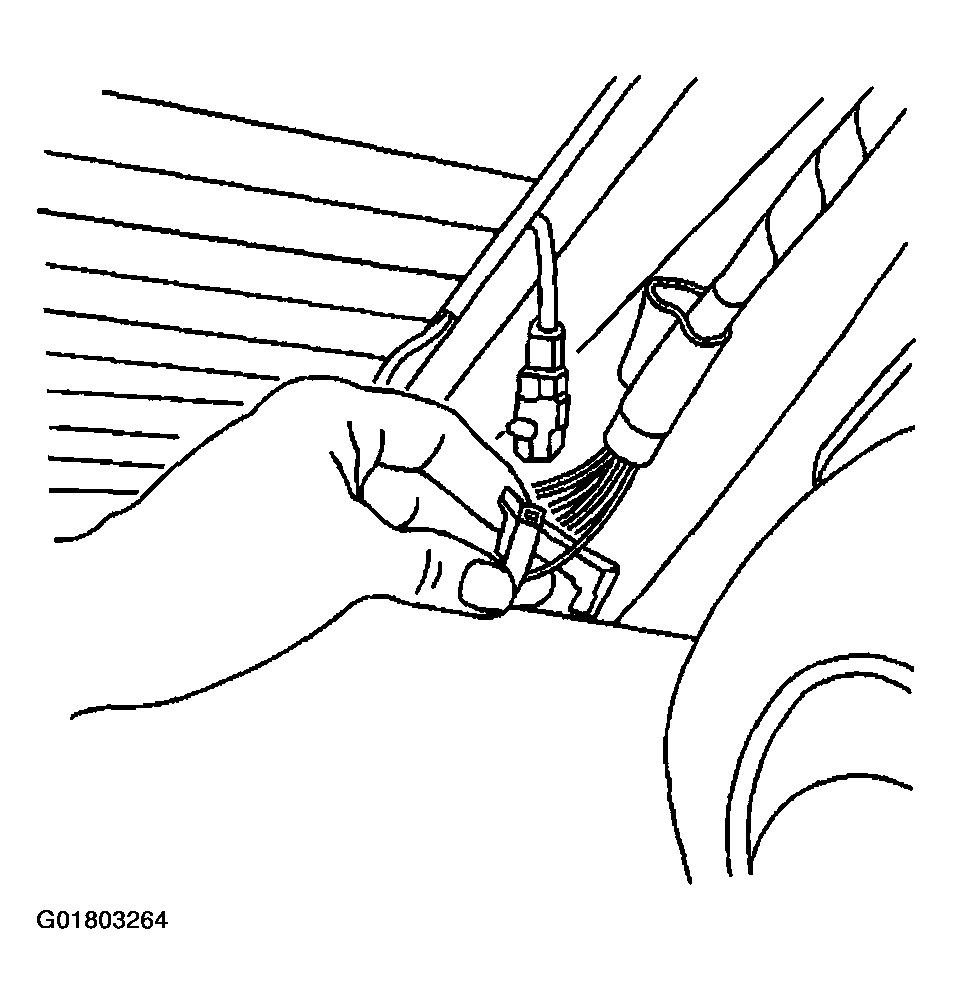

    5. Fig 1: Connecting Antenna Connection
    G01803264Courtesy of GENERAL MOTORS CORP.
  5. Install the rear upper interior quarter trim. Refer to TRIM PANEL REPLACEMENT -- REAR QUARTER UPPER .
  6. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  7. Close the rear compartment lid.
