Installation Procedure

  1. Install the child tether anchors to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the child tether anchor fasteners.

    Tighten

    Tighten the fastener to 30 N.m (22 lb ft).

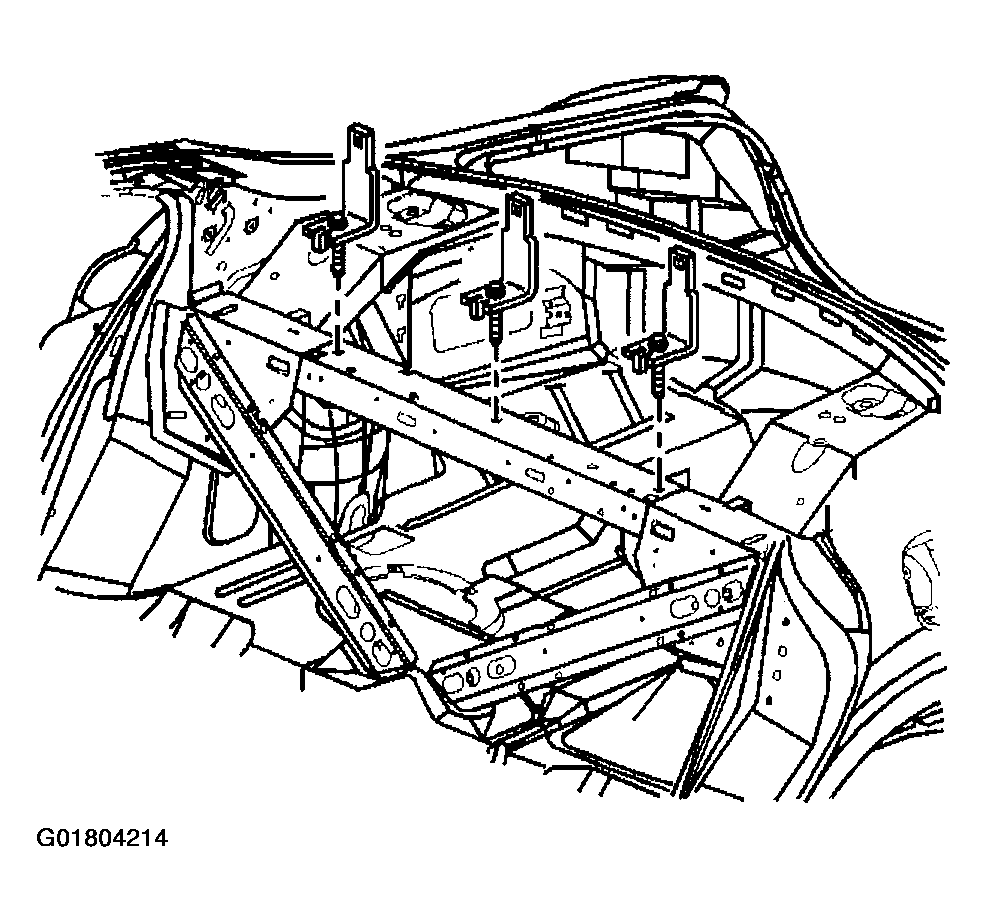

    3. Fig 1: Installing Child Tether Anchors
    G01804214Courtesy of GENERAL MOTORS CORP.
  3. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF
