Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Motor Control Processor | Behind dash, at right front of blower motor assembly. See Figure . |
| Cruise Control Module | At left side of engine compartment, on strut tower. |
| Dash Integration Module (DIM) | Behind dash, under right dash sound insulator. |
| Electronic Brake Control Module (EBCM) (3.5L VIN H) | Under air cleaner housing. |

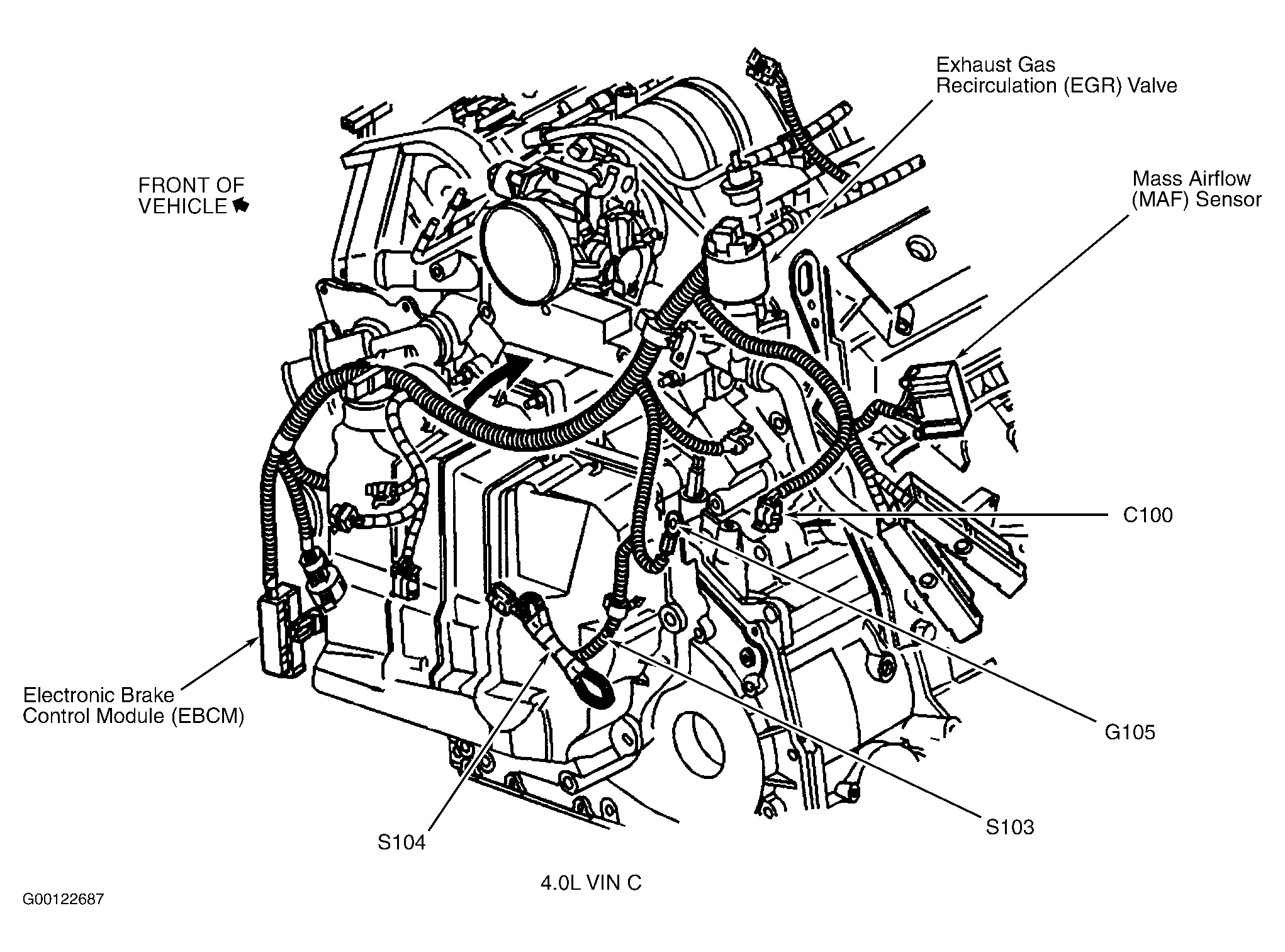

| Electronic Brake Control Module (EBCM) (4.0L VIN C) | Under air cleaner housing. See Figure . |
| HVAC Control Module | At center of dash, above radio. |

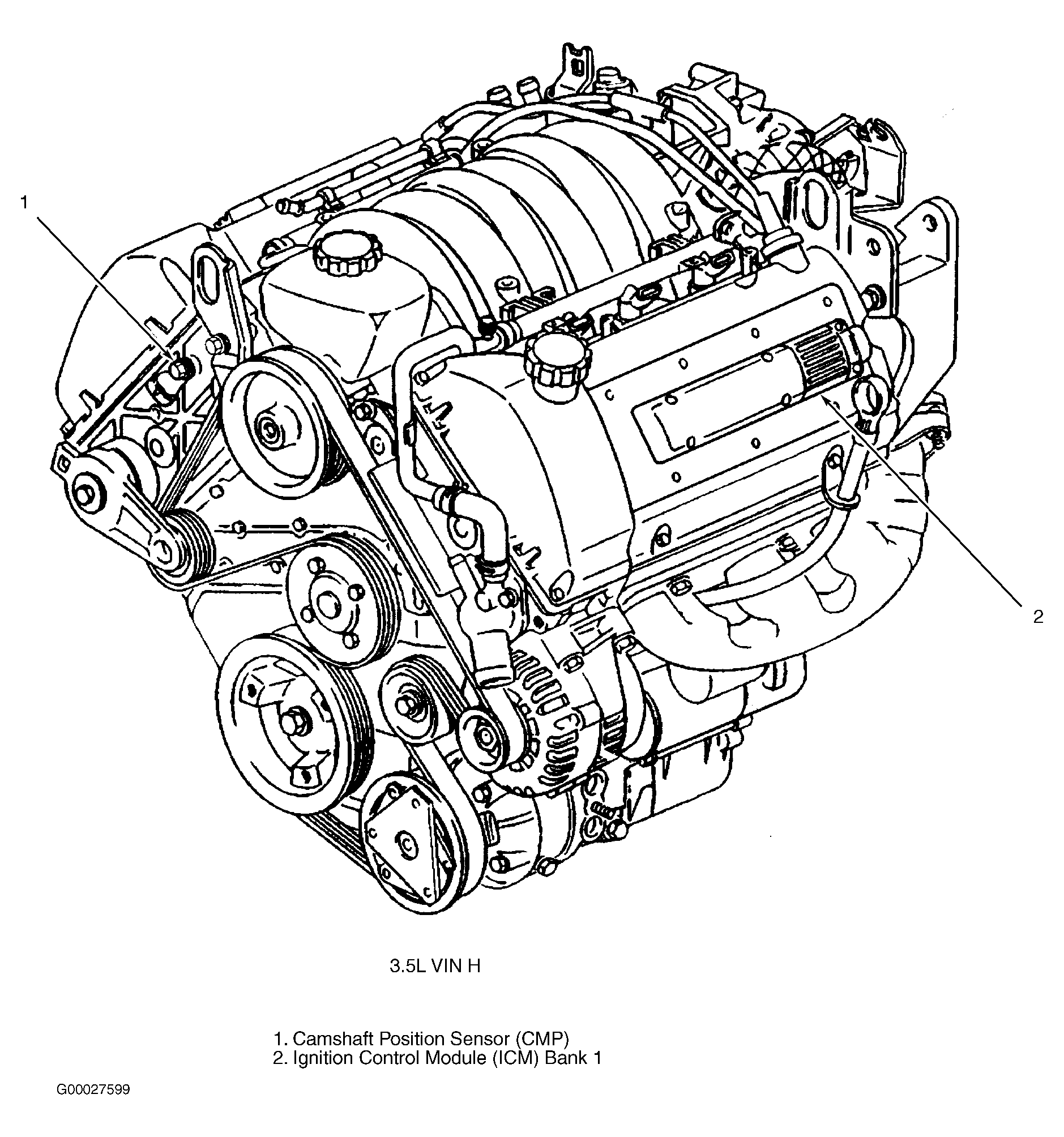

| Ignition Control Module (ICM) Bank 1 (3.5L VIN H) | On top of left cam cover. See Figure . |
| Ignition Control Module (ICM) Bank 2 (3.5L VIN H) | On top of right cam cover. See Figure . |
| Ignition Control Module (ICM) Front Bank (4.0L VIN C) | On top of left cam cover. |
| Ignition Control Module (ICM) Rear Bank (4.0L VIN C) | On top of right cam cover. See Figure . |
| Inflatable Restraint IP Module | Under right side of instrument panel pad. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under center console, mounted to floor pan. |
| Instrument Panel Integration Module (IPM) | At center of dash, behind heater & A/C controls. |
| Powertrain Control Module (PCM) | At left side of engine compartment, under air cleaner. |
| Radio Antenna Module | At rear of headliner. |
| Rear Integration Module (RIM) | Near upper left corner of rear shelf panel. |
| Remote Control Door Lock Receiver | Behind rear seat back. |
| Sunroof Module | Above headliner, at rear of sunroof. |
| Theft Deterrent Control Module | Underside of dash, behind radio. |
| Theft Deterrent Exciter Module | Part of ignition switch assembly. |
| Turn Signal/Hazard Flasher Module | Behind left side of dash, above data link connector. |
| Vehicle Communication Unit (VCU) | Behind rear seat back. |
| Vehicle Interface Unit (VIU) | Behind rear seat back. |
