Component Locations

Fig 1: Locating Start 1 Relay In Underhood Fuse Block
G00354928Courtesy of GENERAL MOTORS CORP.

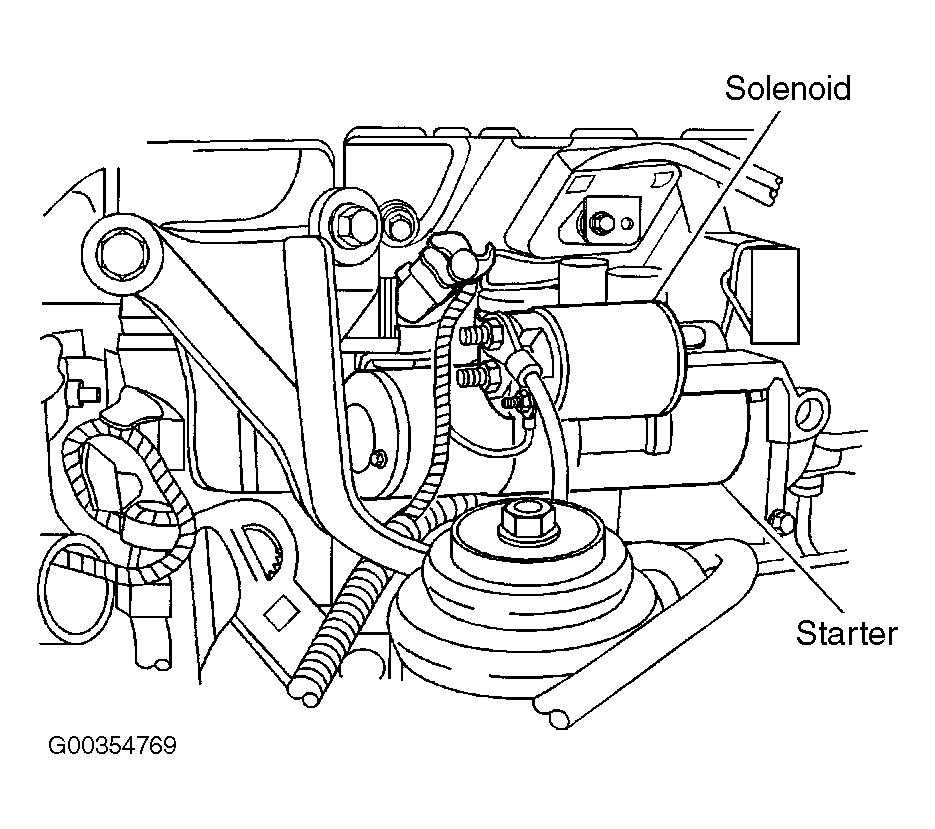

Fig 2: Identifying Starter Location - 3.5L V6
G00354769Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Starter Location - 4.0L V8
G00354927Courtesy of GENERAL MOTORS CORP.
