Home › Oldsmobile › 2002 › Aurora 4.0 C › Repair and Diagnosis › Restraints › Restraints Control Systems › Seat Belt System › Repair Instructions › Child Restraint Tether Anchor Replacement › Removal Procedure

Removal Procedure

  1. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF
  2. Remove the fasteners from the child tether anchors.
  3. Remove the child tether anchors from the vehicle.

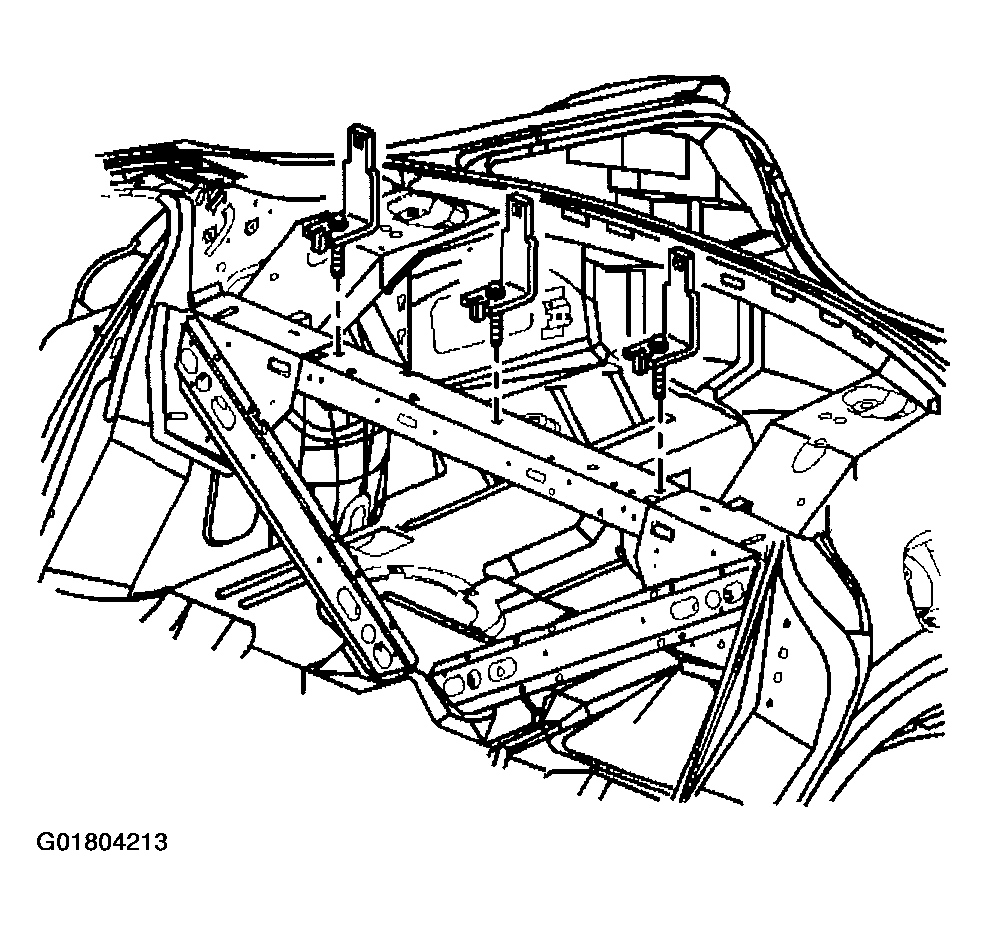

    Fig 1: Removing Child Tether Anchors
    G01804213Courtesy of GENERAL MOTORS CORP.
