Removal Procedure

  1. Open the liftgate.
  2. Release the clips that retain the garnish molding to the liftgate.
  3. Remove the wire harness (1) from the slot located on the garnish molding.
  4. Remove the garnish molding from the liftgate.

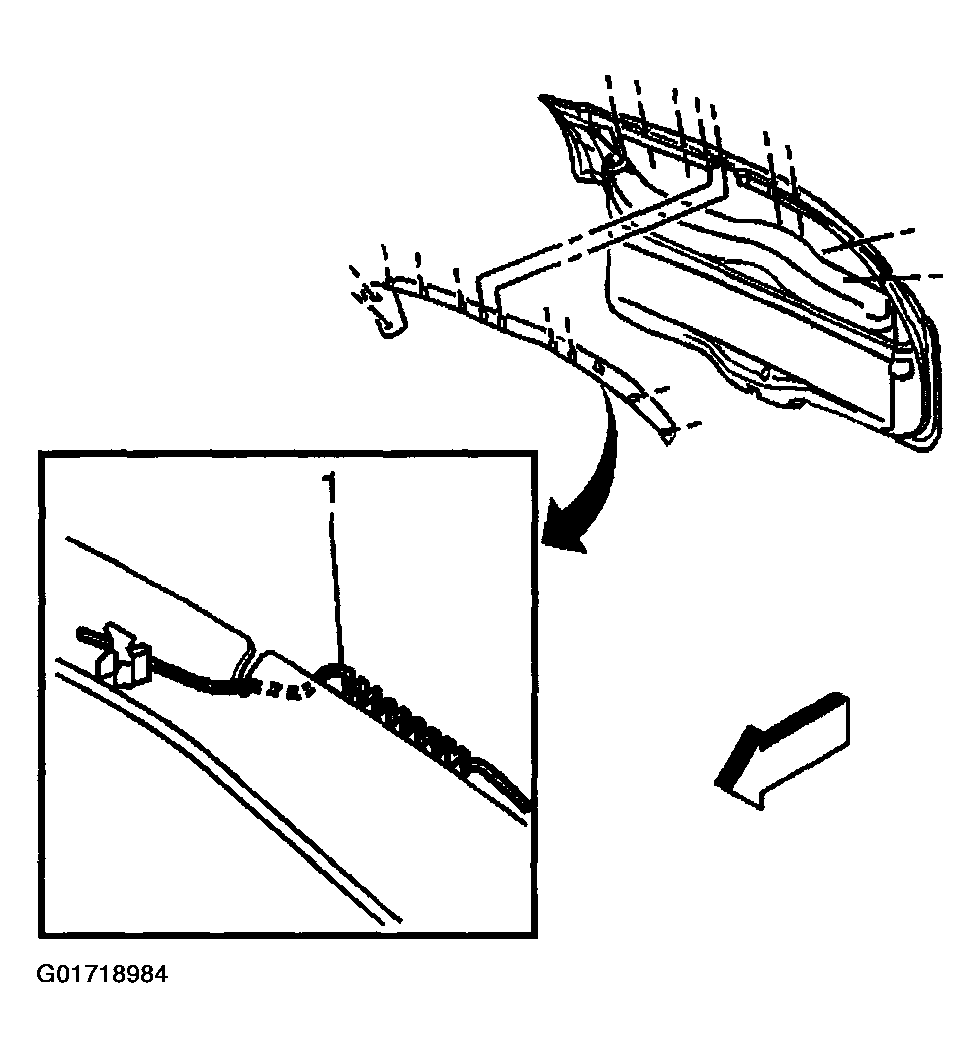

    Fig 1: Removing Rear Window Wire Harness In Molding
    G01718984Courtesy of GENERAL MOTORS CORP.
