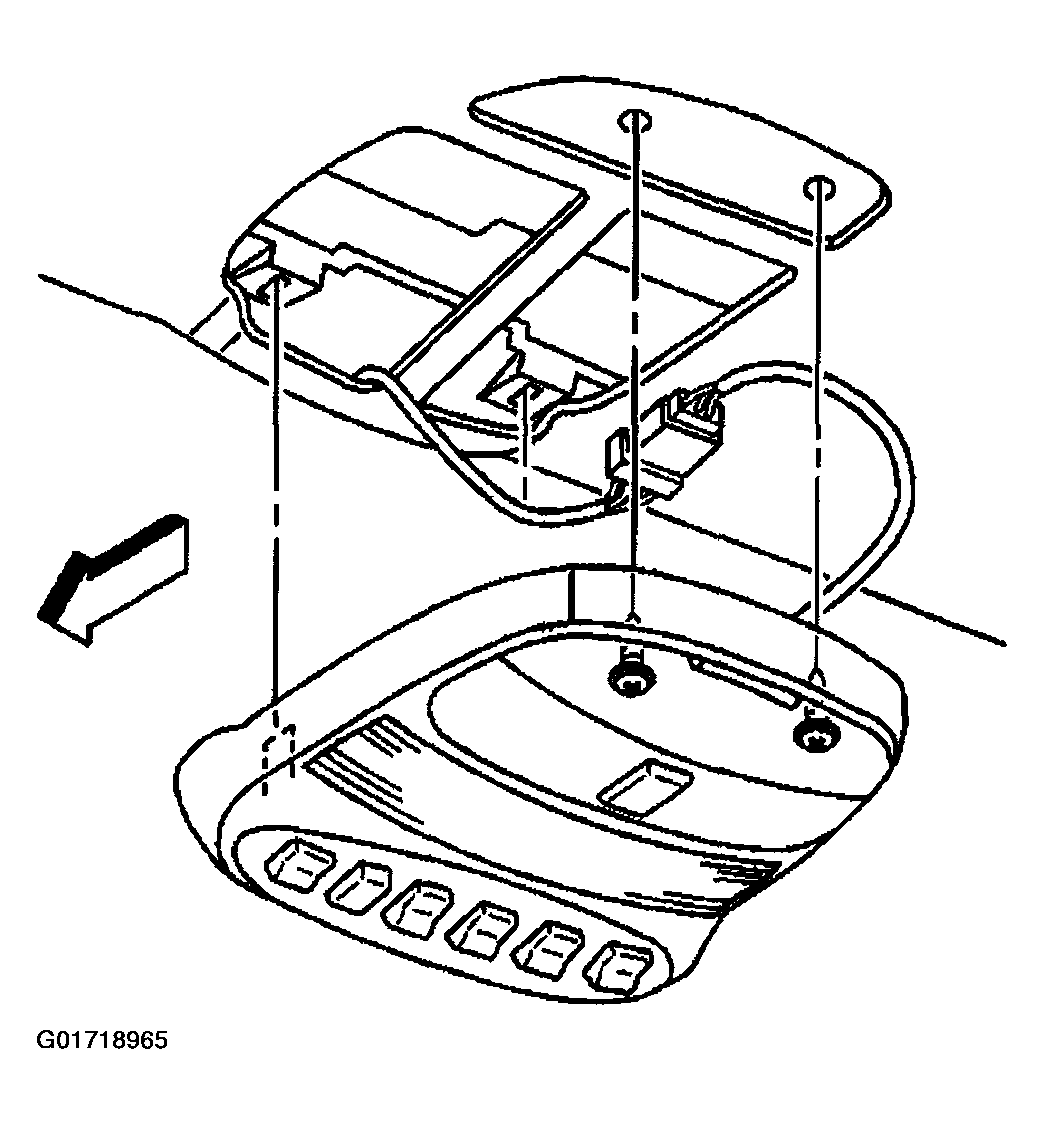

Removal Procedure
- Remove the 2 screws that retain the console to the roof panel.
- Release the front retaining tabs.
- Lower the console and disconnect the electrical connectors as needed.
- Remove the console from the vehicle
- If replacing the console, remove the garage door opener if equipped. Refer to GARAGE DOOR OPENER REPLACEMENT
in Garage Door Opener.
- If replacing the console, remove the OnStar® microphone if equipped. Refer to ONSTAR (R) MICROPHONE REPLACEMENT
in Cellular Communication.
- If replacing the console, remove the personal message player/recorder if equipped. Refer to PERSONAL MESSAGE PLAYER/RECORDER REPLACEMENT
in Entertainment.
- If replacing the console, remove the power sunroof switch if equipped. Refer to POWER SUNROOF SWITCH REPLACEMENT
in Roof.
- If replacing the console, remove the radio volume compensator interior microphone if equipped. Refer to MICROPHONE REPLACEMENT - RADIO VOLUME COMPENSATOR INTERIOR
in Roof.
Courtesy of GENERAL MOTORS CORP.
