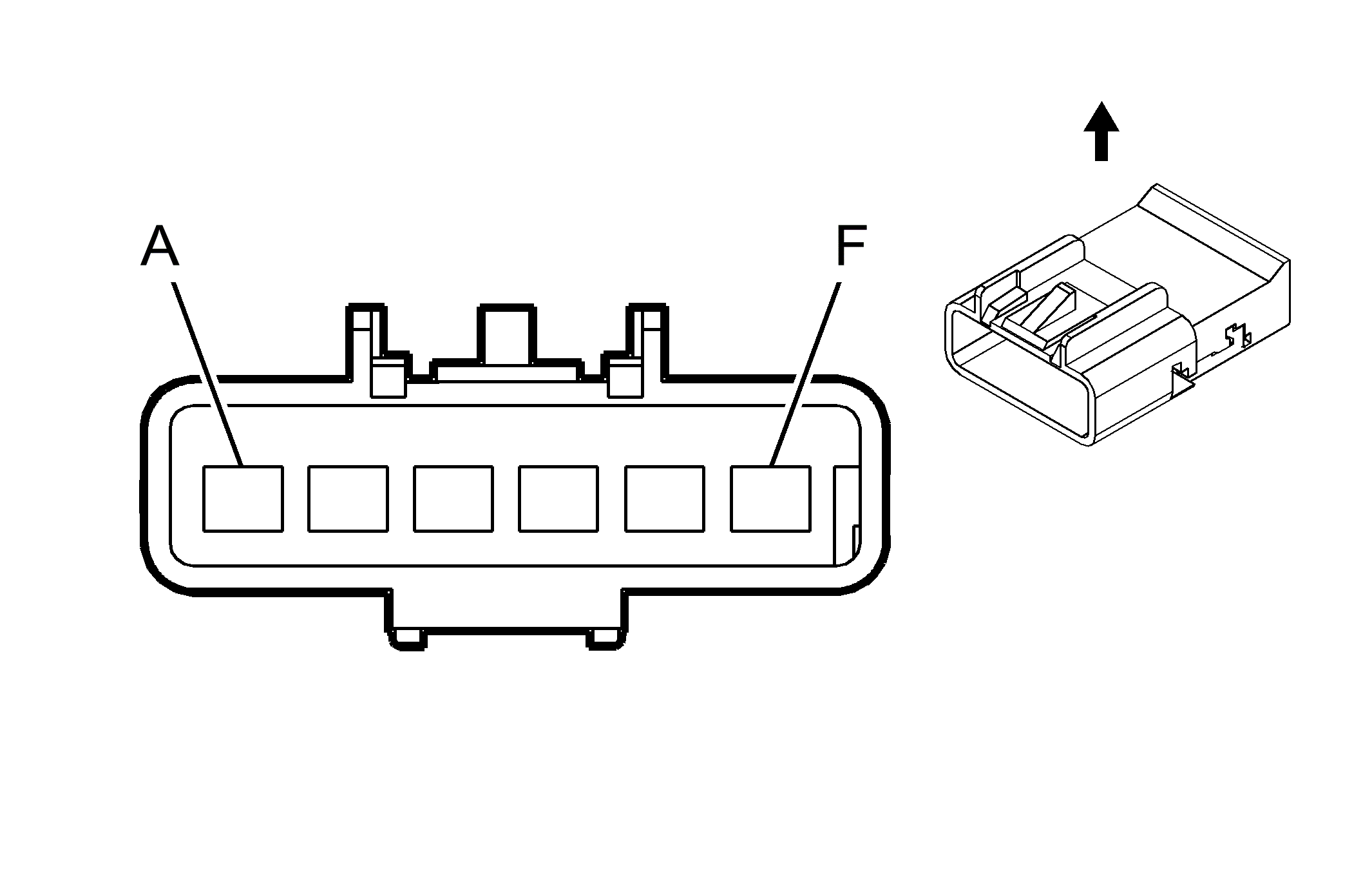

C308 Connector End View

C308

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326900 6-Way F GT 280 Unsealed (BLK)		Connector Part Information		15336904 6-Way M GT 280 Unsealed (BLK)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	BLK	1350	Ground	A	BLK/PPL	135	Ground
B	ORN	1740	Battery Positive Voltage	B	YEL/RED	174	Battery Positive Voltage
C	DK BLU	128	Sunroof Switch Low Reference	C	BRN	128	Sunroof Switch Low Reference
D	BRN	100	Sunroof Switch Open Signal	D	WHT	100	Sunroof Switch Open Signal
E	ORN	110	Sunroof Switch Close Signal	E	LT BLU	110	Sunroof Switch Close Signal
F	DK BLU	1353	RAP Supply Voltage	F	PPL	1353	RAP Supply Voltage
