Propshaft Speed Sensor Connector End View - LF Transfer Case

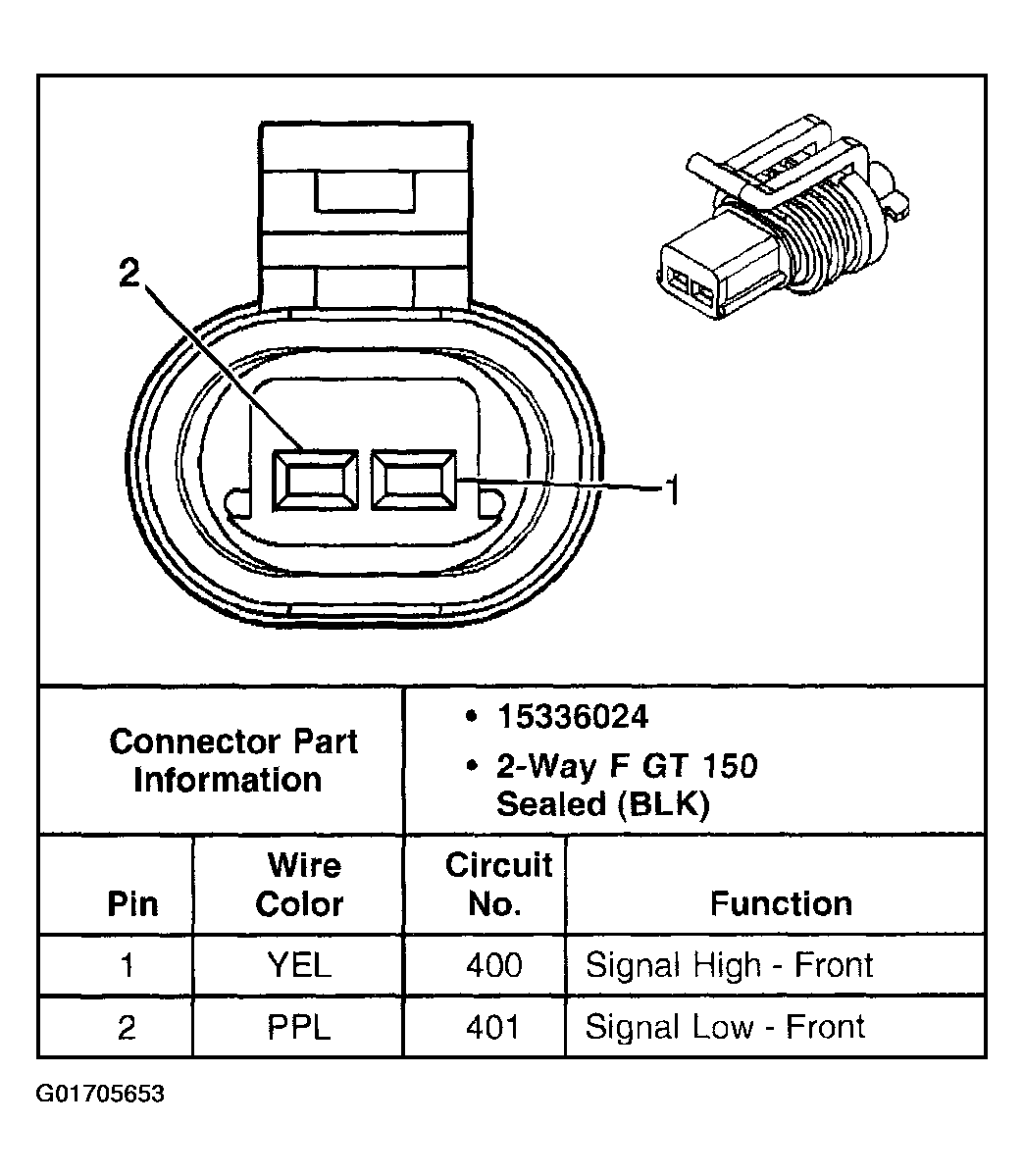

Fig 1: Propshaft Speed Sensor - LF Transfer Case
G01705653Courtesy of GENERAL MOTORS CORP.
