Transfer Case Shift Control Module Connector End View - C3

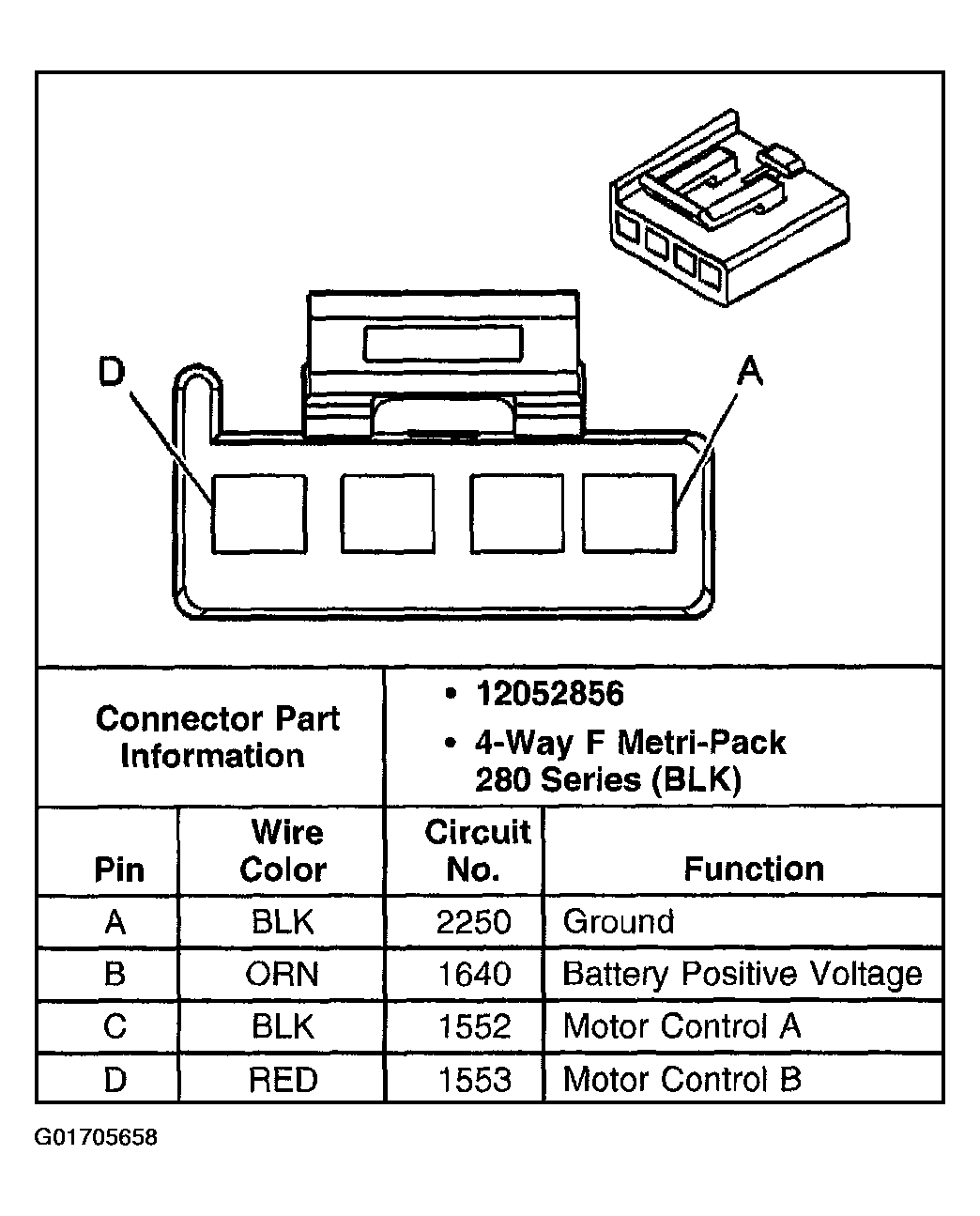

Fig 1: Transfer Case Shift Control Module - C3

Courtesy of GENERAL MOTORS CORP.

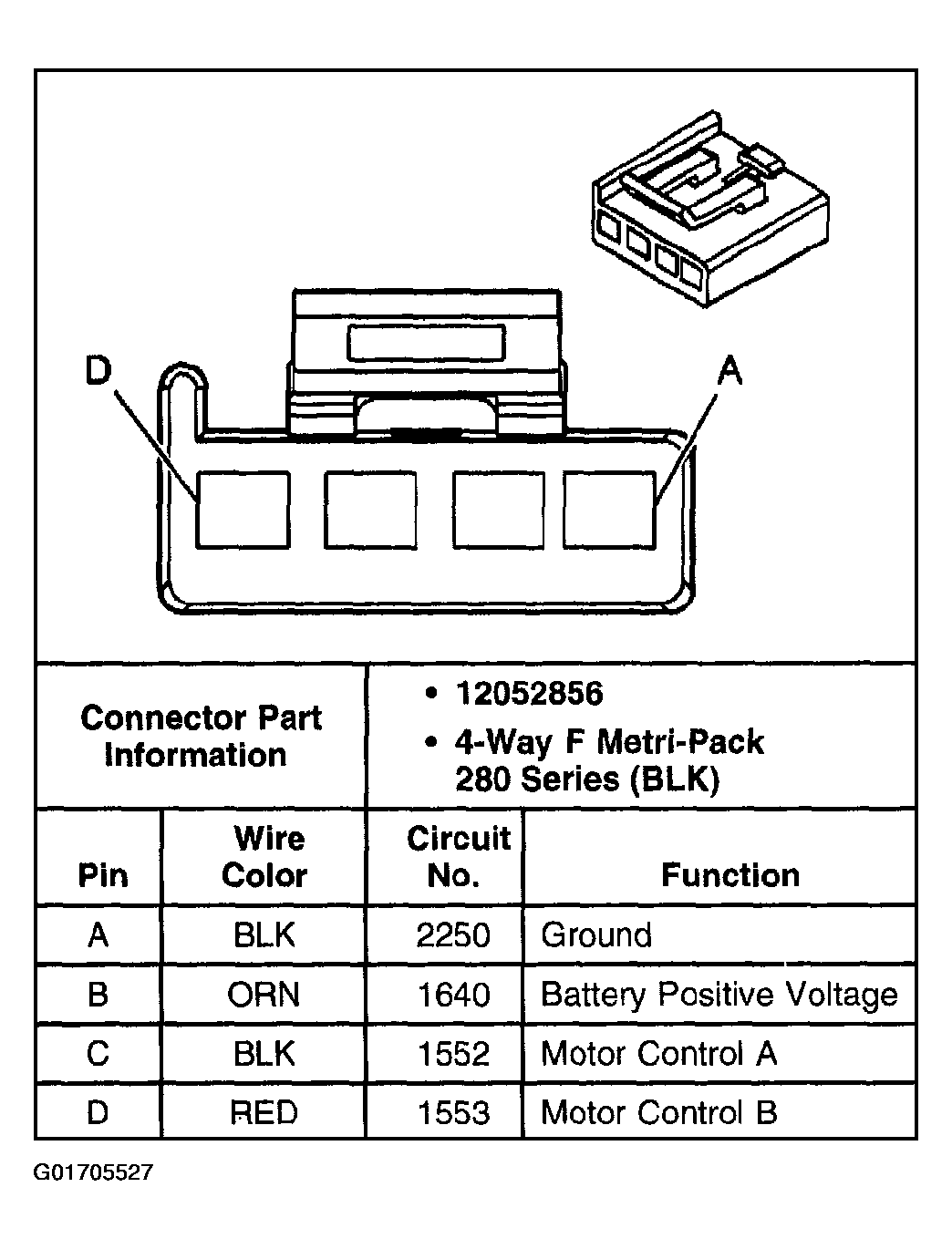

Fig 1: Transfer Case Shift Control Module - C3

Courtesy of GENERAL MOTORS CORP.
