Transfer Case Shift Control Switch Connector End View

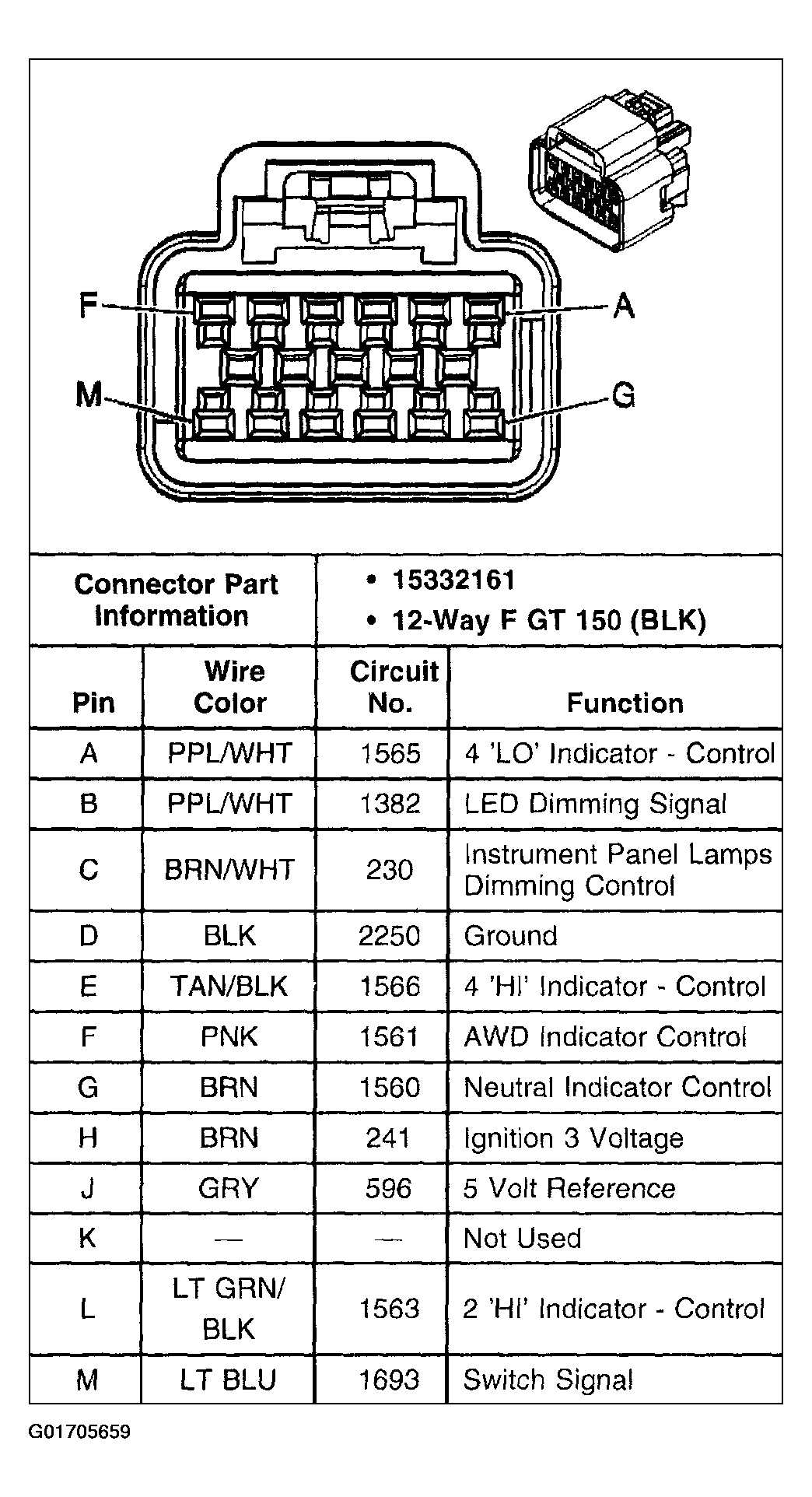

Fig 1: Transfer Case Shift Control Switch
G01705659Courtesy of GENERAL MOTORS CORP.
