Connector Identification

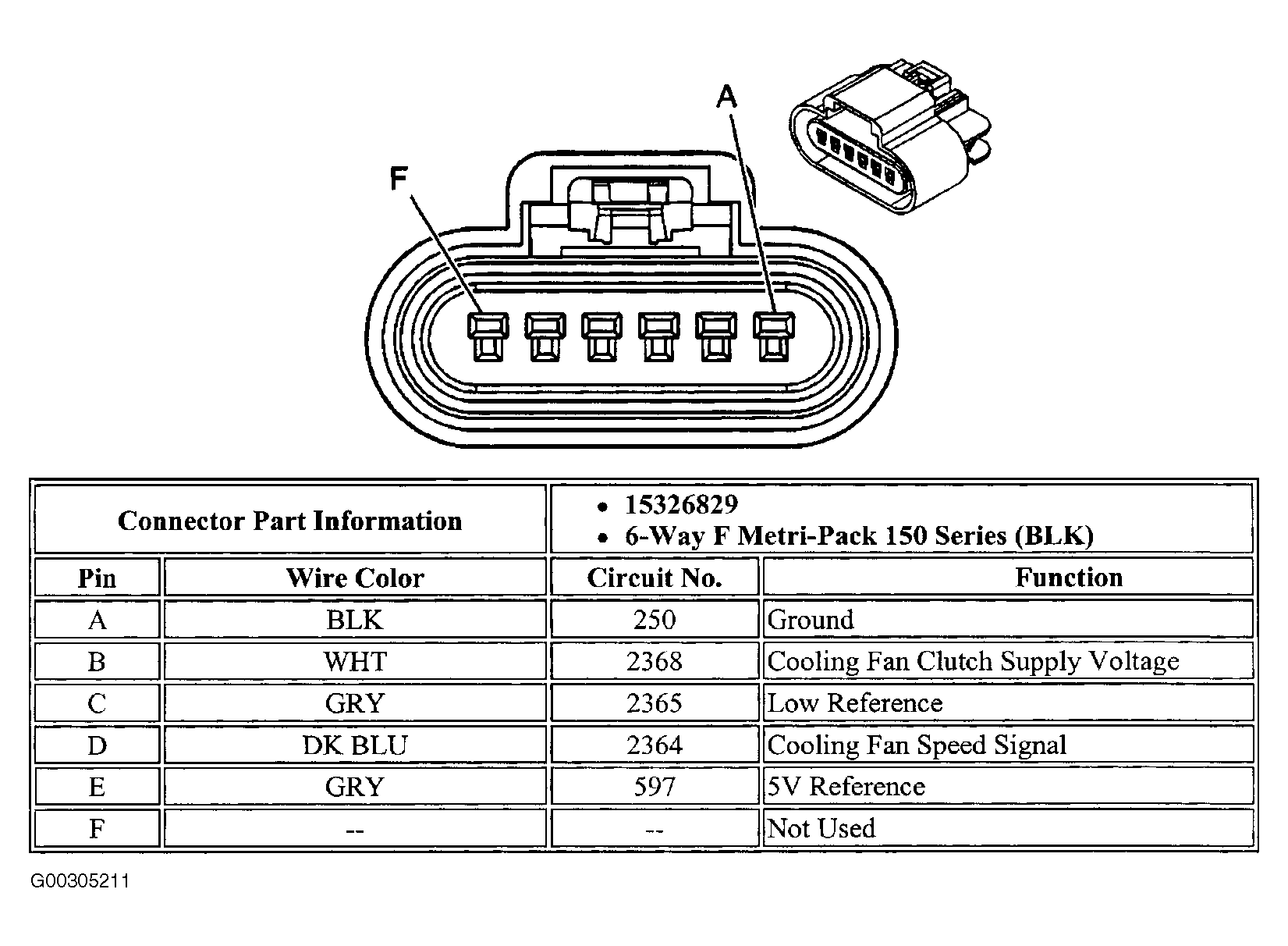

Fig 1: Identifying Cooling Fan Clutch Connector
G00305211Courtesy of GENERAL MOTORS CORP.
