Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

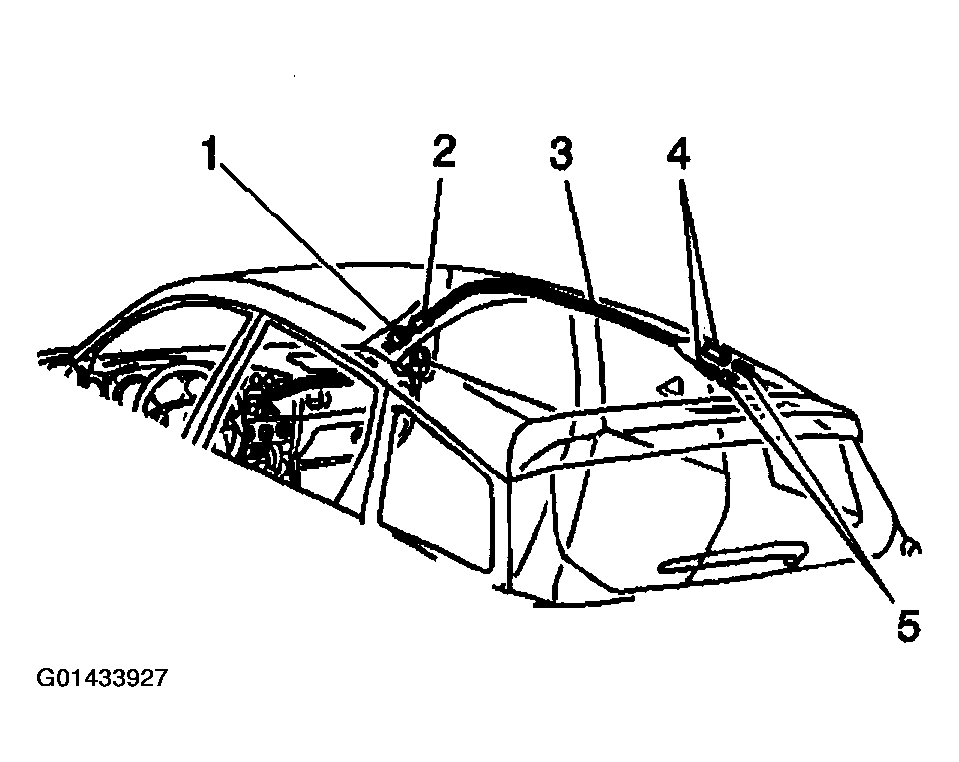

- Install the antenna extension cable (3) to the vehicle.
- Apply new tape to the extension cable plastic retainers.
- Connect the antenna extension cable rear connector (4), to the fixed antenna cable connector (5).
- Connect the antenna extension cable front connector (2) to the antenna cable connector (1).
- Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
