Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Insert the antenna cable (3) through the opening in the roof, make sure the 2 tabs (2) lock in.
Connect the antenna base cable assembly, to the rear antenna extension cable. Refer to ANTENNA EXTENSION CABLE REPLACEMENT in Entertainment.

Fig 1: Installing Antenna Base Cable Assembly To Vehicle
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Secure the antenna cable base (1) to the roof with the nut (4).
Tighten

Tighten the antenna base cable nut (4) to 4.5 N.m (40 Ib. in).

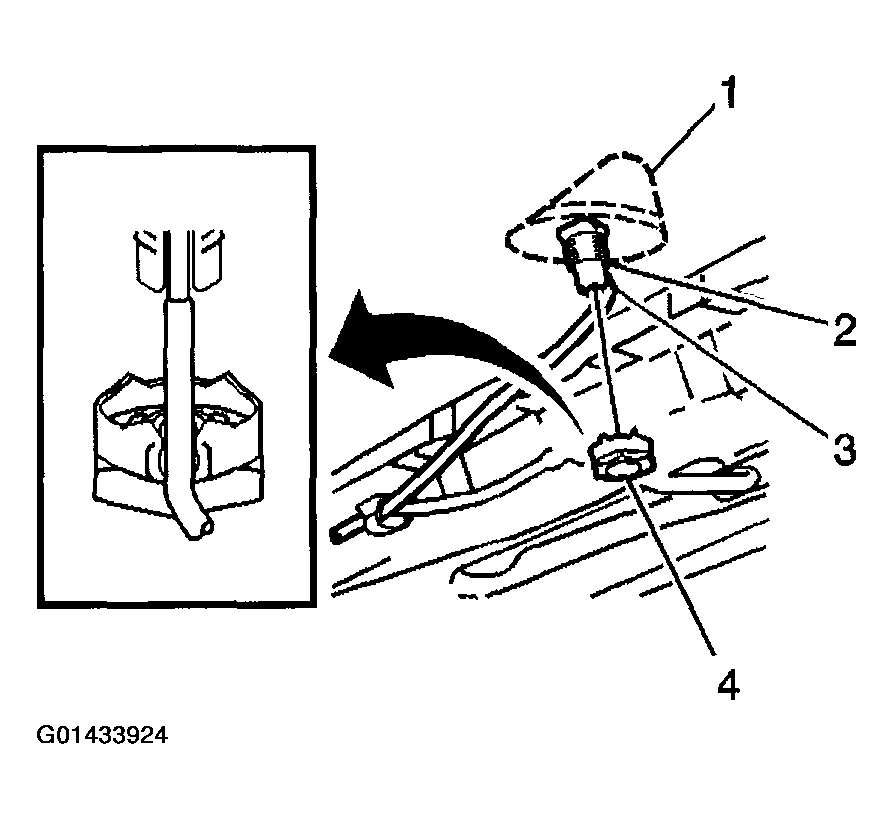

Fig 2: Securing Antenna Cable Base To Roof With Nut
Courtesy of GENERAL MOTORS CORP.
Route the antenna base cable assembly (1) along the roof (5).
Secure the antenna cable (1) to the roof (5) with the 4 retainers (4).
Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
Install the antenna mast. Refer to FIXED ANTENNA MAST REPLACEMENT in Entertainment.

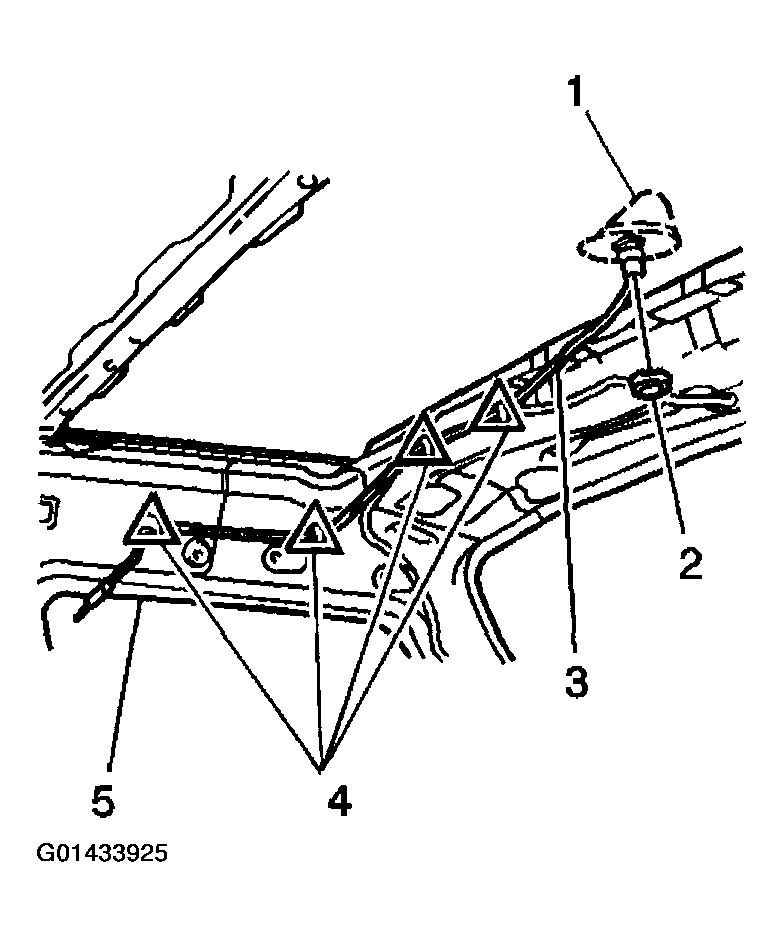

Fig 3: Securing Antenna Cable To Roof With Retainers
Courtesy of GENERAL MOTORS CORP.
