Liftgate Module (LGM) Connector End View - C2

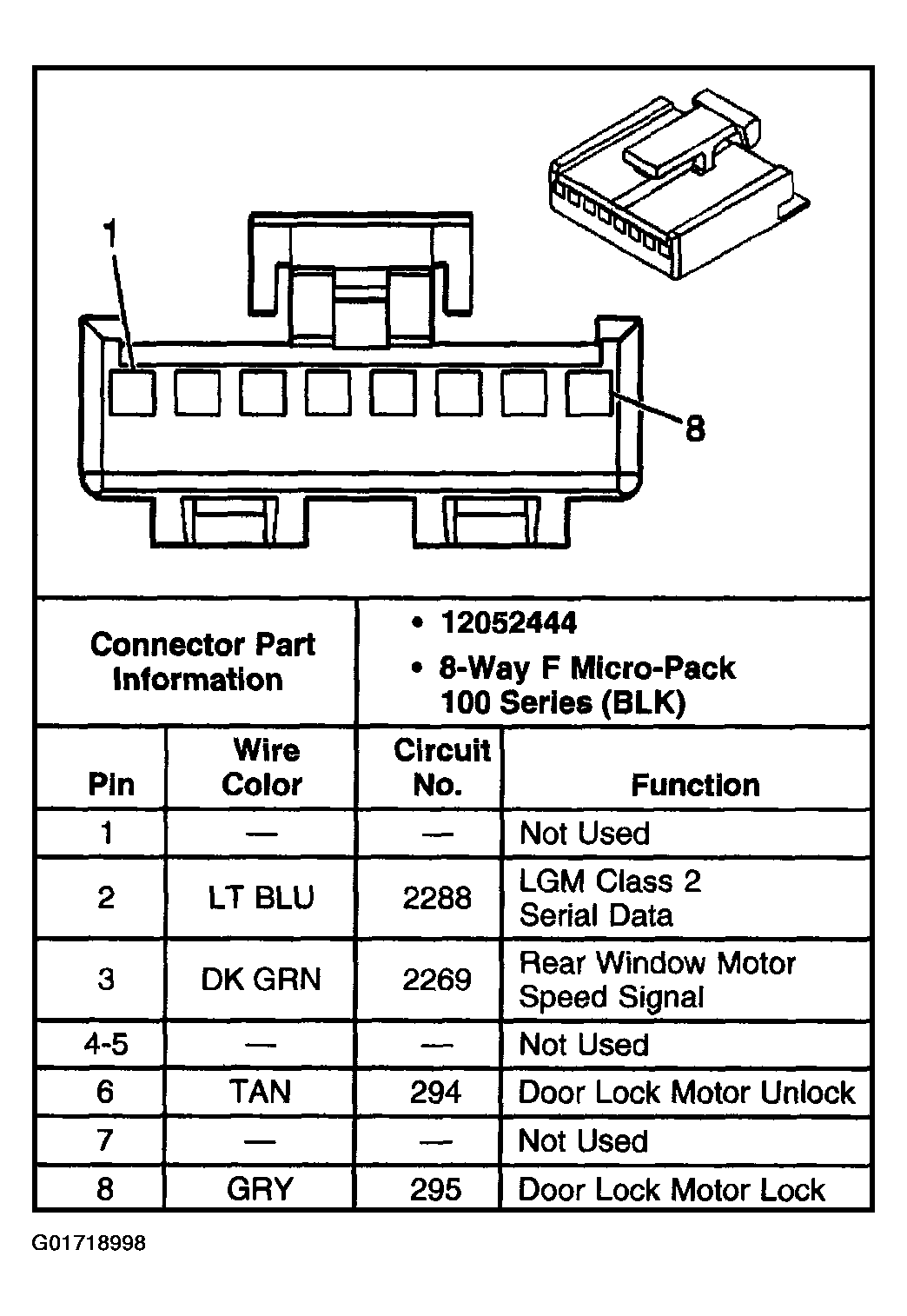

Fig 1: Liftgate Module (LGM) - C2
G01718998Courtesy of GENERAL MOTORS CORP.
