Schematic and Routing Diagrams

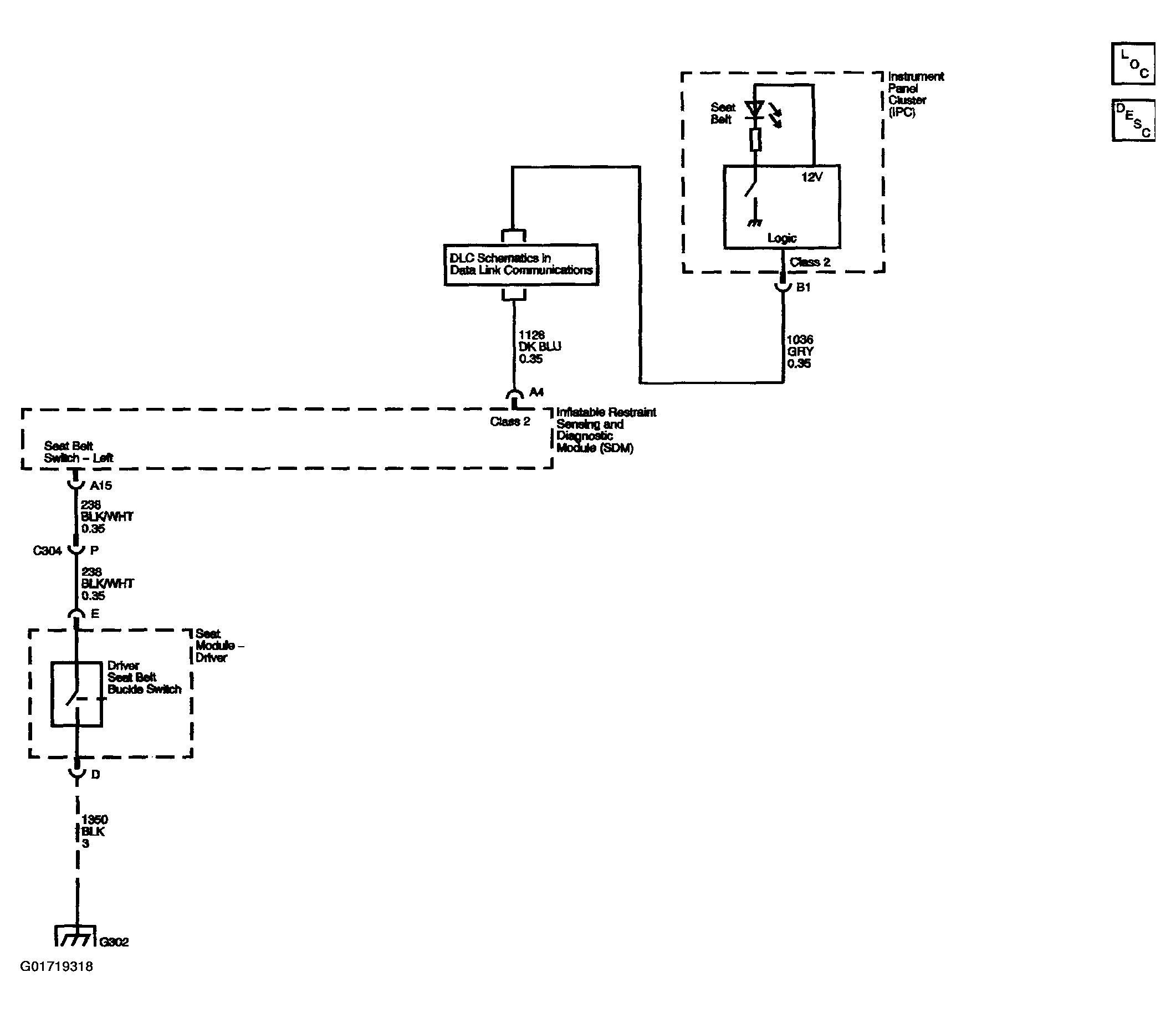

Fig 1: Seat Belt Schematics
G01719318Courtesy of GENERAL MOTORS CORP.
