Floor Console Storage Bin: Installation

Install the storage bin to the console. Install the 6 screws that retain the storage bin to the console. Tighten the screws to 22 INCH lbs. (2.5 N.m). See Fig 1 . Close the storage bin cover.

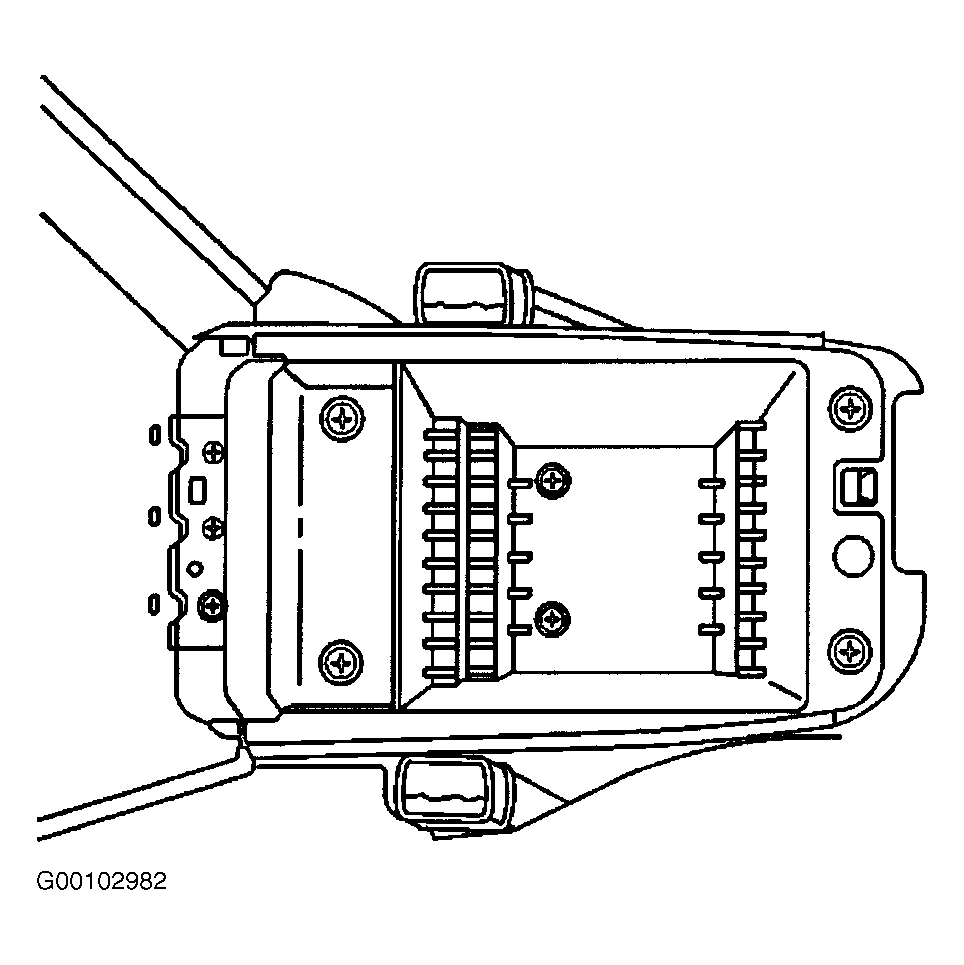

Fig 1: Removing & Installing Storage Bin

Courtesy of GENERAL MOTORS CORP.
