Power Window Schematics

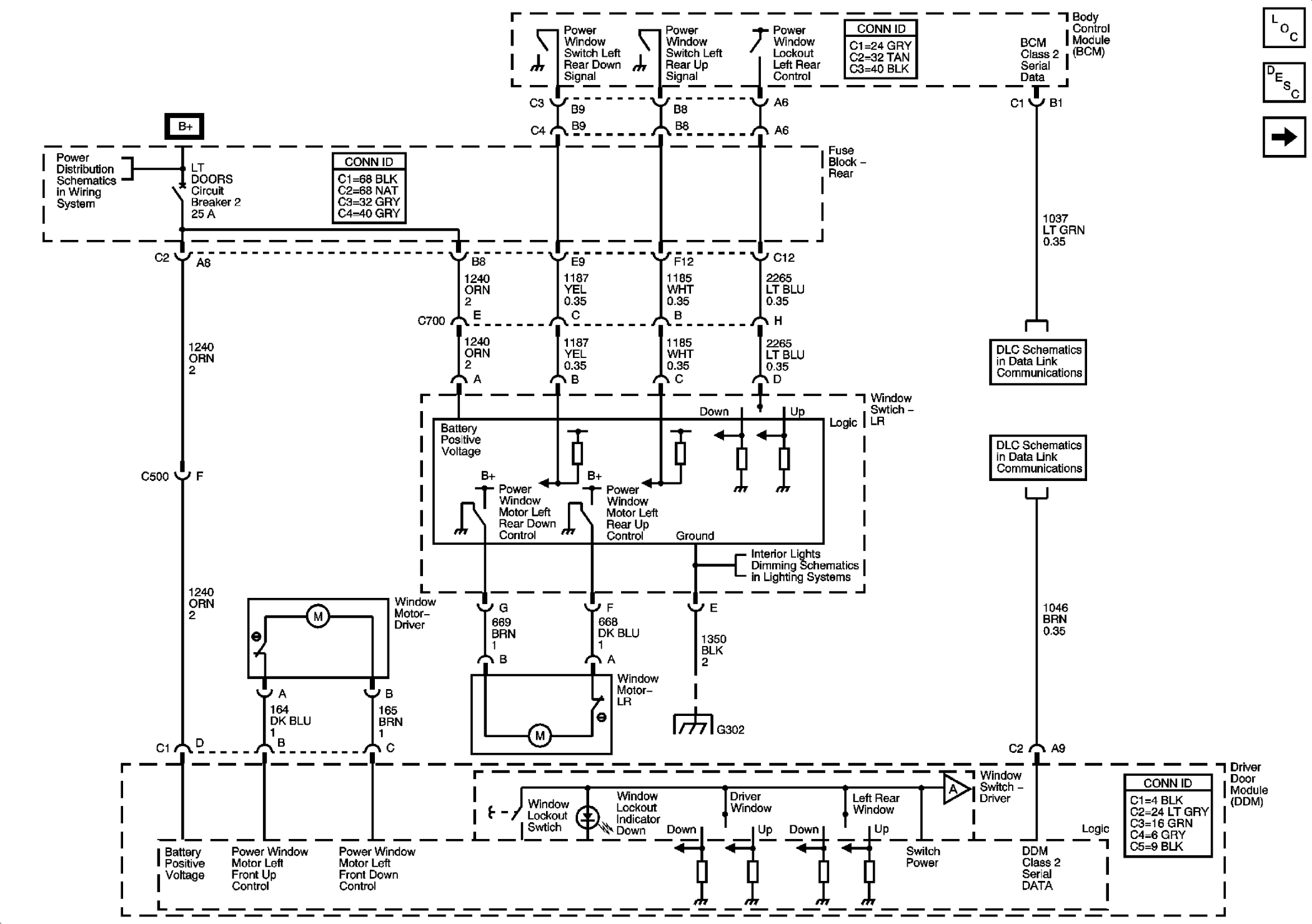

Fig 1: Power Window Schematics Left
Courtesy of GENERAL MOTORS CORP.

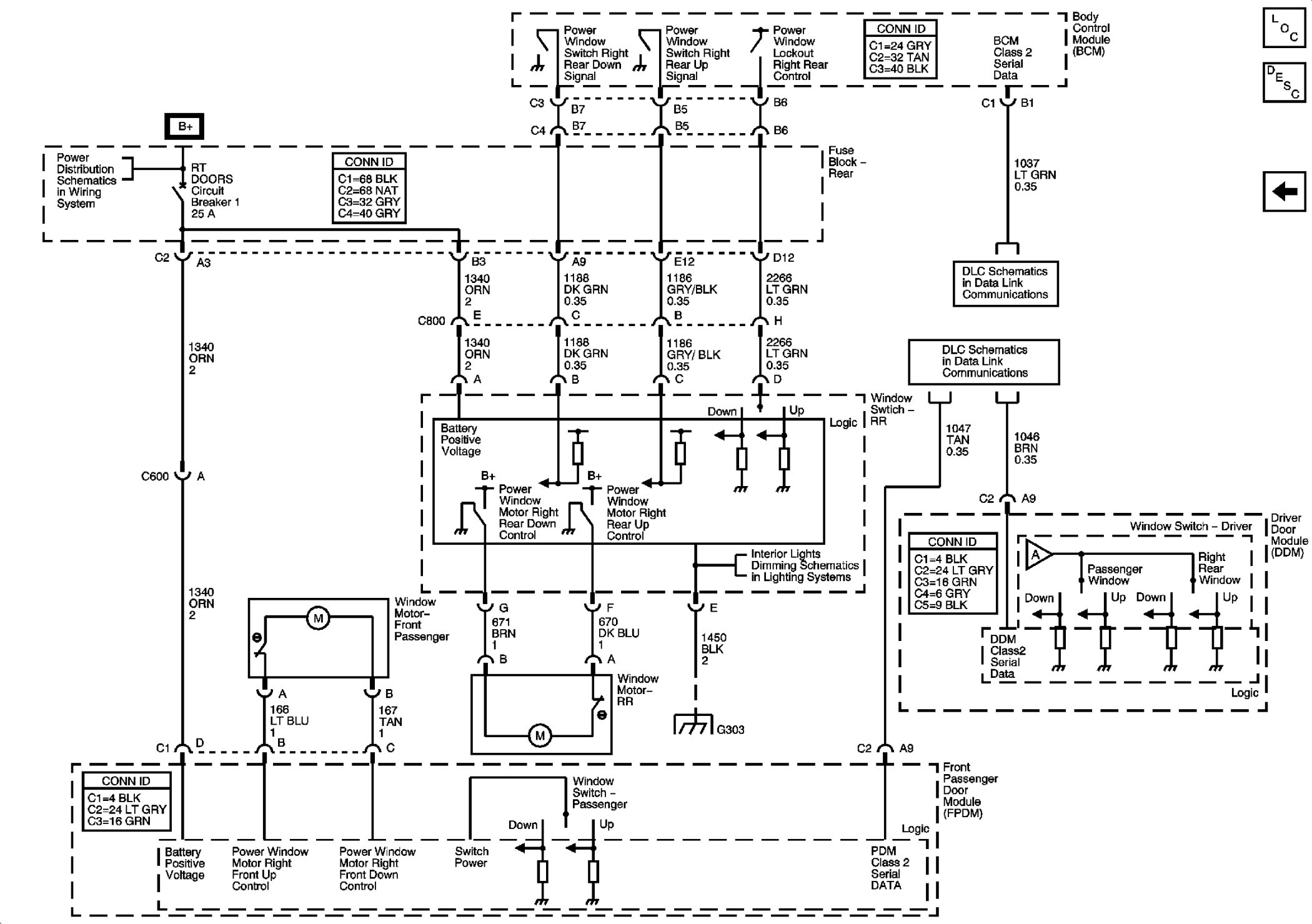

Fig 2: Power Window Schematics Right
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
