Cellular Communication Component Views

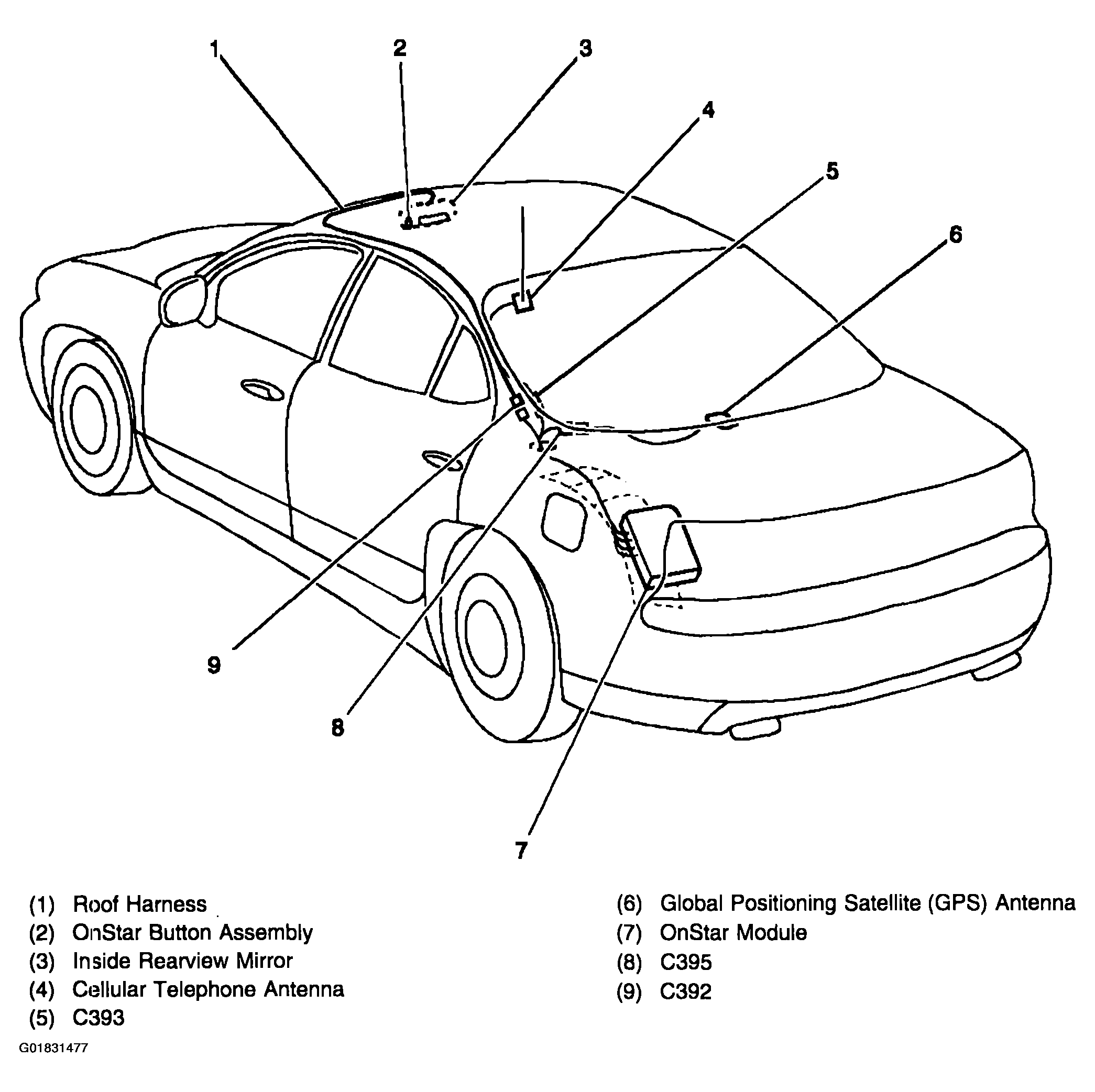

Fig 1: OnStar Subsystem Component View

Courtesy of GENERAL MOTORS CORP.

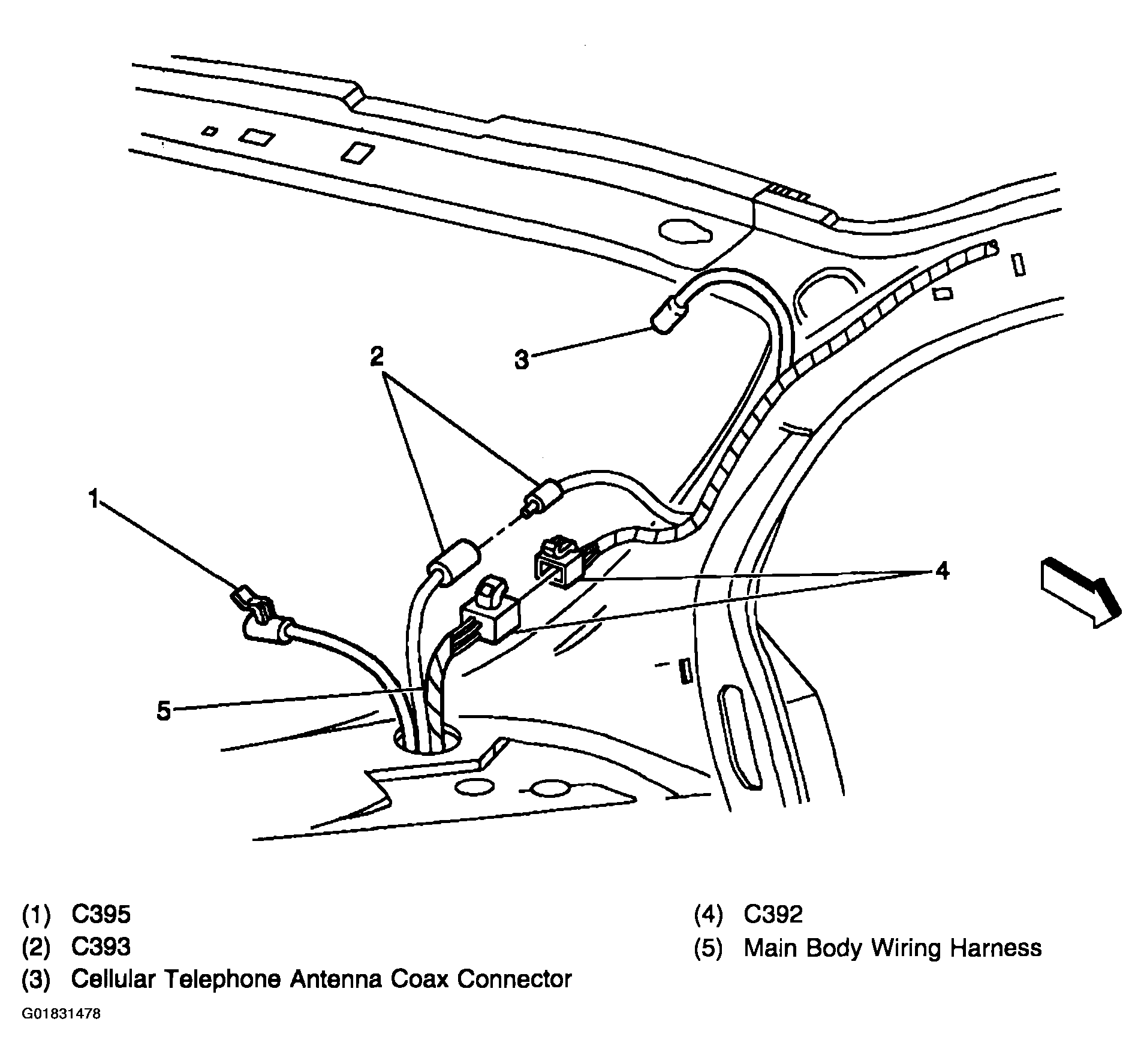

Fig 2: Above Left Side Of Package Shelf Component View

Courtesy of GENERAL MOTORS CORP.

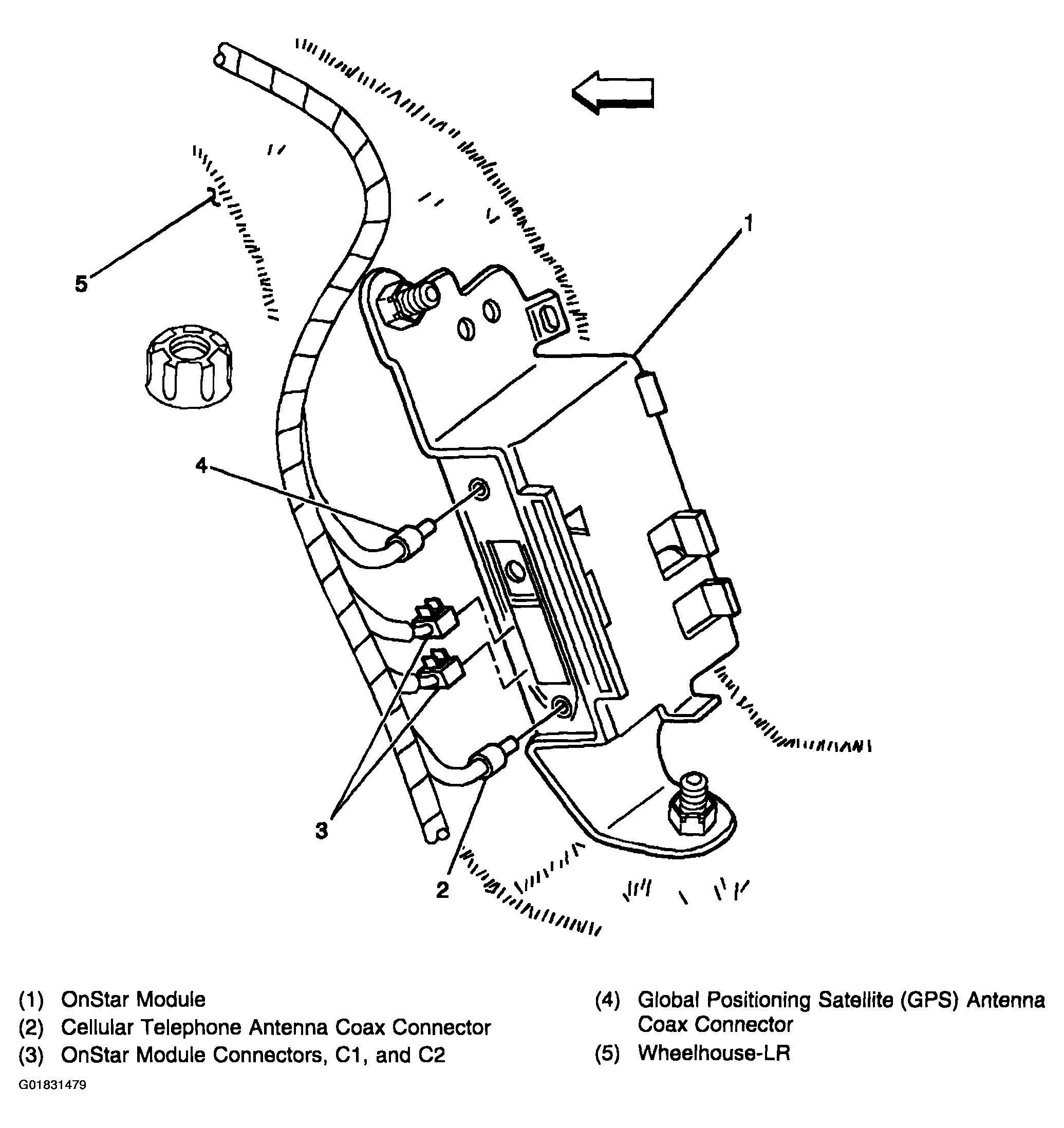

Fig 3: Rear Of Left Rear Wheelhouse Component View

Courtesy of GENERAL MOTORS CORP.
