Cellular Communication Connector End Views

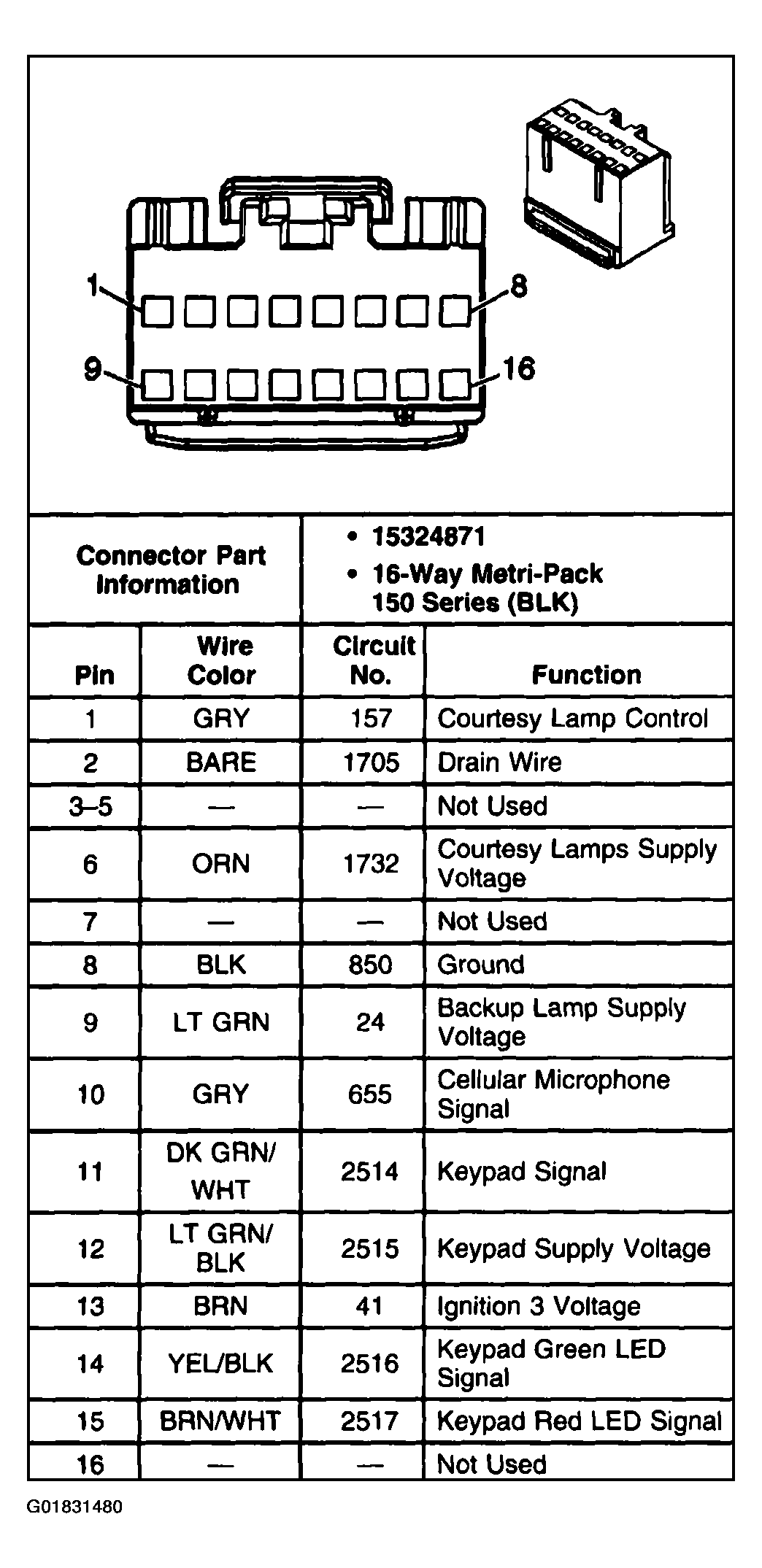

Fig 1: Inside Rearview Mirror (W/UE1) Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 2: OnStar Module C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

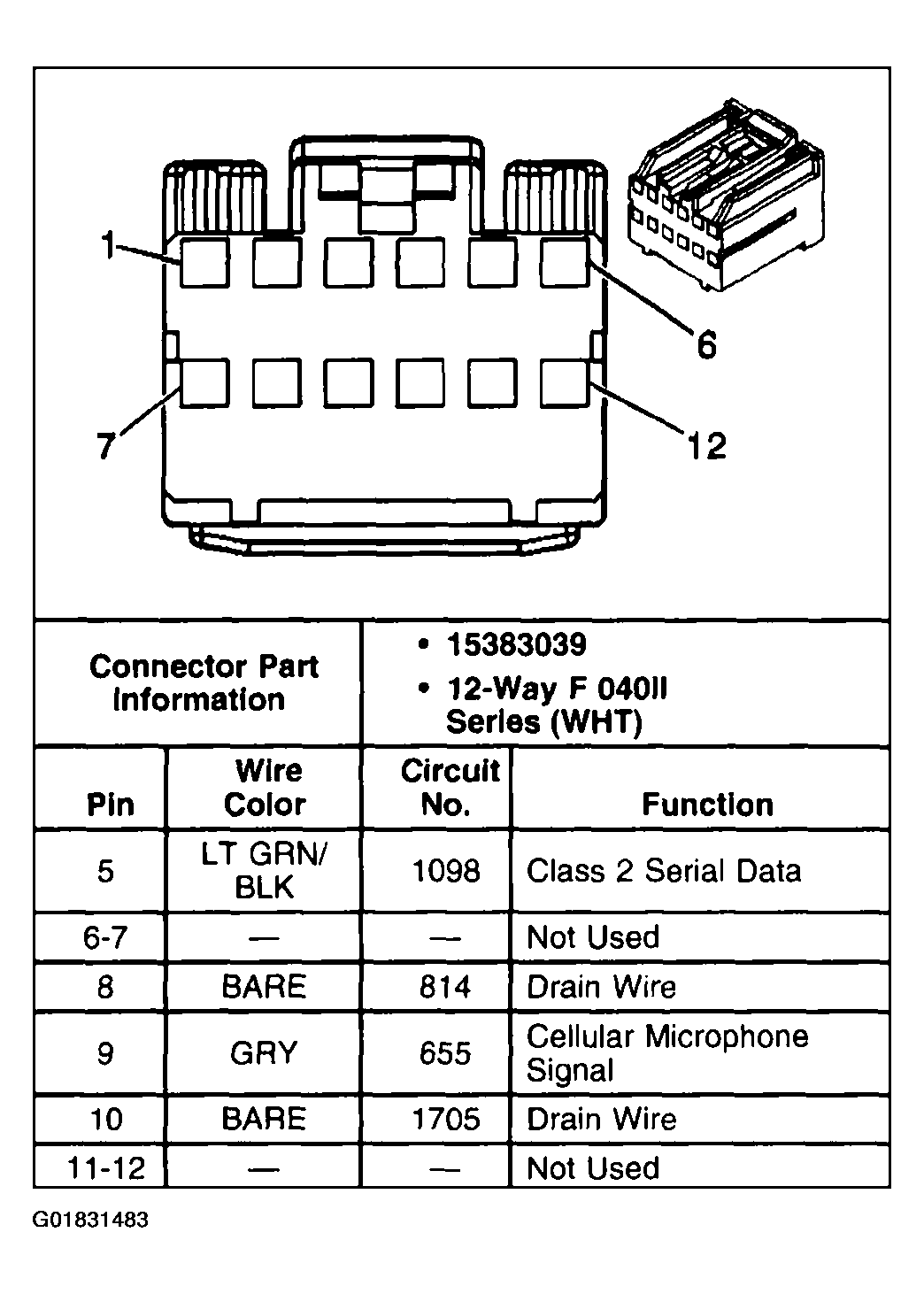

Fig 3: OnStar Module C2 (1 Of 2) Connector End View
Courtesy of GENERAL MOTORS CORP.

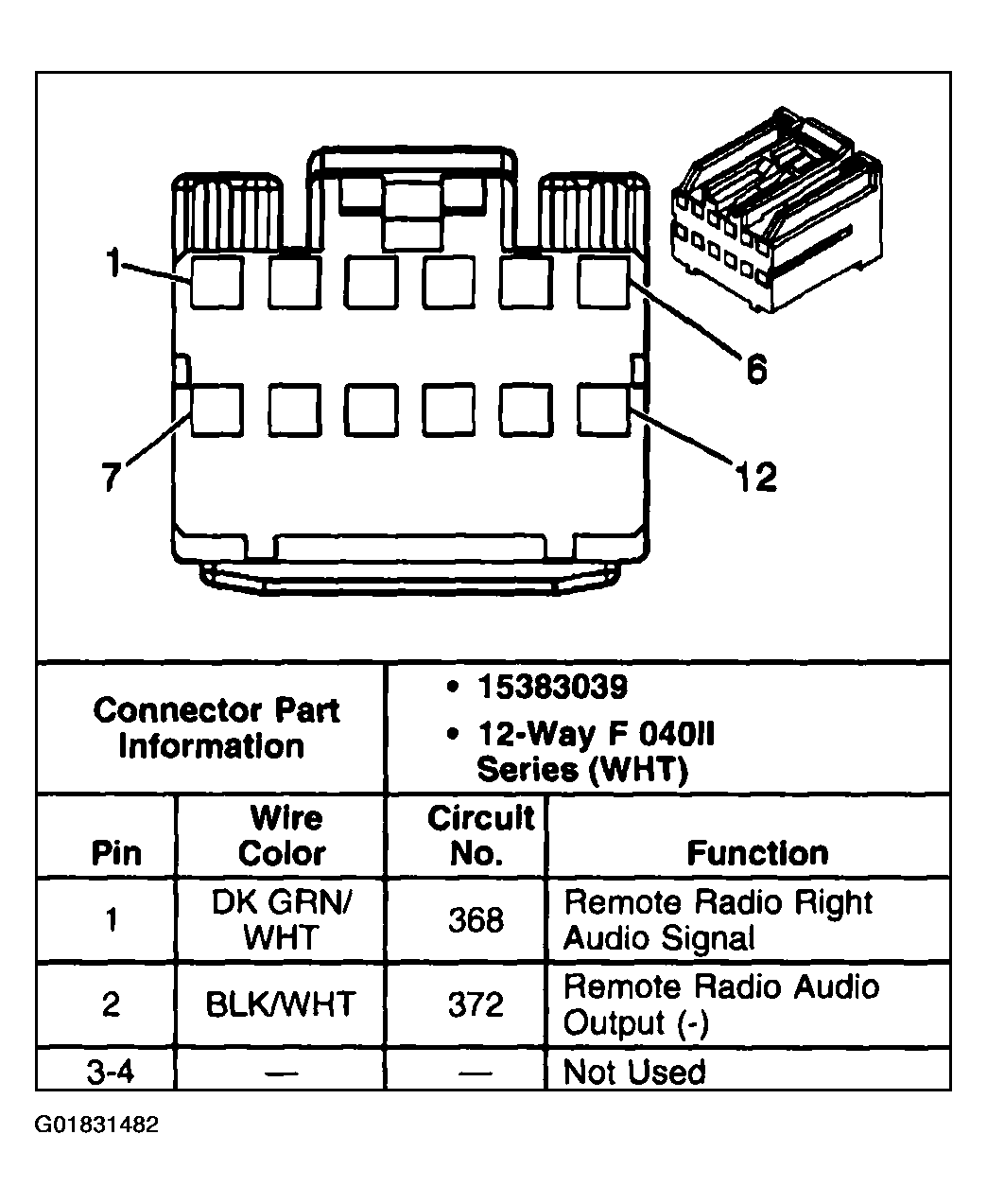

Fig 4: OnStar Module C2 (2 Of 2) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
