Power Door Systems Component Views

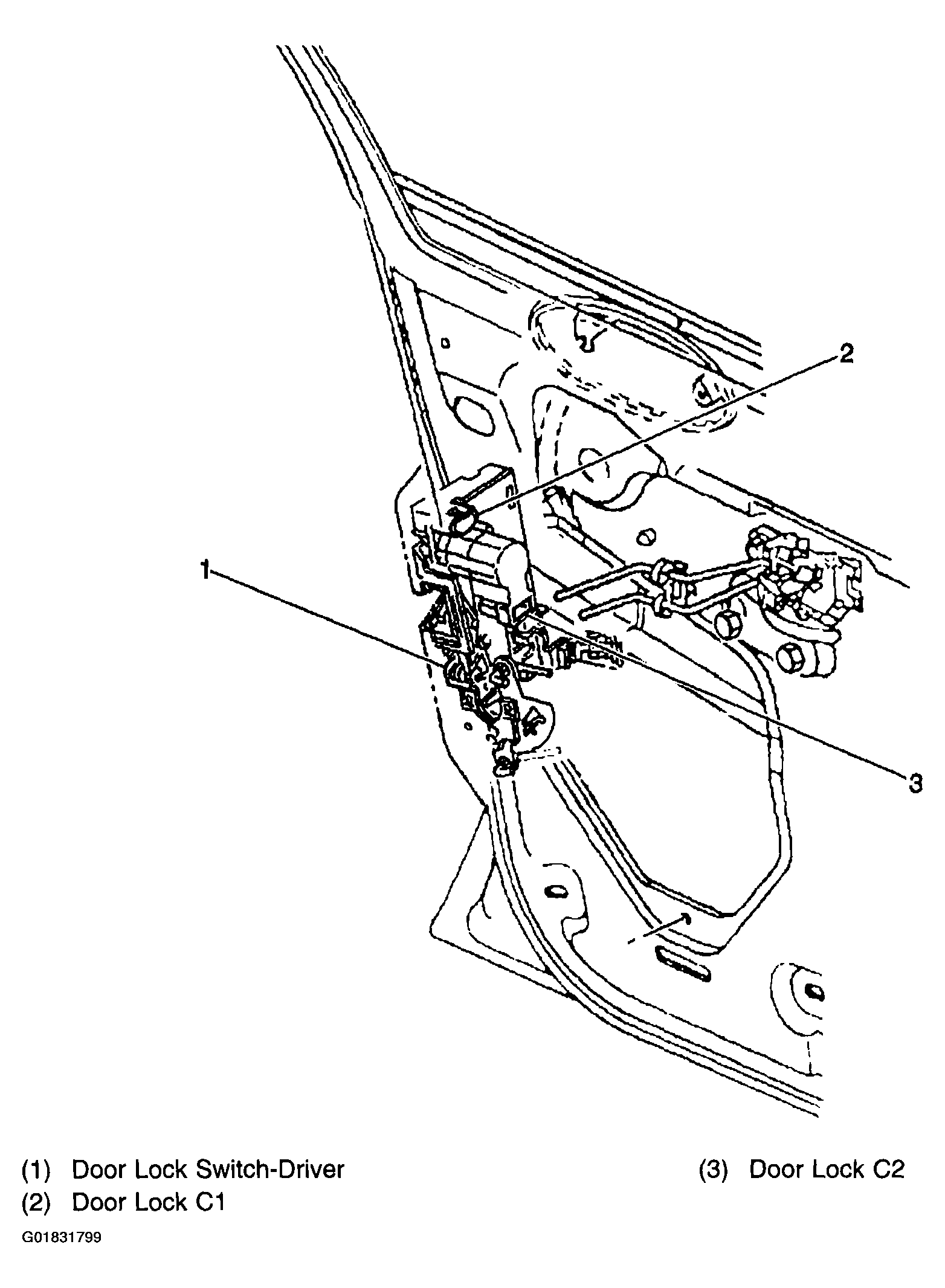

Fig 1: Rear Edge Of Driver Door Component View
G01831799Courtesy of GENERAL MOTORS CORP.

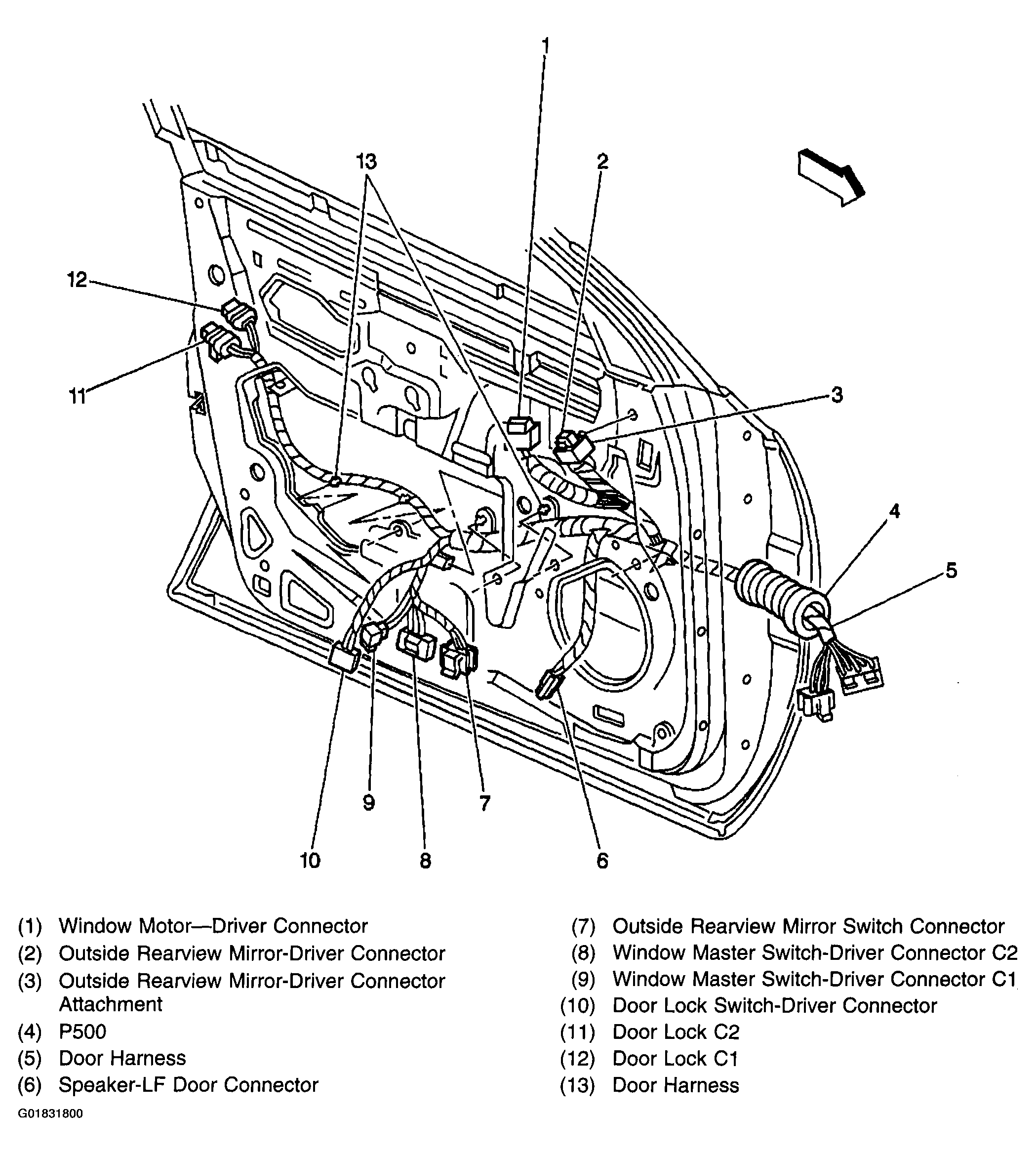

Fig 2: Drivers Door Component View
G01831800Courtesy of GENERAL MOTORS CORP.

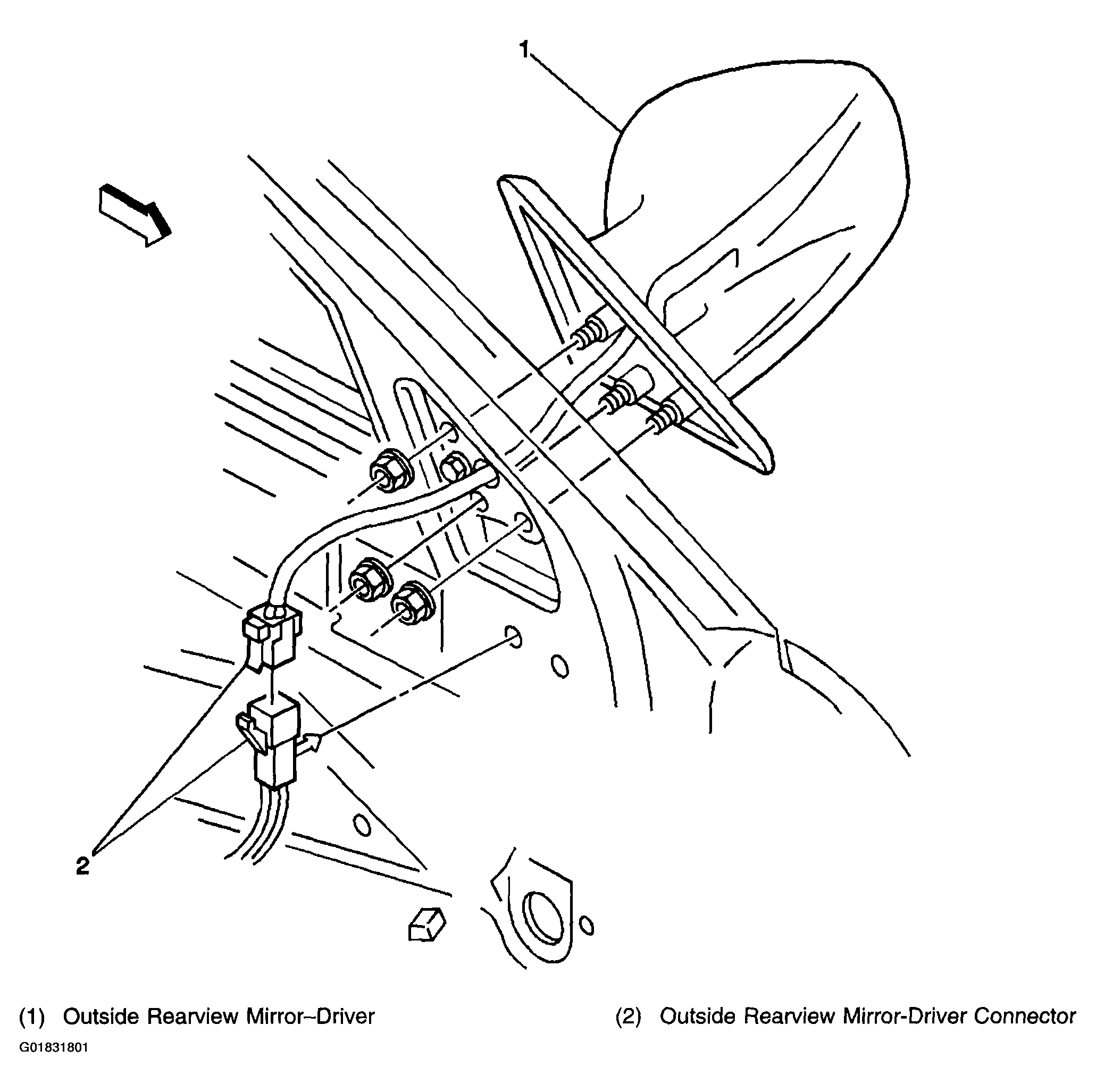

Fig 3: Front Of Drivers Door Component View
G01831801Courtesy of GENERAL MOTORS CORP.

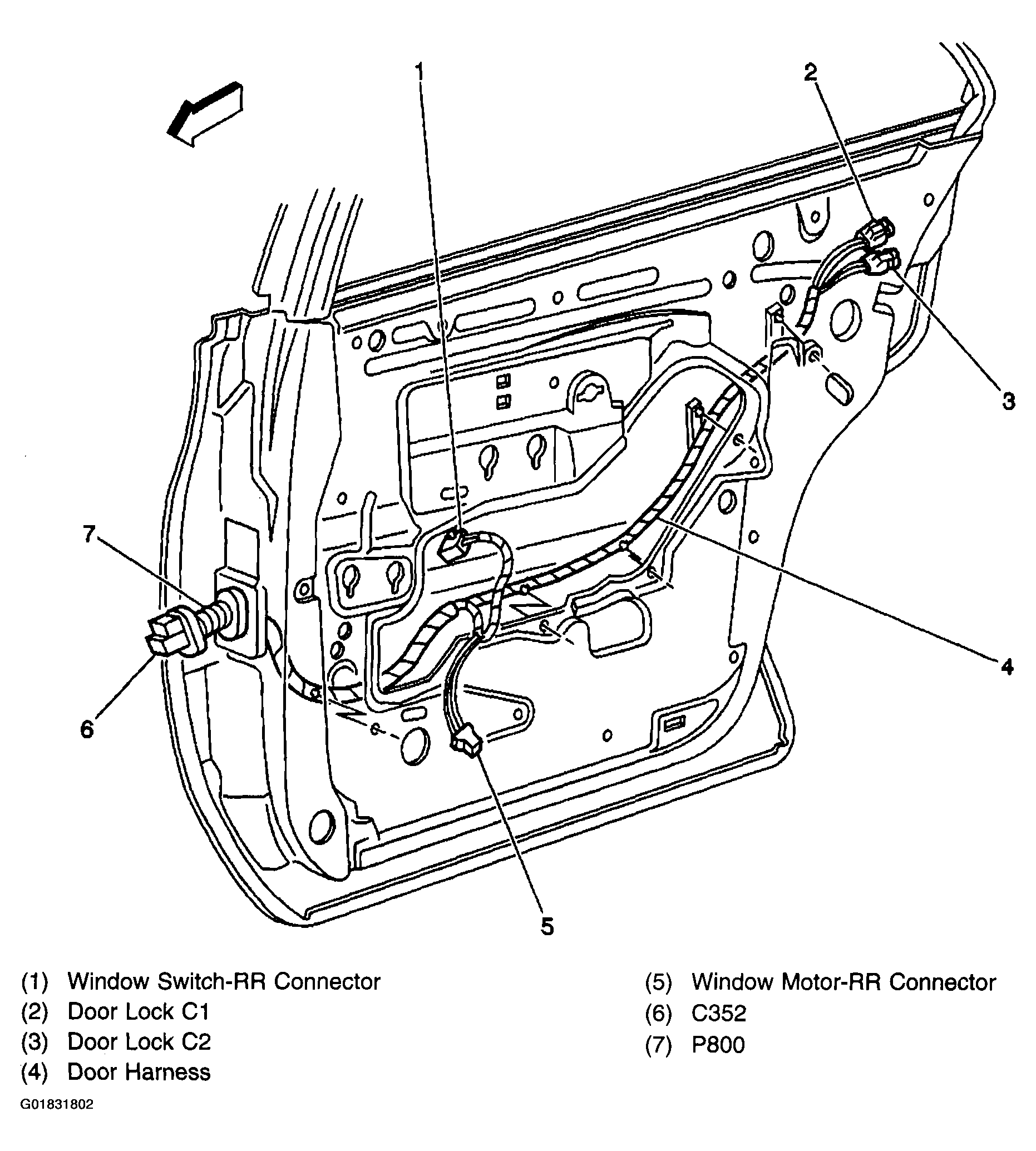

Fig 4: Right Rear Door Component View
G01831802Courtesy of GENERAL MOTORS CORP.

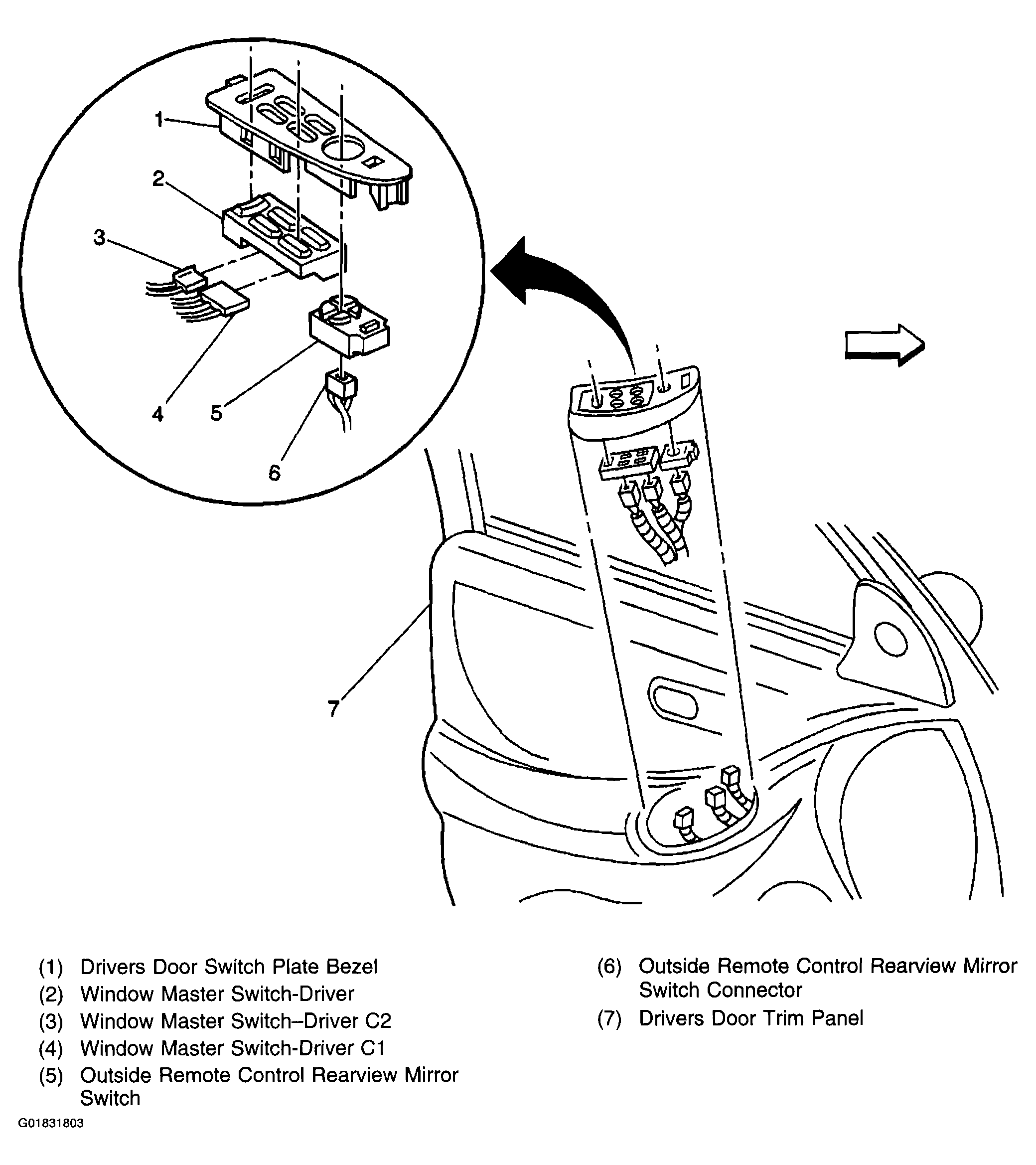

Fig 5: Drivers Door Trim Component View
G01831803Courtesy of GENERAL MOTORS CORP.
