Removal Procedure

Open the door.
Using J 36604 , remove the door hinge spring from the door hinge.
Remove the door hinge spring from the vehicle.

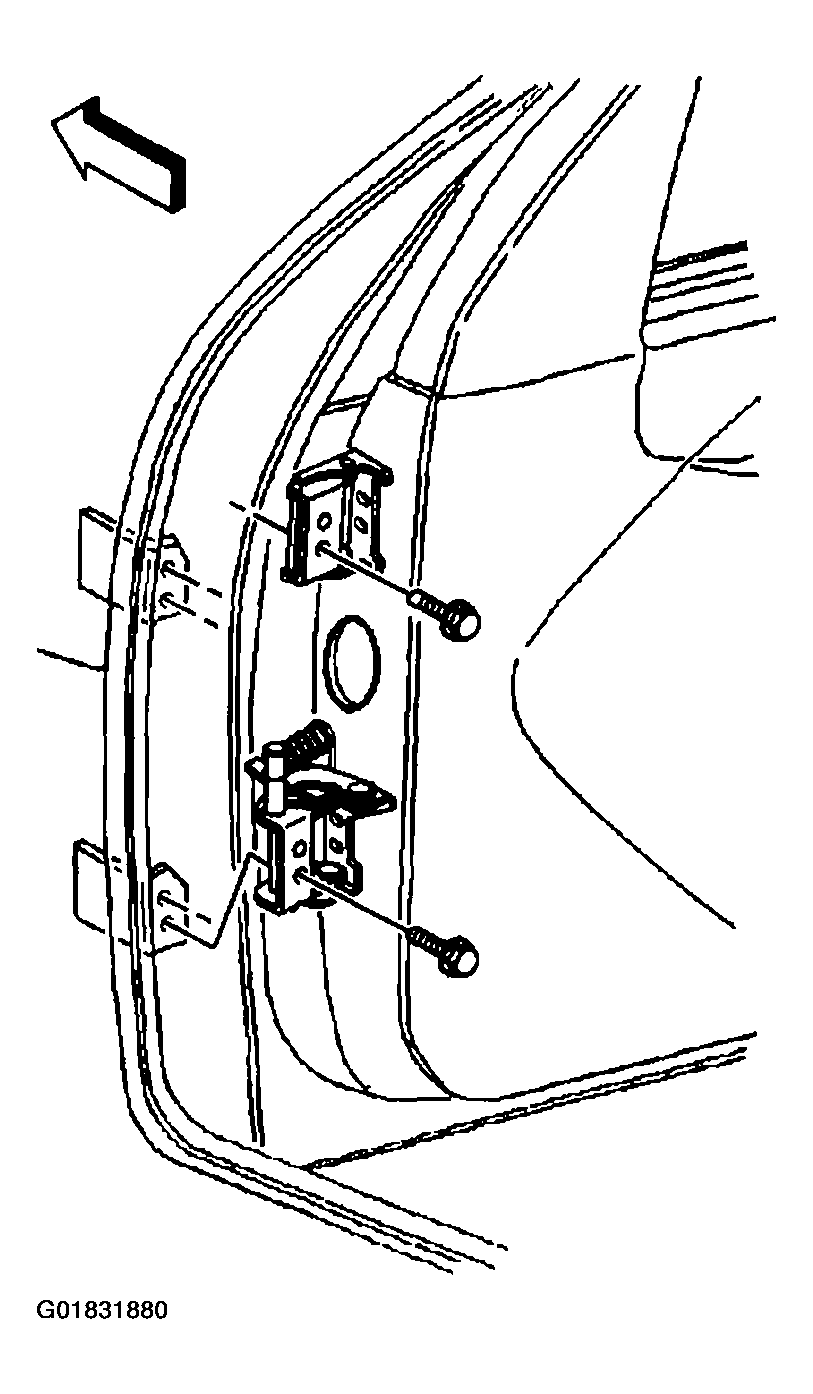

Fig 1: Removing Door Hinge Spring From Door Hinge
Courtesy of GENERAL MOTORS CORP.
