Retained Accessory Power (RAP) Connector End Views

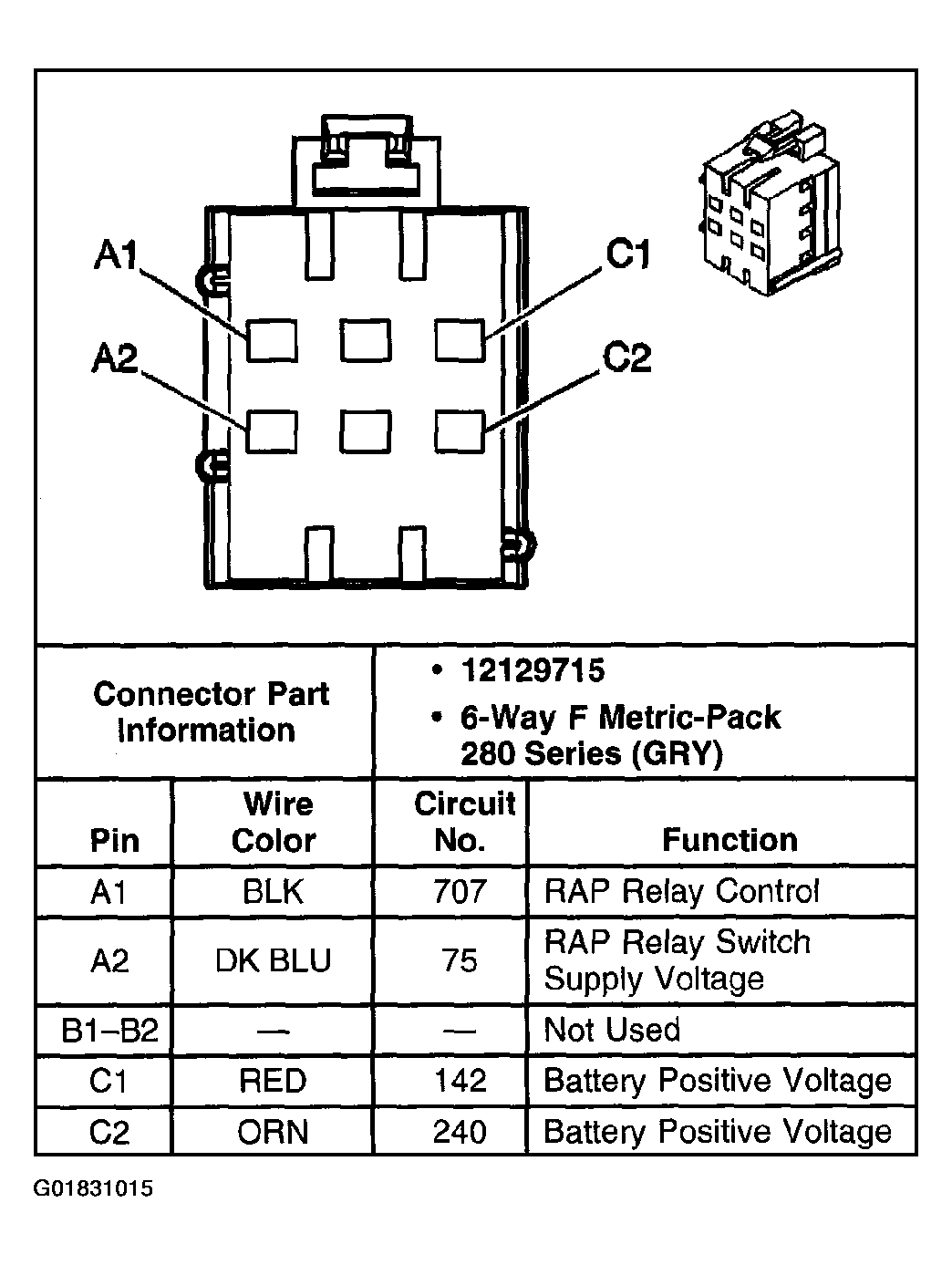

Fig 1: Retained Accessory Power (RAP) Relay Connector End View
G01831015Courtesy of GENERAL MOTORS CORP.
