Scan Tool Output Controls

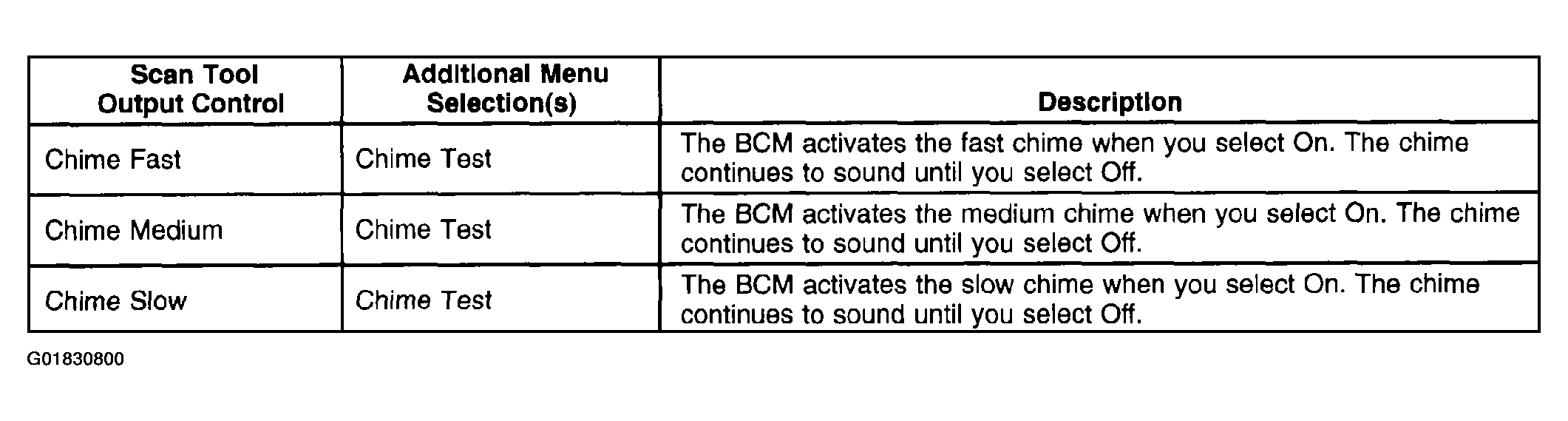

Fig 1: BCM Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.

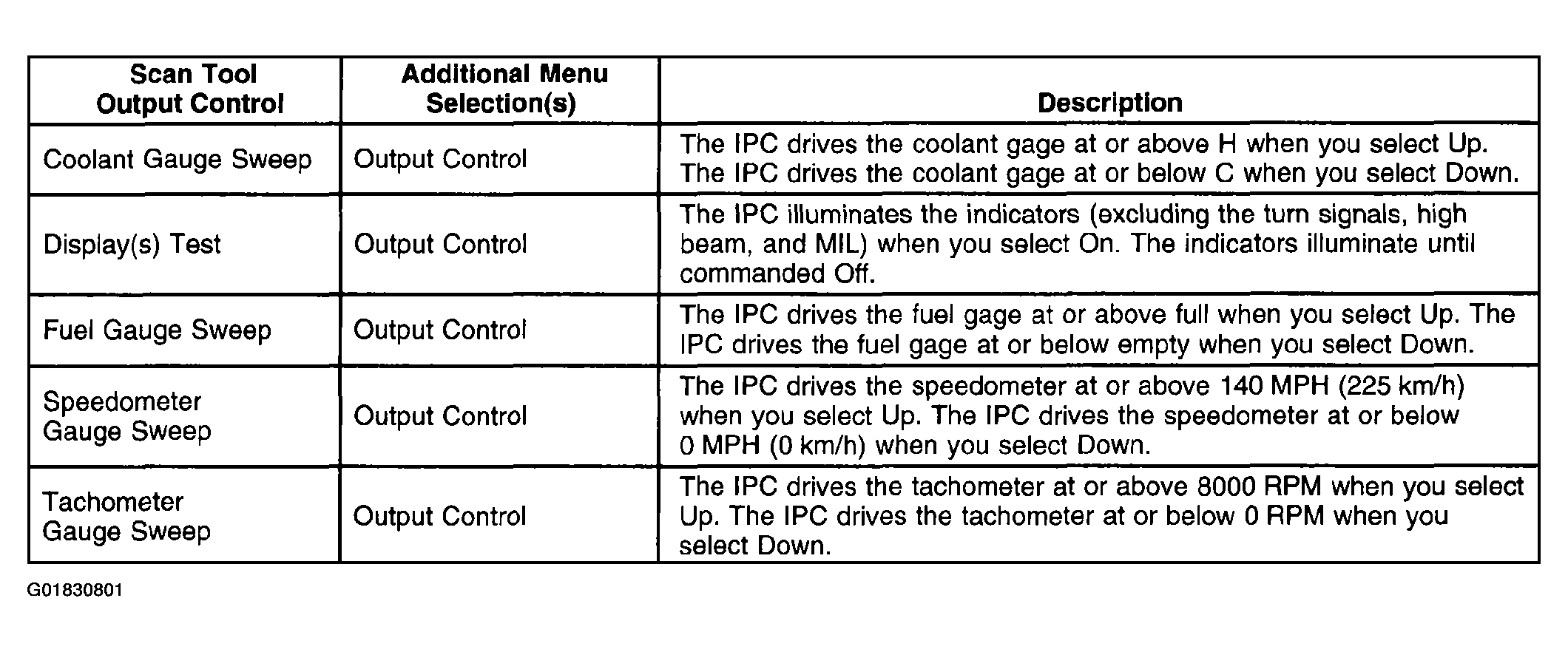

Fig 2: IPC Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.

Fig 3: PCM Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.
