Installation Procedure

  1. Install the I/P lamp dimmer switch, the fog lamp switch, and the rear compartment lid release switch to the switch bezel, as required.
  2. Connect the electrical connectors.
  3. Align the switch bezel to the I/P trim pad.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the switch bezel screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  5. Install the I/P steering column opening filler. Refer to Steering Column Filler Replacement .

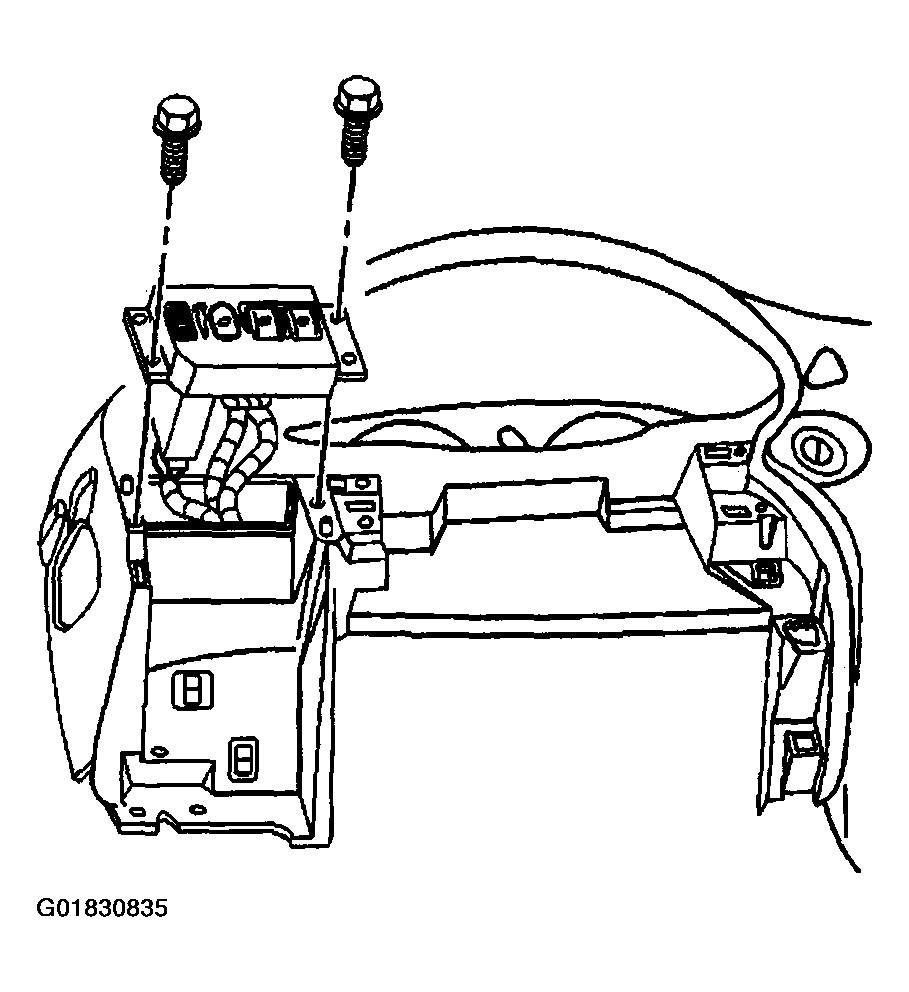

    Fig 1: Installing (I/P) Steering Column Filler, Electrical Connectors & Screws
    G01830835Courtesy of GENERAL MOTORS CORP.
