Installation Procedure
- Recode the ignition switch lock cylinder, if necessary.
.
- Insert the key and turn the ignition switch lock cylinder to the ON position.

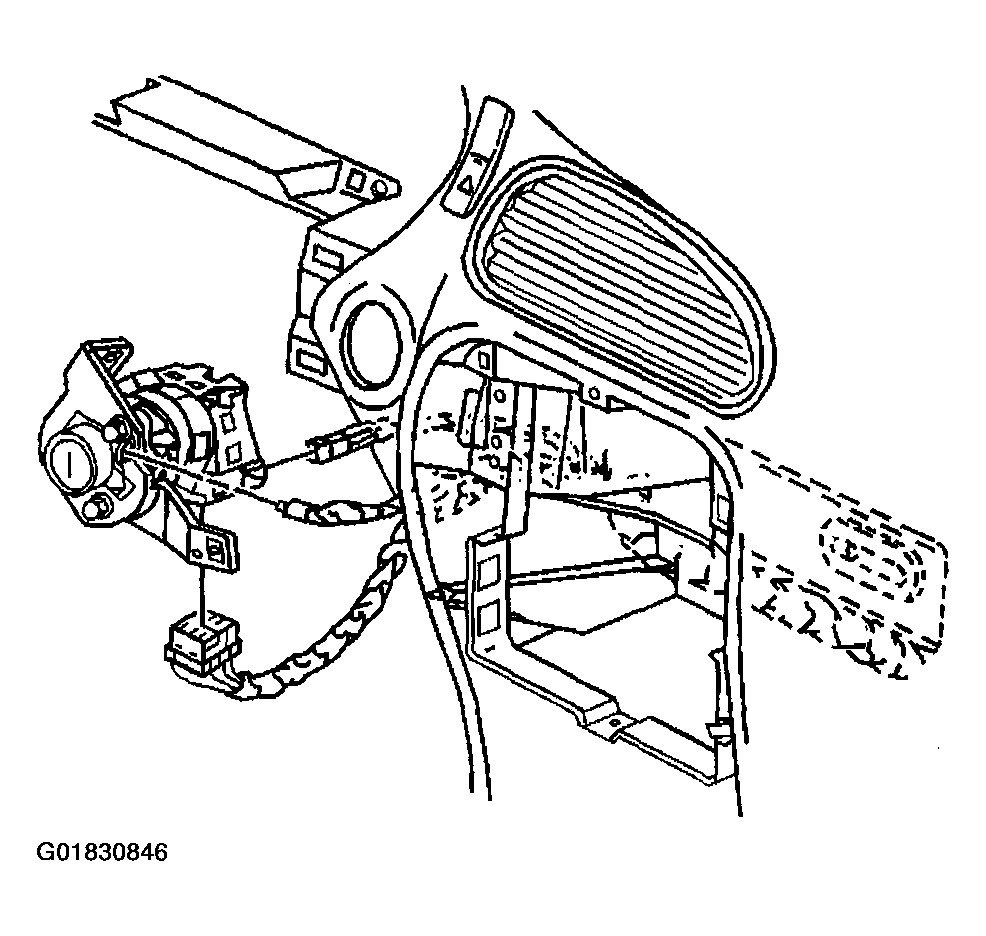

- Align the ignition switch lock cylinder to the ignition switch, then press into place.
- Turn the key to the OFF position and remove the key.
- Install the radio. Refer to RADIO REPLACEMENT
.
- Align the ignition switch bezel slots to the tabs on the ignition switch lock cylinder and press into place until fully seated.
- Connect negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE
.
- Perform the BCM theft deterrent relearn procedure, if the ignition switch lock cylinder was replaced. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION
.
Courtesy of GENERAL MOTORS CORP.
