Ignition Module Installation - Left

Press the spark plug boots onto the ignition coil assembly.

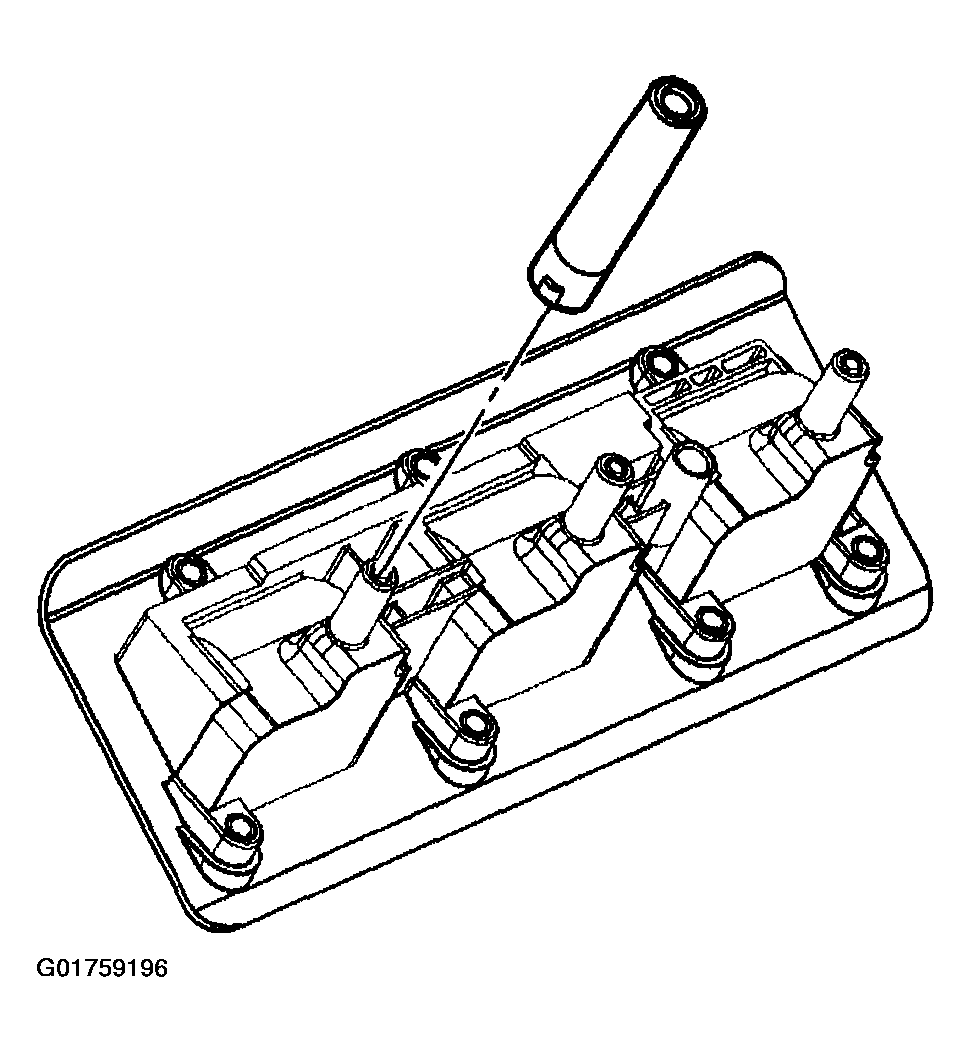

Fig 1: Installing Spark Plug Boots Onto Ignition Coil Assembly (Left)
Lower the ignition coil assembly into the camshaft cover valley. DO NOT damage the ignition coil assembly's perimeter seal.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the ignition coil assembly bolts.
Tighten

Tighten the ignition coil assembly bolts to 9 N.m (80 lb in).

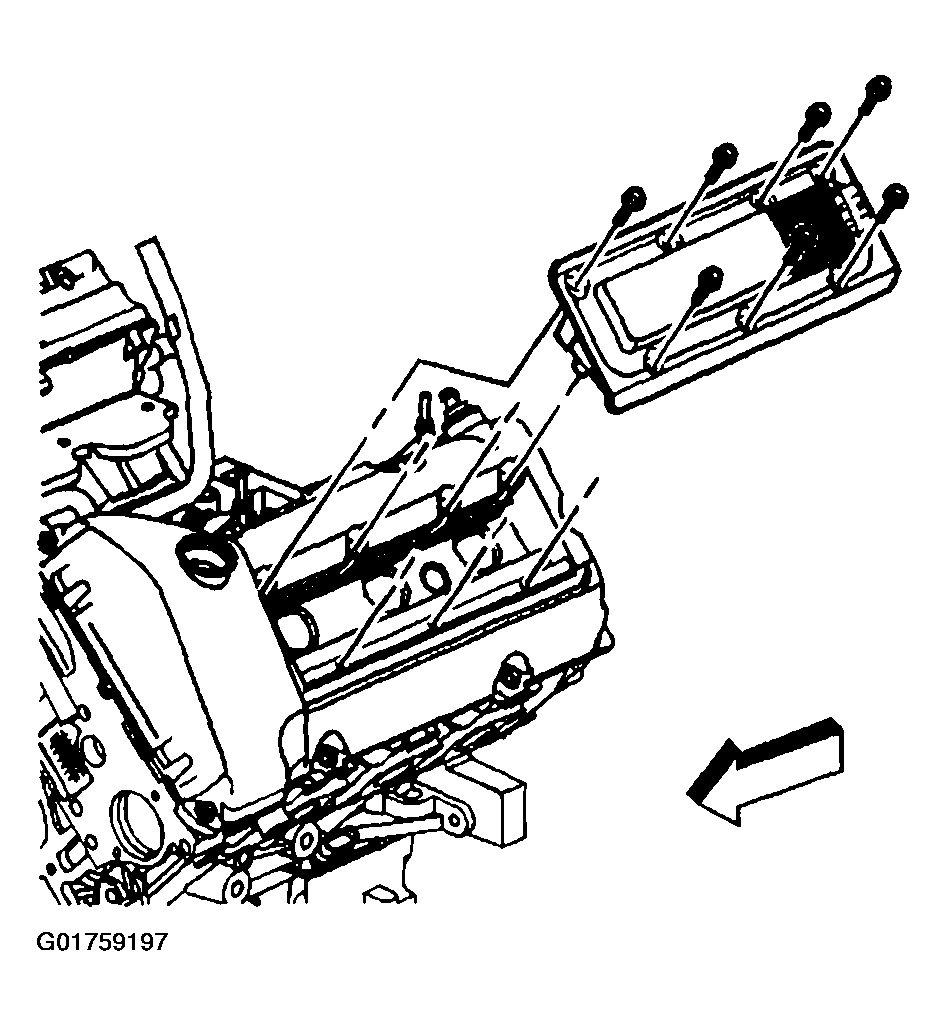

Fig 2: Installing Ignition Coil Assembly And Bolts (Left)
