Coolant Level Switch Connector End View
Coolant Level Switch Connector End View

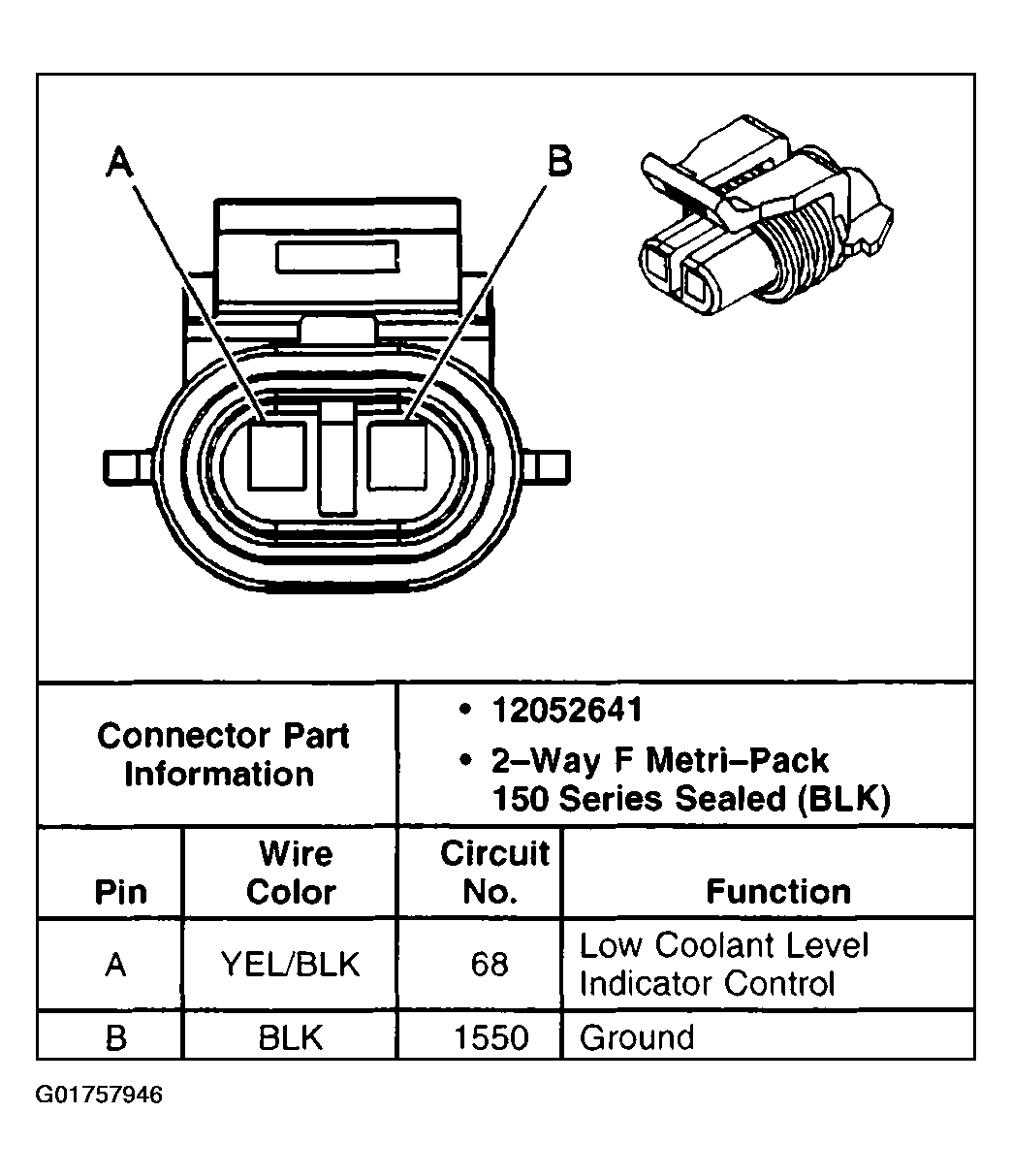

Fig 1: Coolant Level Switch
Courtesy of GENERAL MOTORS CORP.

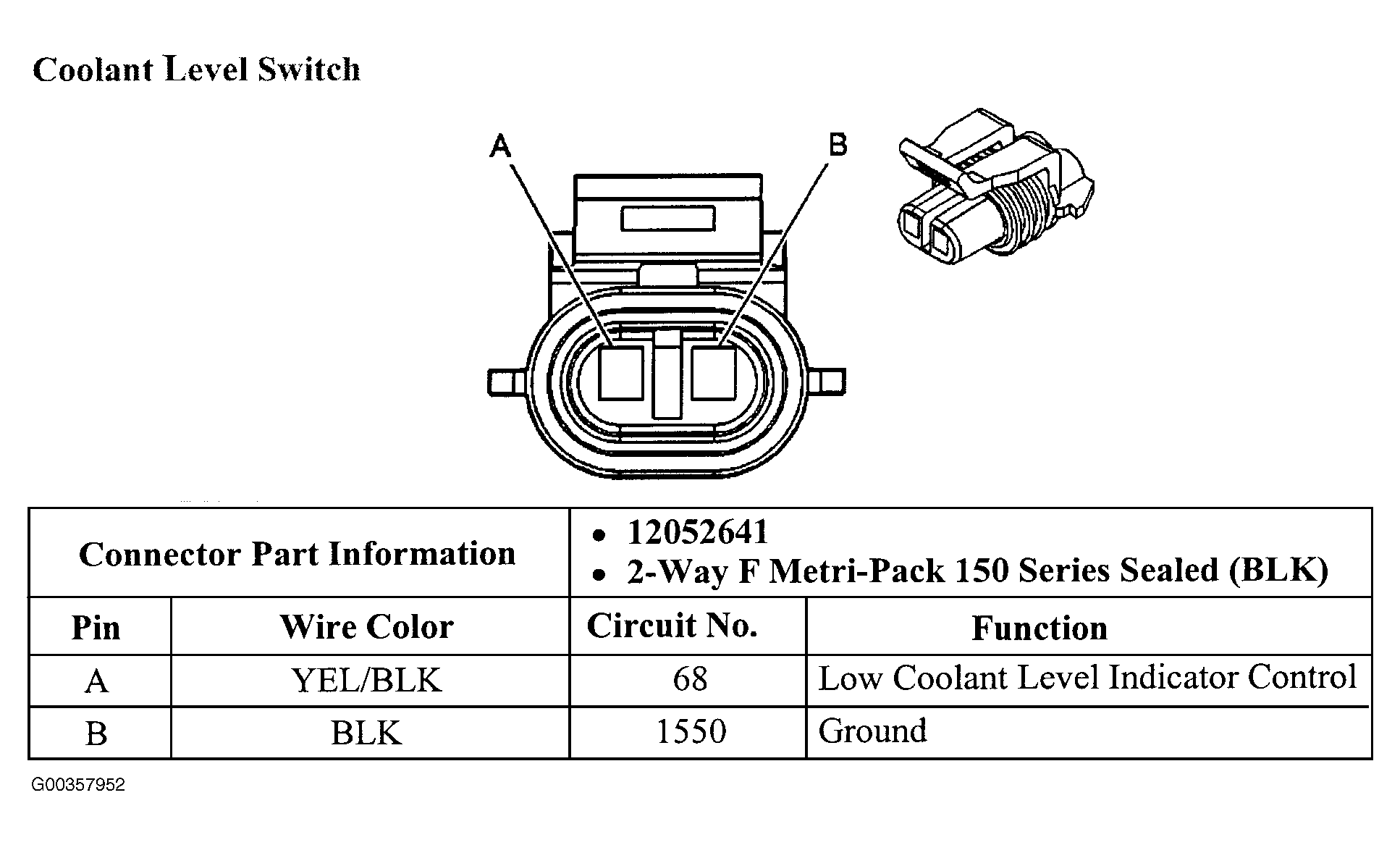

Fig 1: Coolant Level Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
