Cooling Fan Left Connector End View
Cooling Fan Left Connector End View

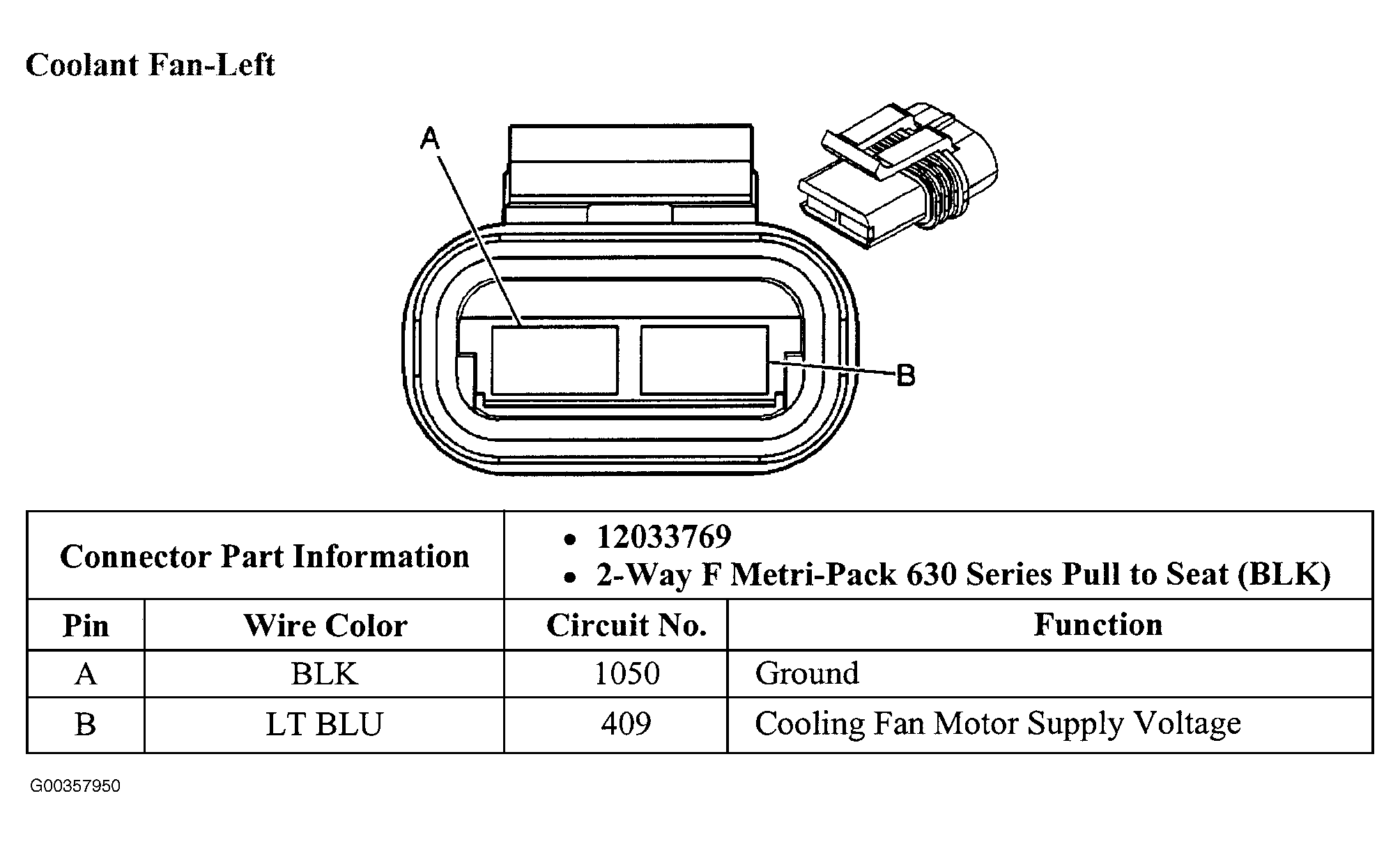

Fig 1: Cooling Fan Left
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
