HVAC Control Connector End View
HVAC Control Connector End View

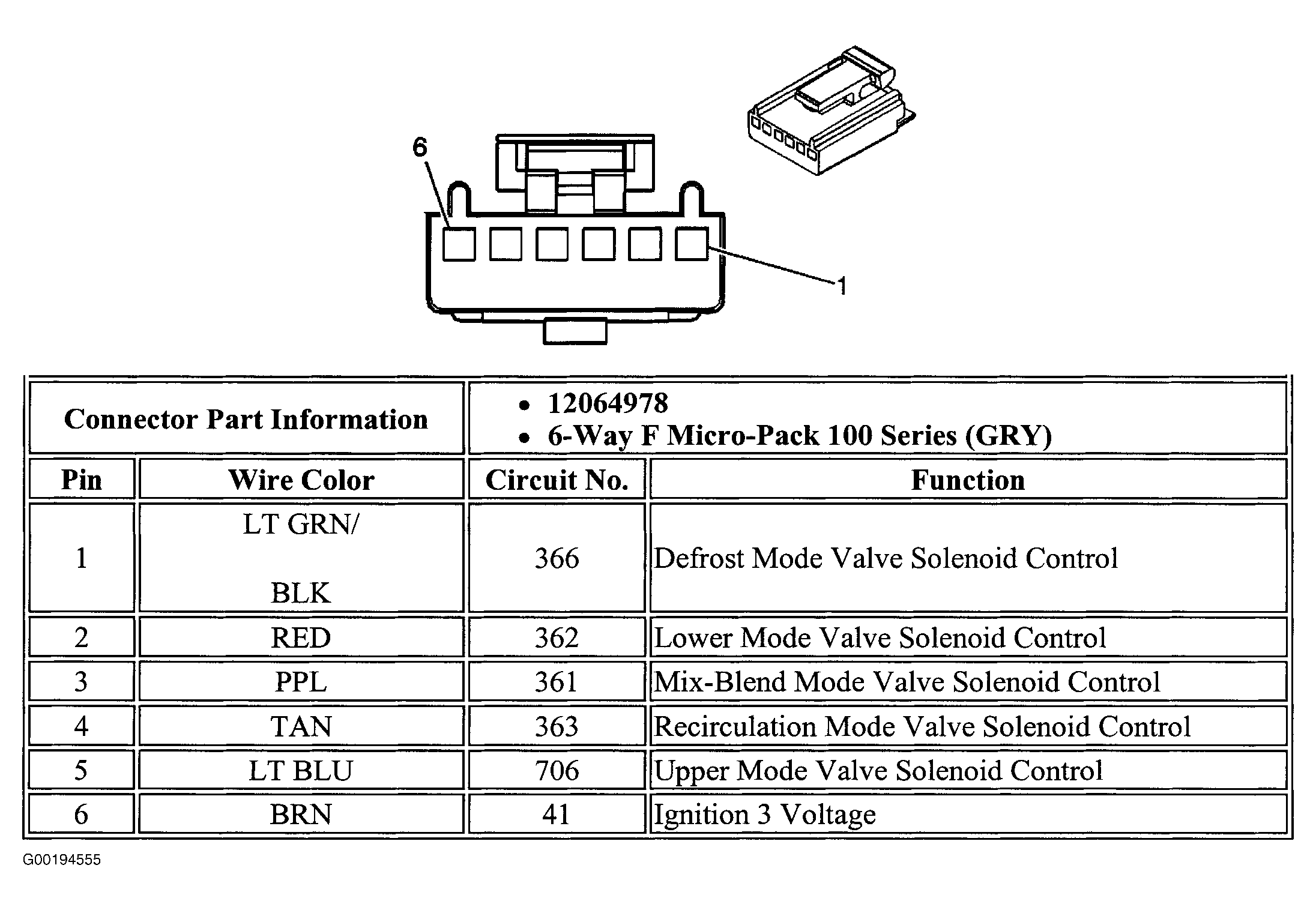

Fig 1: HVAC Control
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
