Heated Seat Control Module Connector End View - Driver C1

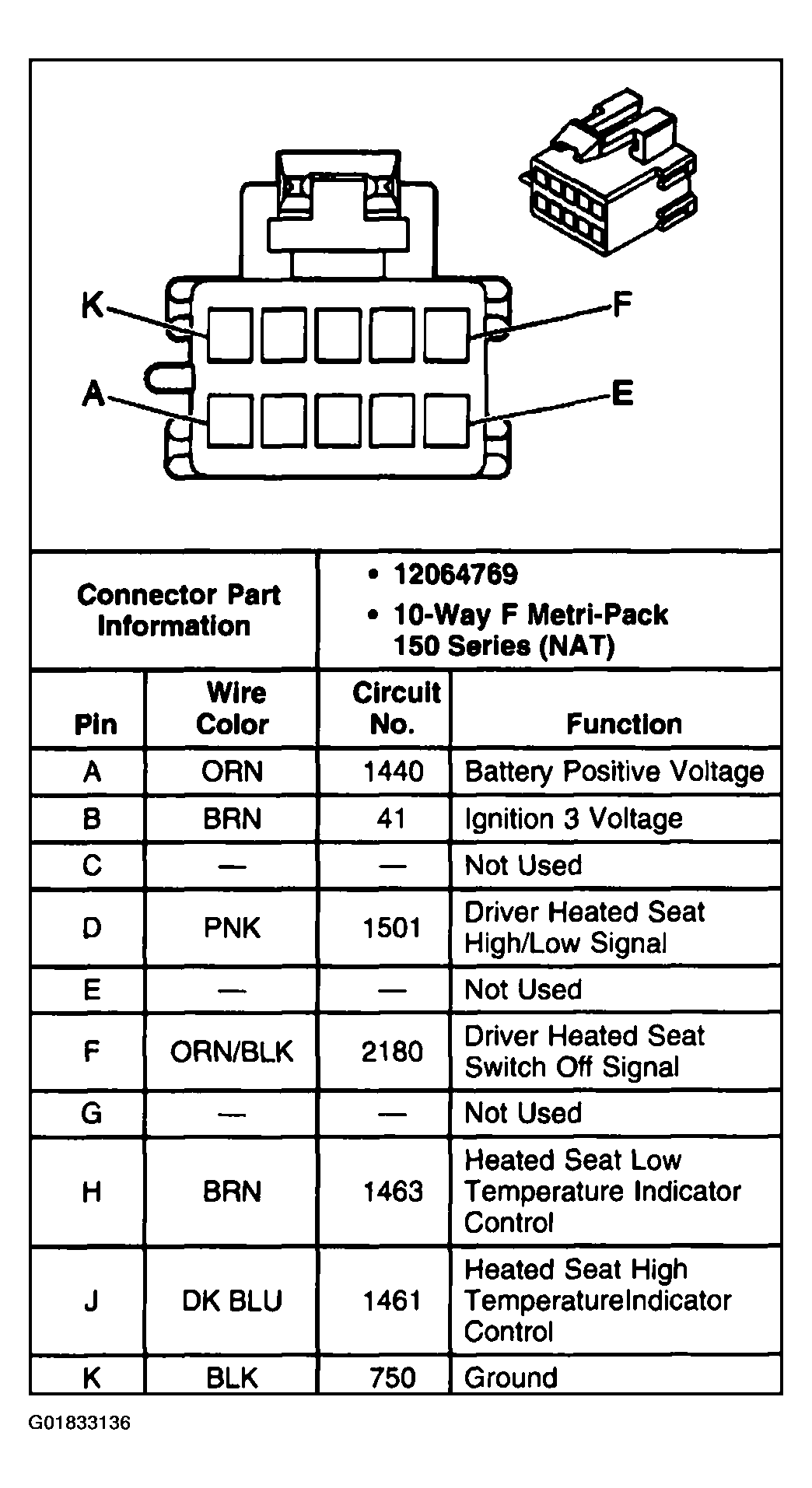

Fig 1: Heated Seat Control Module - Driver C1
G01833136Courtesy of GENERAL MOTORS CORP.
