Heated Seat Control Module Connector End View - Driver C2
Heated Seat Control Module Connector End View - Driver C2

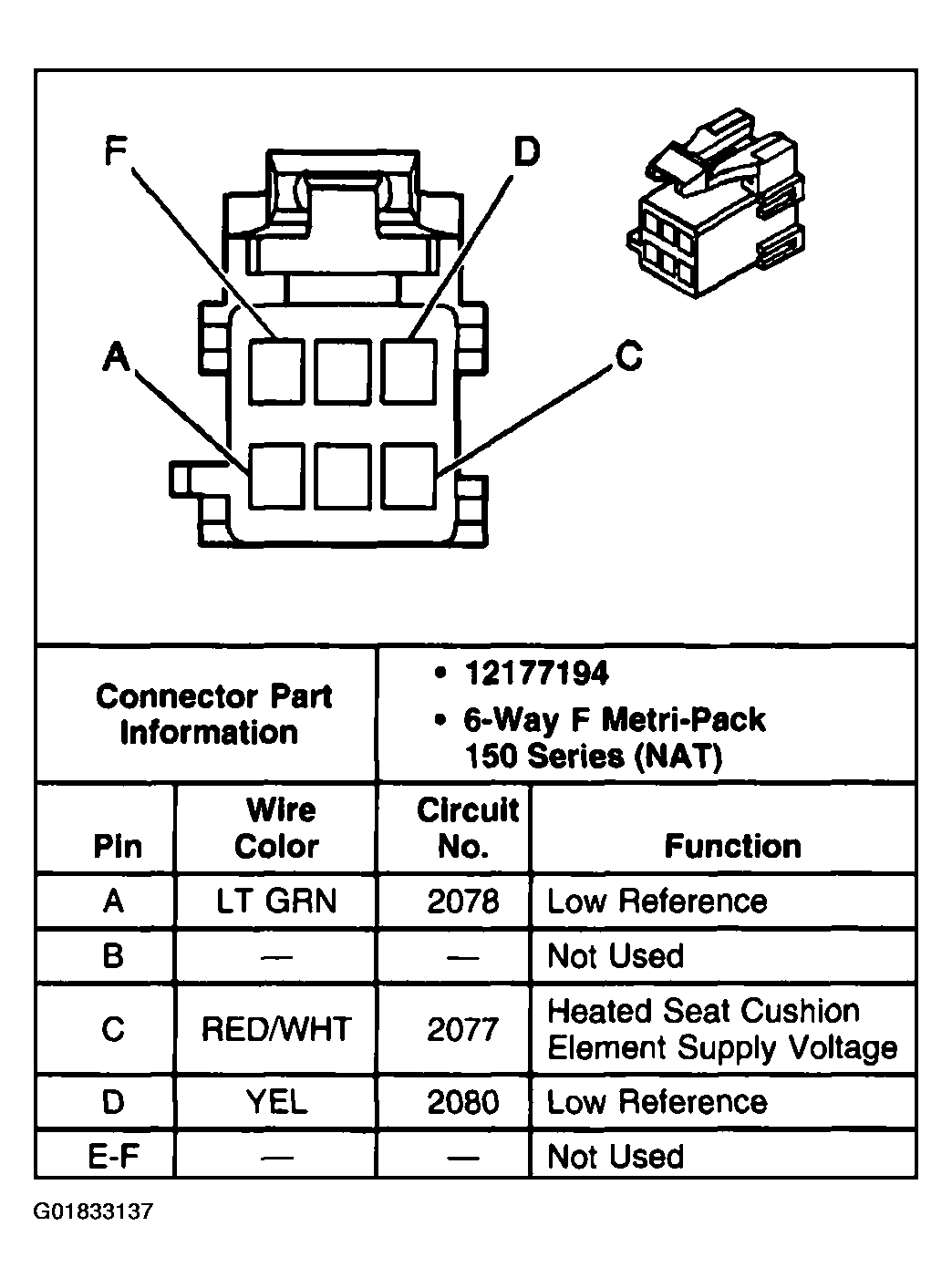

Fig 1: Heated Seat Control Module - Driver C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
