Horn Assembly Connector End View
Horn Assembly Connector End View

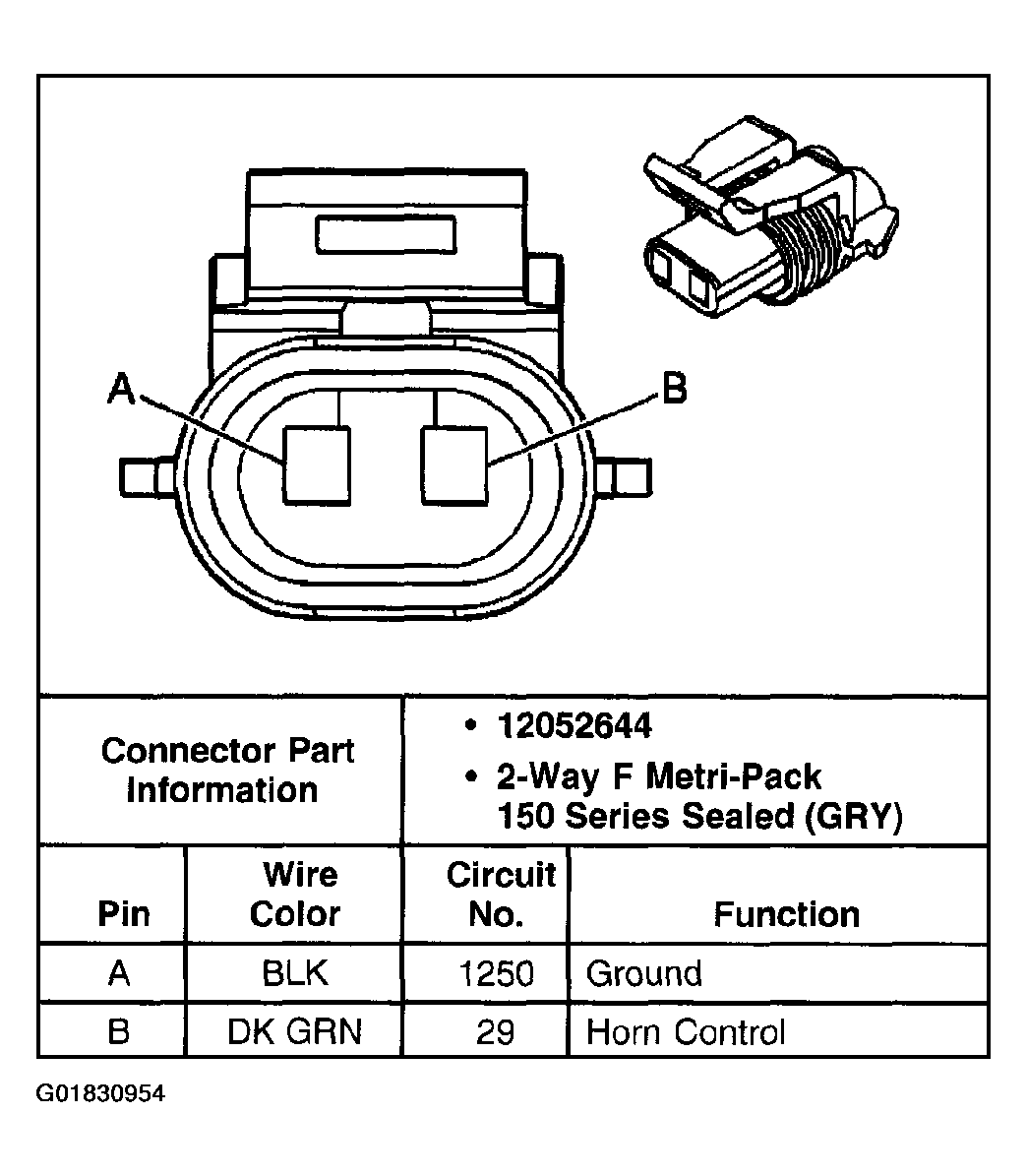

Fig 1: Horn Assembly
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
