Inside Air Temperature Sensor Connector End View
Inside Air Temperature Sensor Connector End View

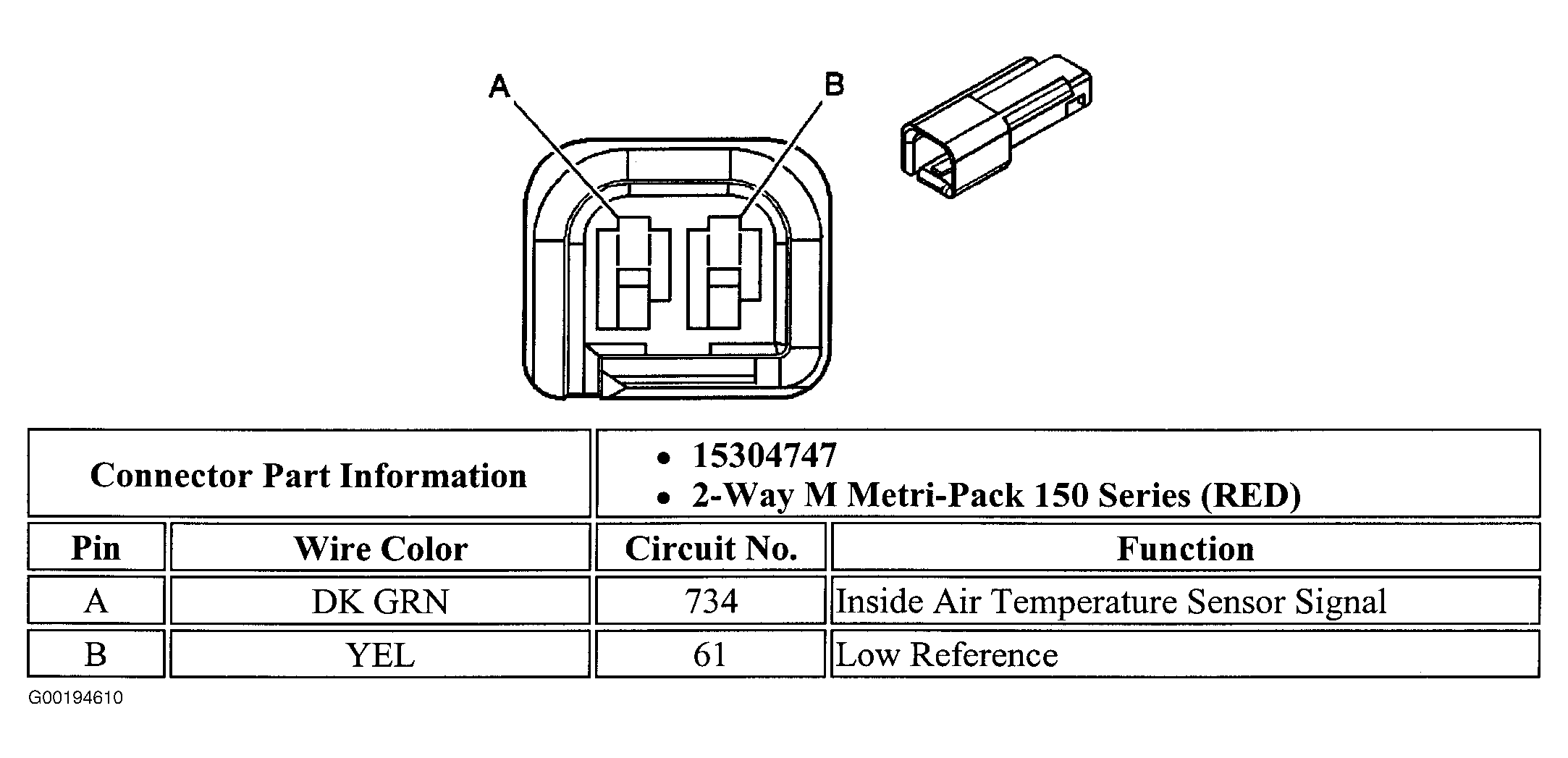

Fig 1: Inside Air Temperature Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
