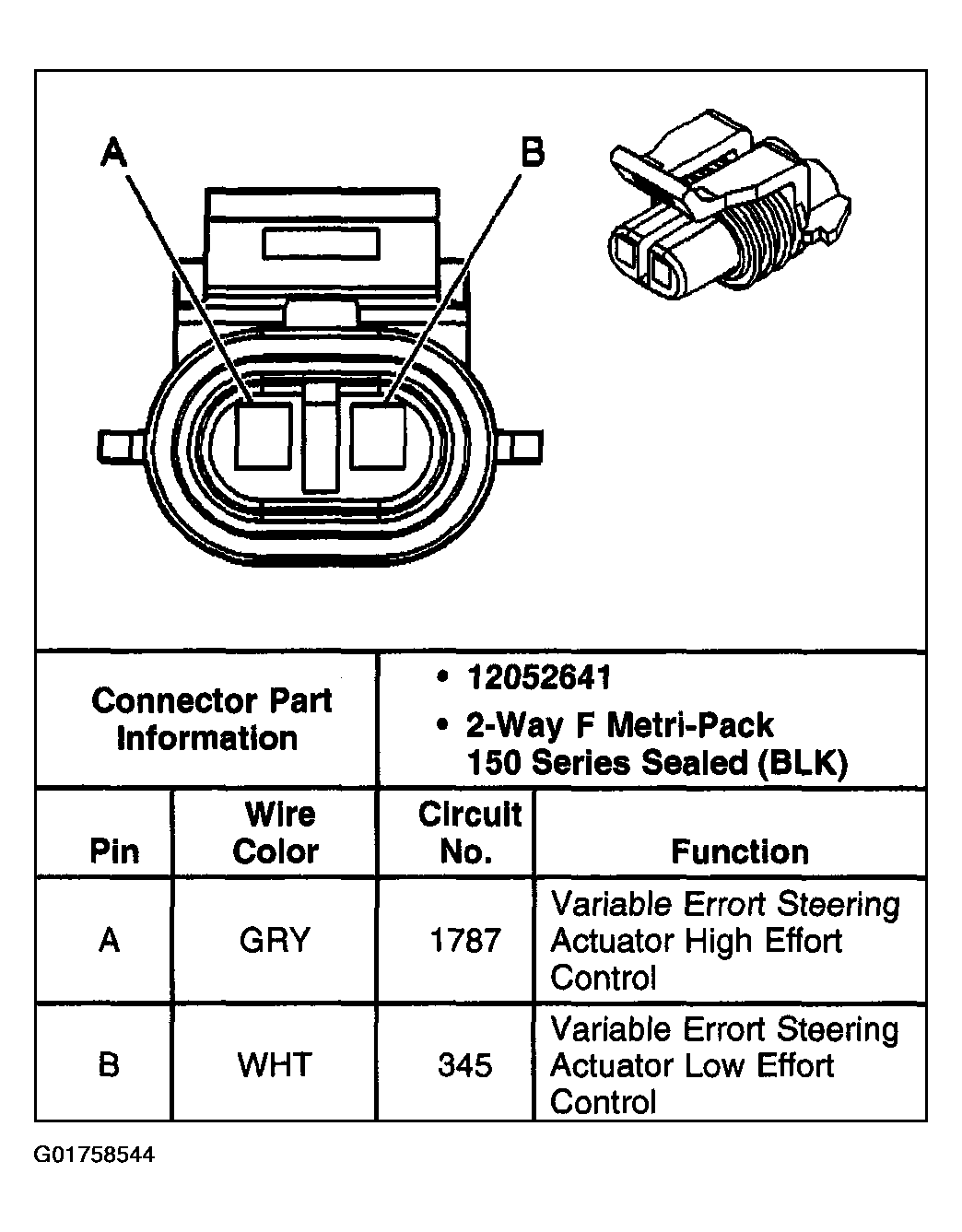

Magnasteer Actuator Connector End View

Fig 1: Magnasteer Actuator

Courtesy of GENERAL MOTORS CORP.

Fig 1: MSVA Actuator

Courtesy of GENERAL MOTORS CORP.

Connector Part Information		12052641 2-Way F Metri-Pack 150 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	GRY	1787	MSVA High
B	WHT	345	MSVA Low
