OnStar Module Connector End View C1

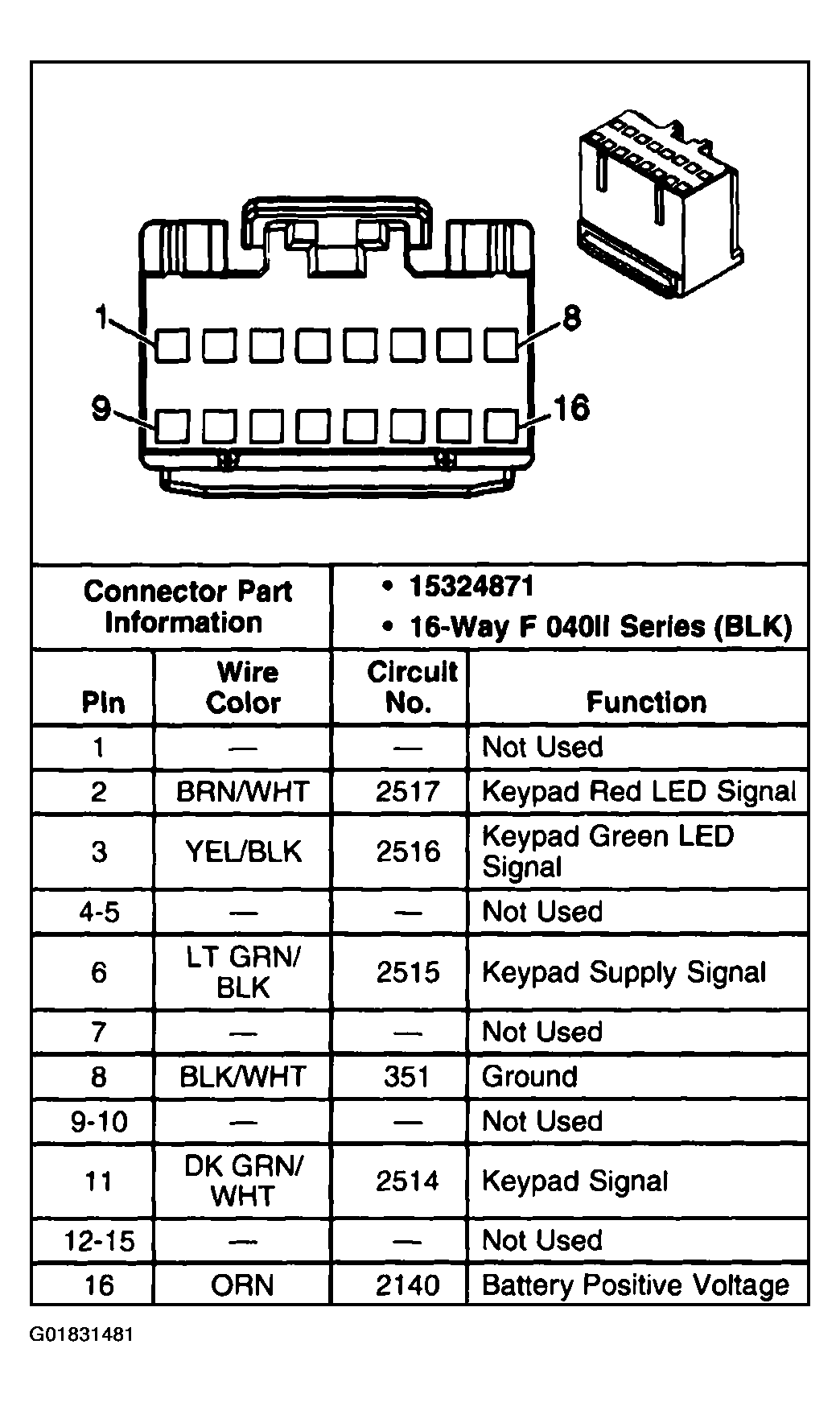

Fig 1: OnStar Module C1
G01831481Courtesy of GENERAL MOTORS CORP.
