Passlock™ Sensor Connector End View
Passlock™ Sensor Connector End View

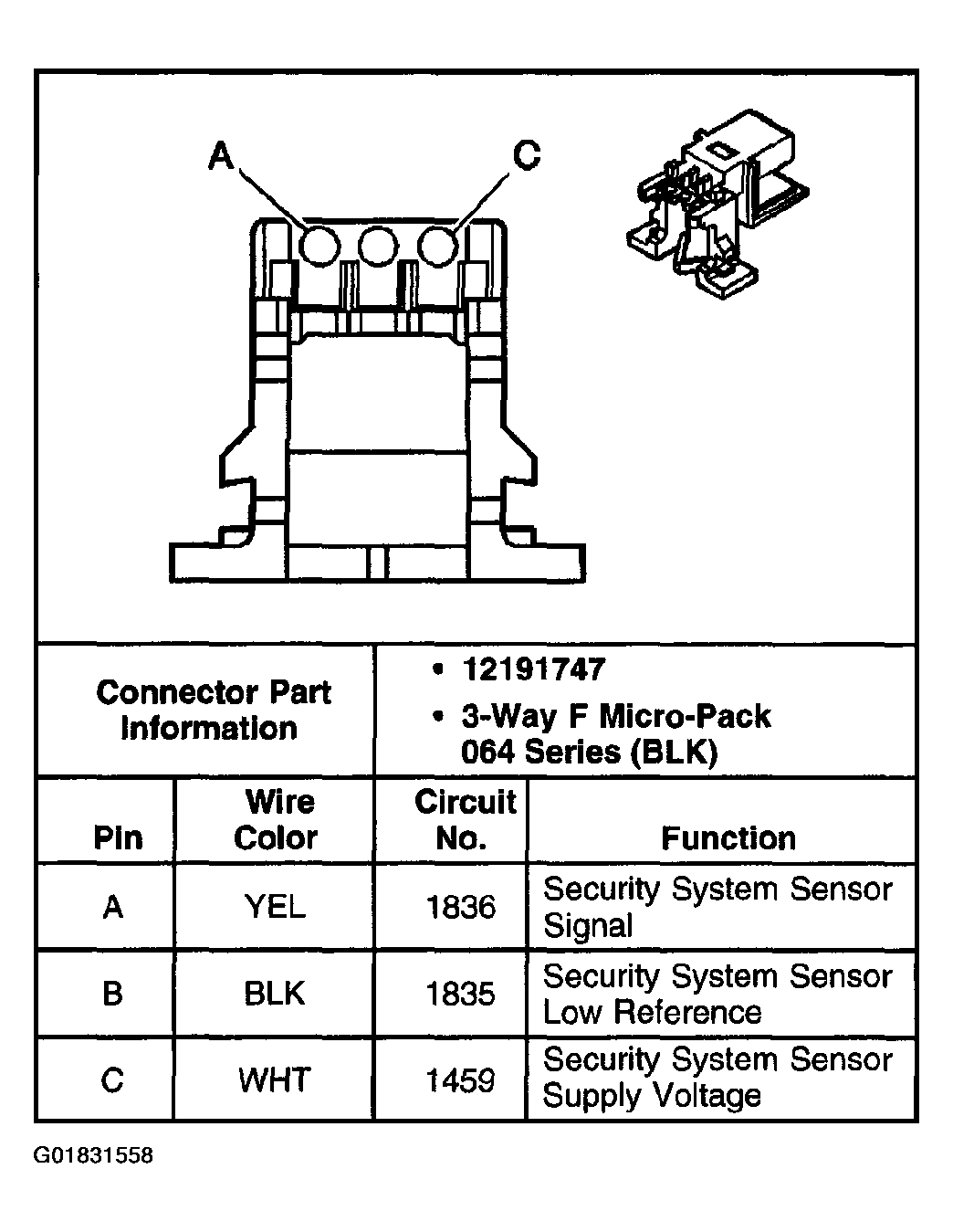

Fig 1: Passlock™ Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
