Sunload Sensor Connector End View
Sunload Sensor Connector End View

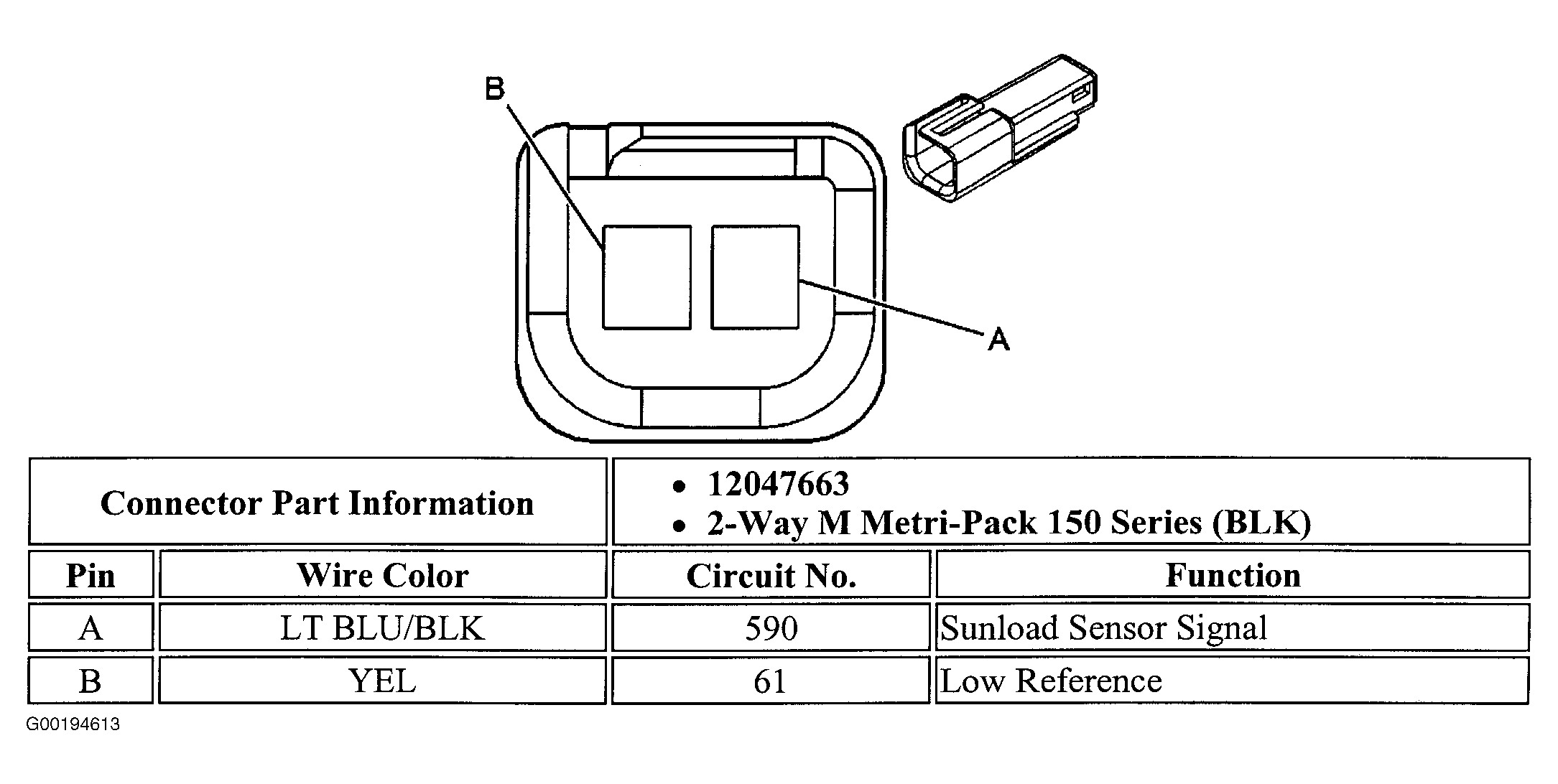

Fig 1: Sunload Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
