Washer Fluid Level Sensor Connector End View
Washer Fluid Level Sensor Connector End View

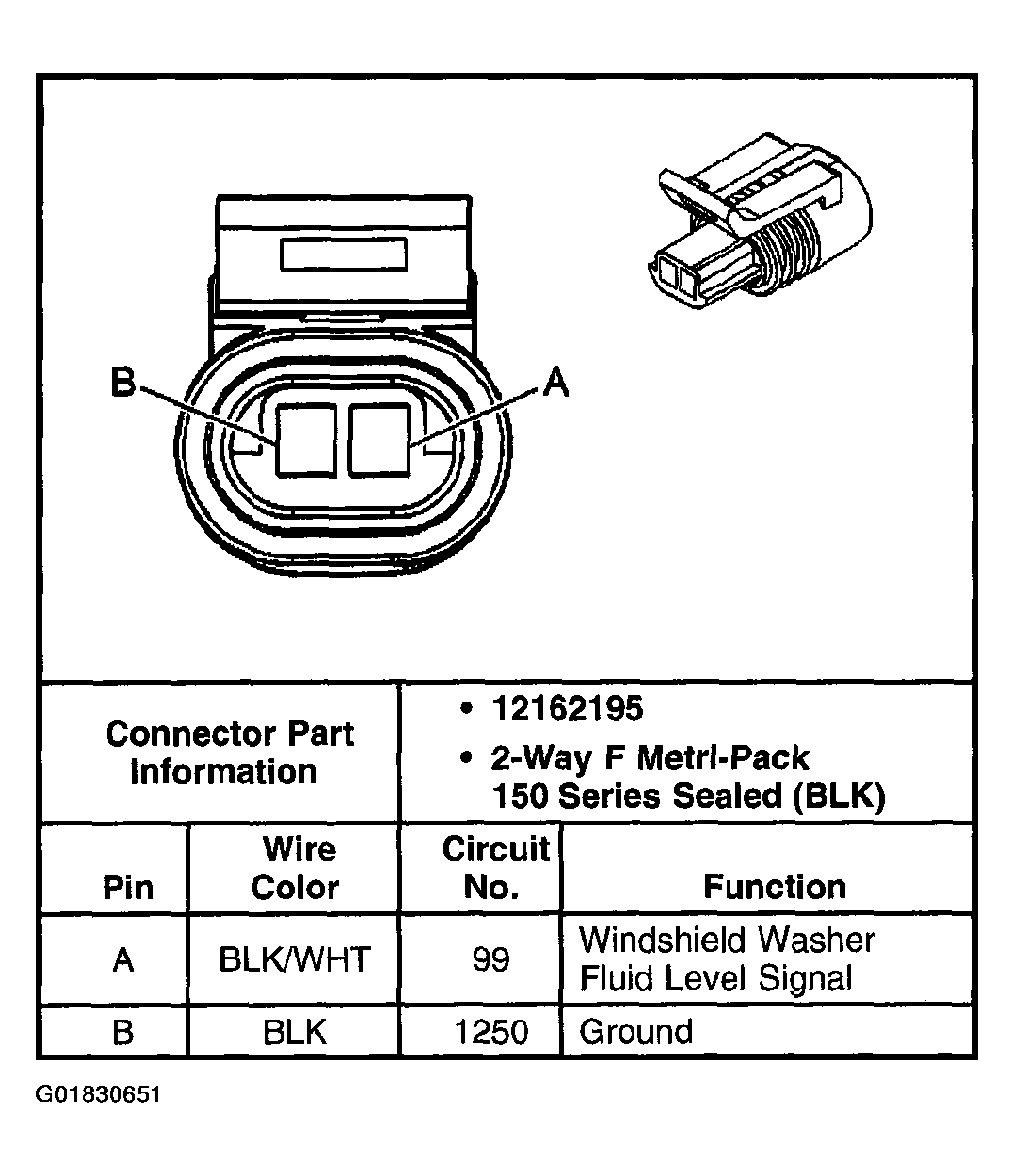

Fig 1: Washer Fluid Level Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
