Power Steering Gear Disassembled View (Magnasteer)

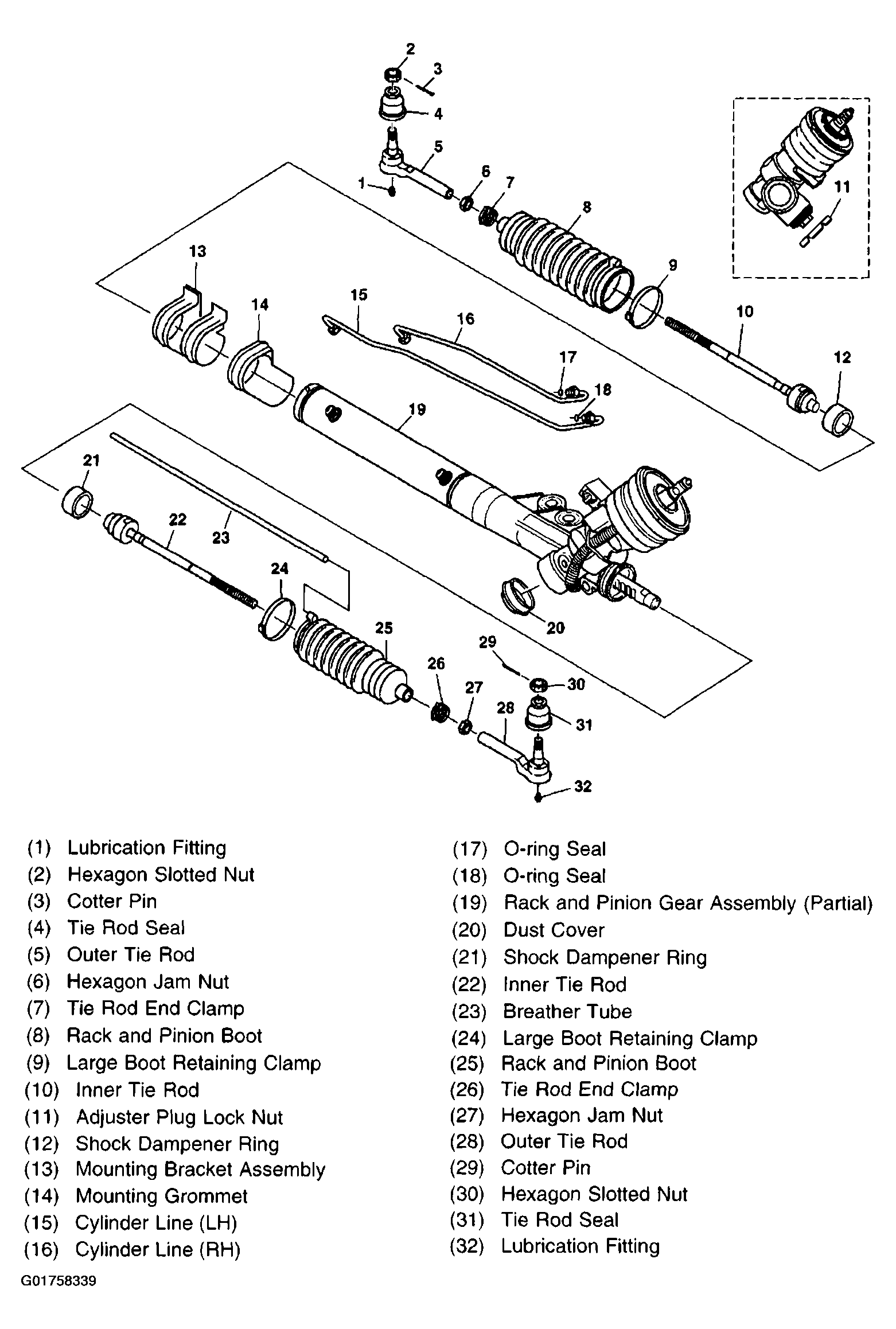

Fig 1: Magnasteer Power Steering Gear
G01758339Courtesy of GENERAL MOTORS CORP.
