Removal Procedure

  1. Remove the power steering pulley from the power steering pump. Refer to Power Steering Pulley Replacement .
  2. Remove the power steering pressure hose from the power steering pump. Refer to Power Steering Pressure Hose Replacement .
  3. Remove the power steering return hose from the power steering pump. Refer to Power Steering Return Hose Replacement .
  4. Remove the power steering pump mounting bolts.
  5. Remove the power steering pump assembly.
  6. Remove the power steering pump reservoir from the power steering pump.

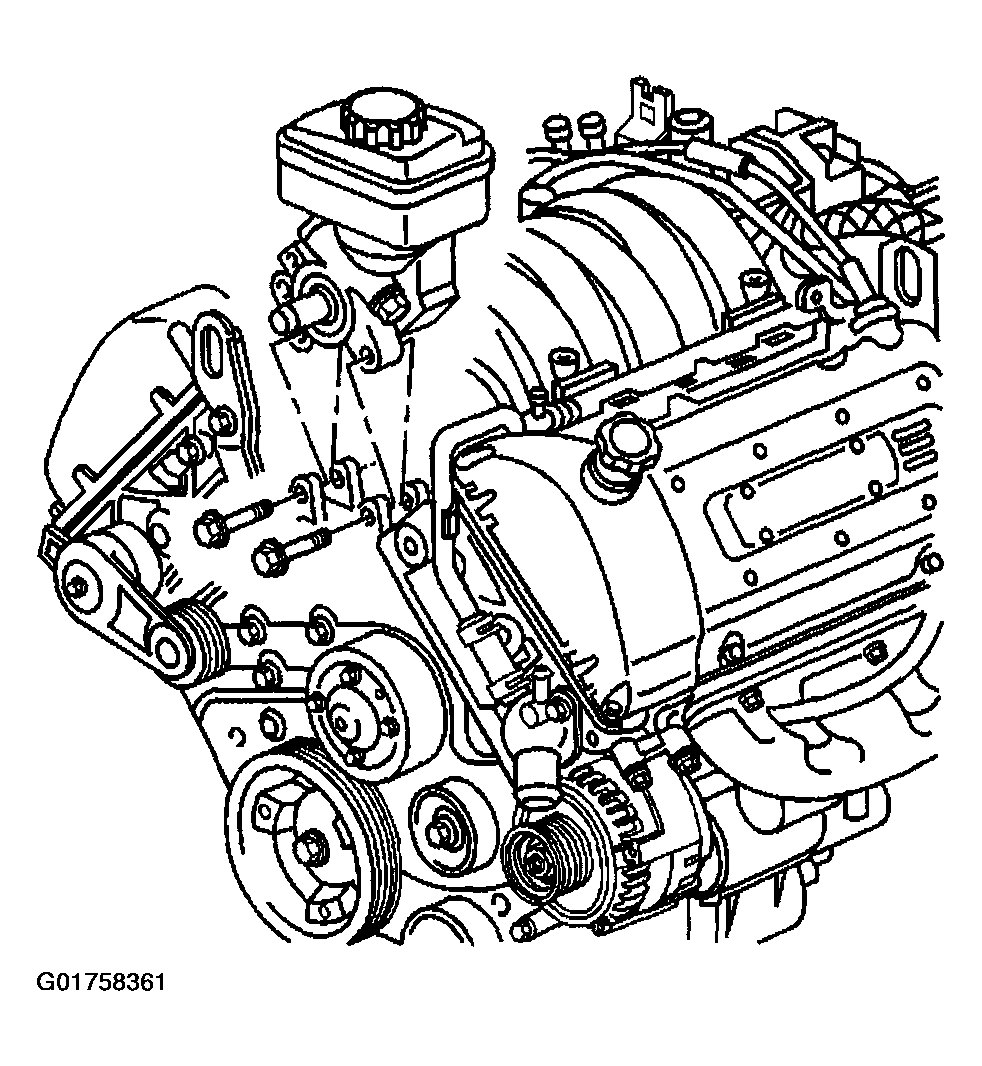

    Fig 1: Power Steering Pump Reservoir Removed
    G01758361Courtesy of GENERAL MOTORS CORP.
