Steering Column Disassembled View

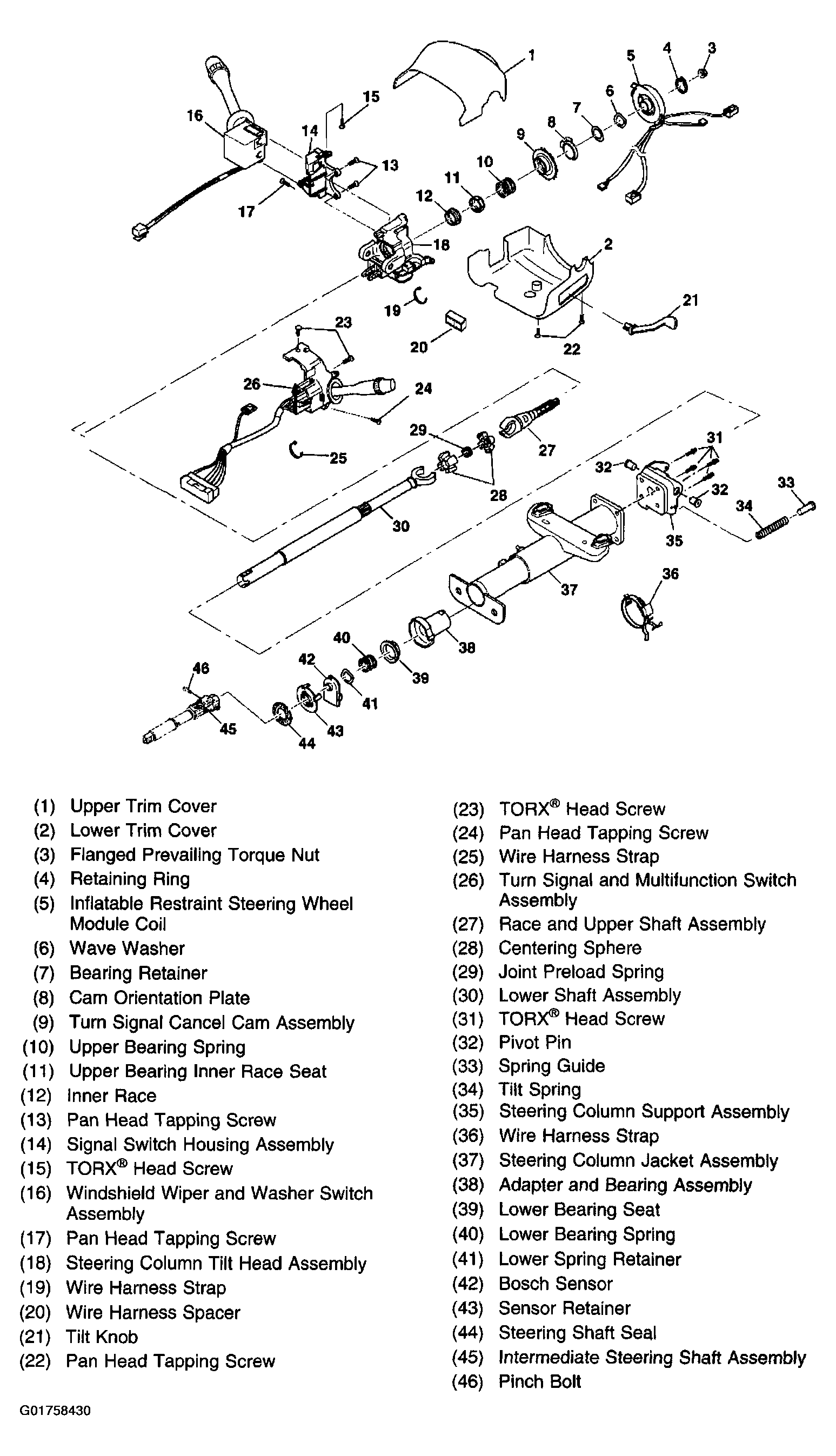

Fig 1: Tilt Steering Column, Floor Shift
G01758430Courtesy of GENERAL MOTORS CORP.
