Removal Procedure

  1. Disable the SIR system. Refer to DISABLING SYSTEM
  2. Remove the inflatable restraint steering wheel module. Refer to AIR BAG MODULES in SIR.
  3. Remove the screws from the steering wheel control switch.

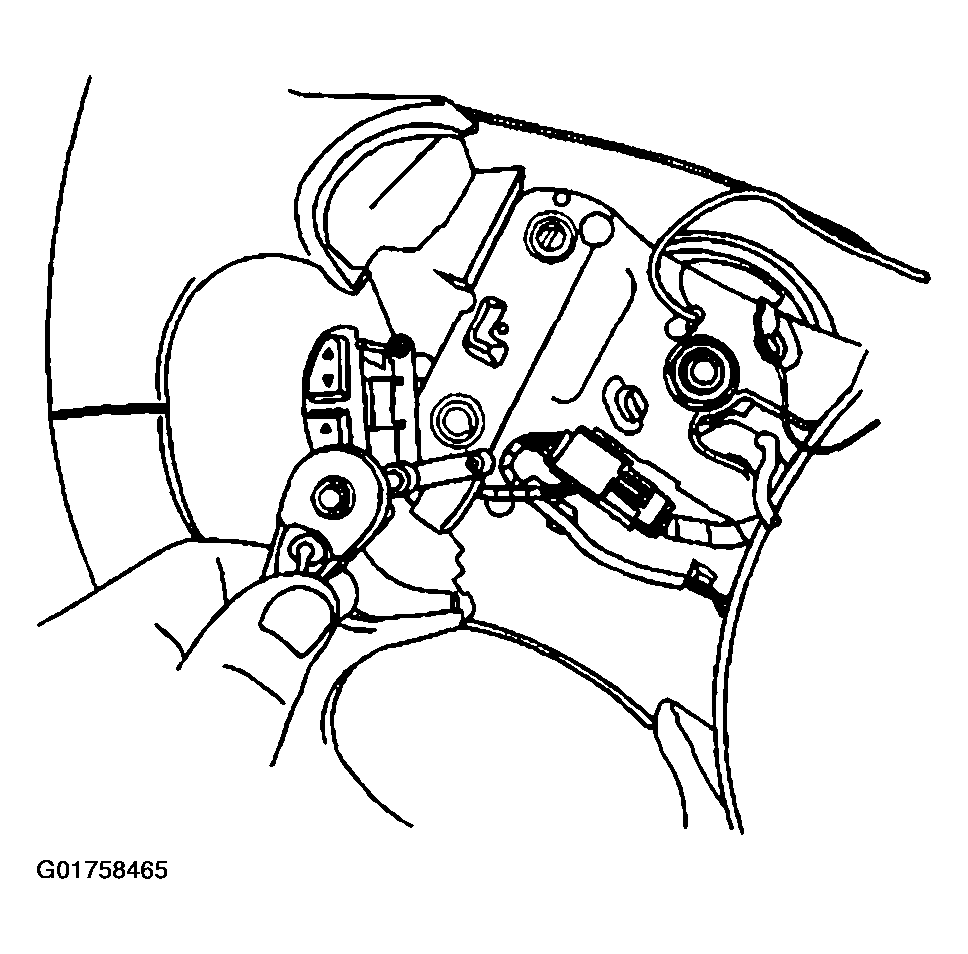

    Fig 1: Removing Screws From Steering Wheel Control Switch
    G01758465Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the steering wheel control switch.
  5. Remove the steering wheel control switch from the steering wheel.

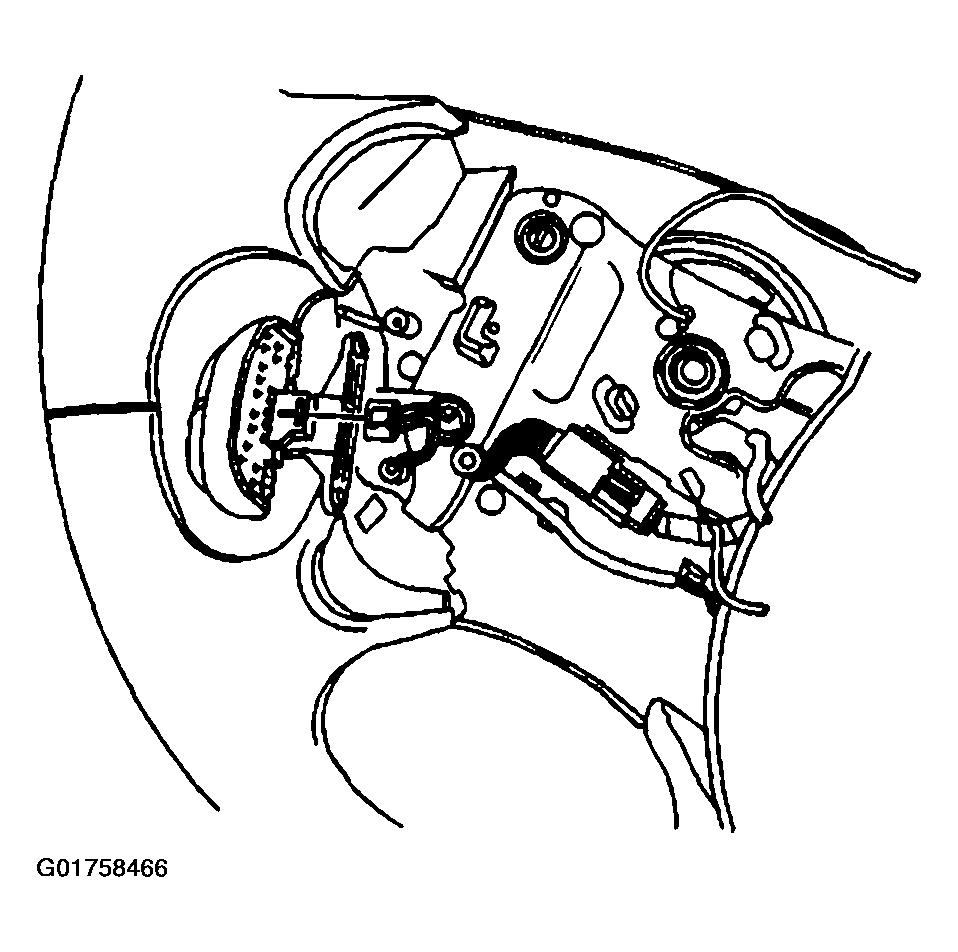

    Fig 2: Steering Wheel Control Switch Removed From Steering Wheel
    G01758466Courtesy of GENERAL MOTORS CORP.
