Cruise Control Schematics (PCM Serial Data)
Cruise Control Schematics (PCM Serial Data)

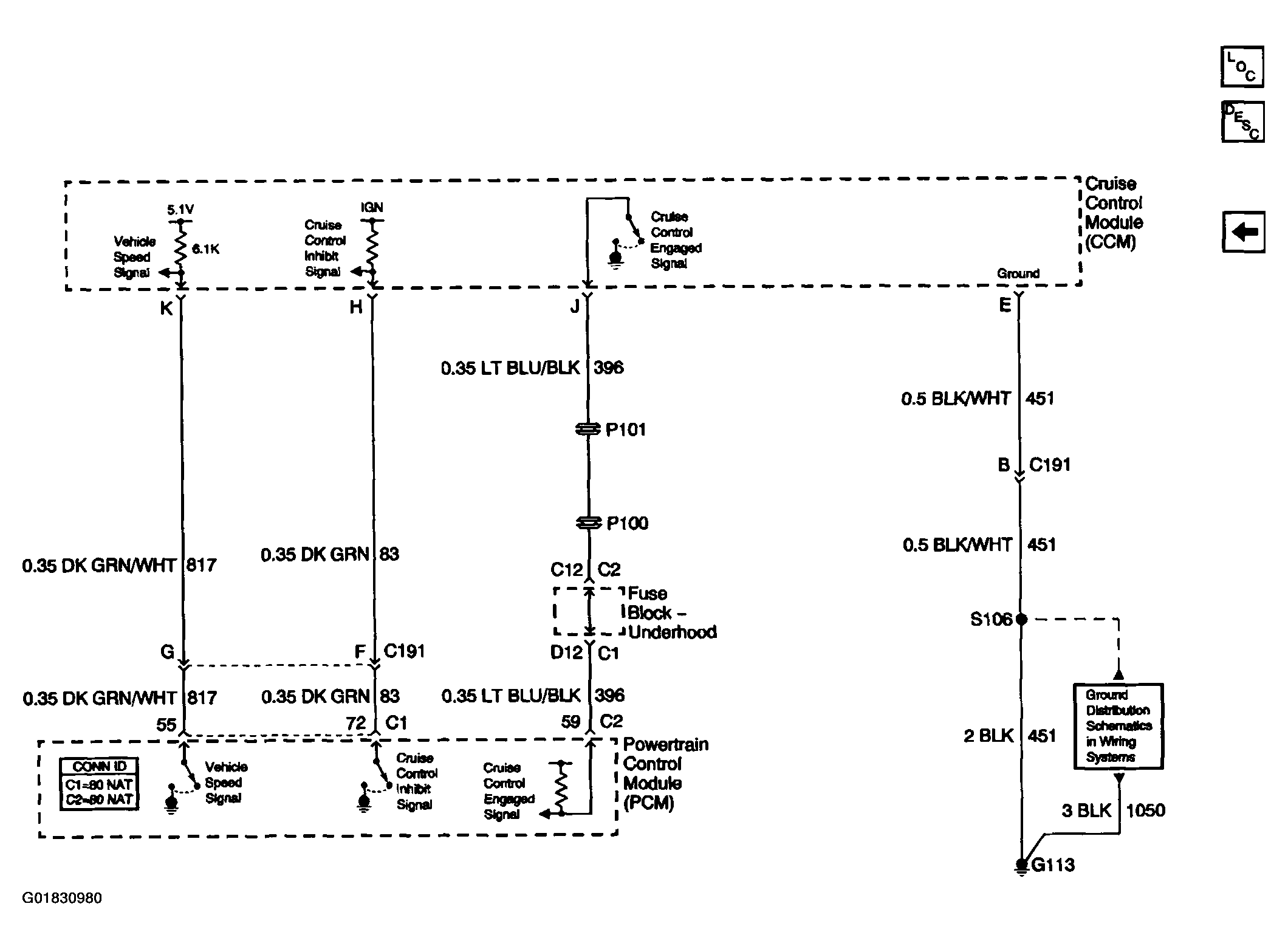

Fig 1: Cruise Control Schematic (PCM Serial Data)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
