Removal Procedure

The front inside door handle bezel has an electrical connector for the power door lock system.

1. Hold the inside door handle open in order to gain access to the inside door handle bezel close out plate.
2. Use a small, flat-bladed tool in order to remove the inside door handle bezel close out plate from the bottom access slot.
3. Remove the screw which secures the inside door handle bezel to the door.
4. Remove the inside door handle bezel from the door trim panel.
   Fig 1: Removing Inside Door Handle Bezel & Screw

   Courtesy of GENERAL MOTORS CORP.
5. Remove the inside door handle bezel electrical door lock connector (front door only).
6. Remove the inside door handle bezel from the vehicle.

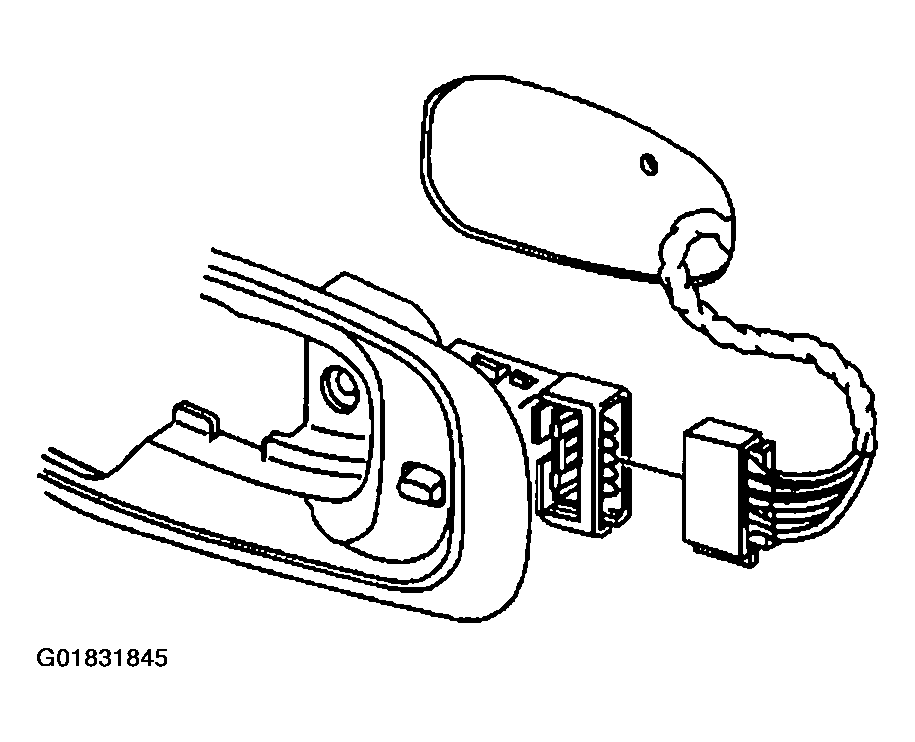

   Fig 2: Removing Inside Door Handle Bezel Electrical Door Lock Connector

   Courtesy of GENERAL MOTORS CORP.
