Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door
  2. Disconnect the electrical connector from the outside rearview mirror.

    Important:  Support the outside rearview mirror.

  3. Remove the outside rearview mirror to front door nuts.
  4. Remove the outside rearview mirror from the front door.

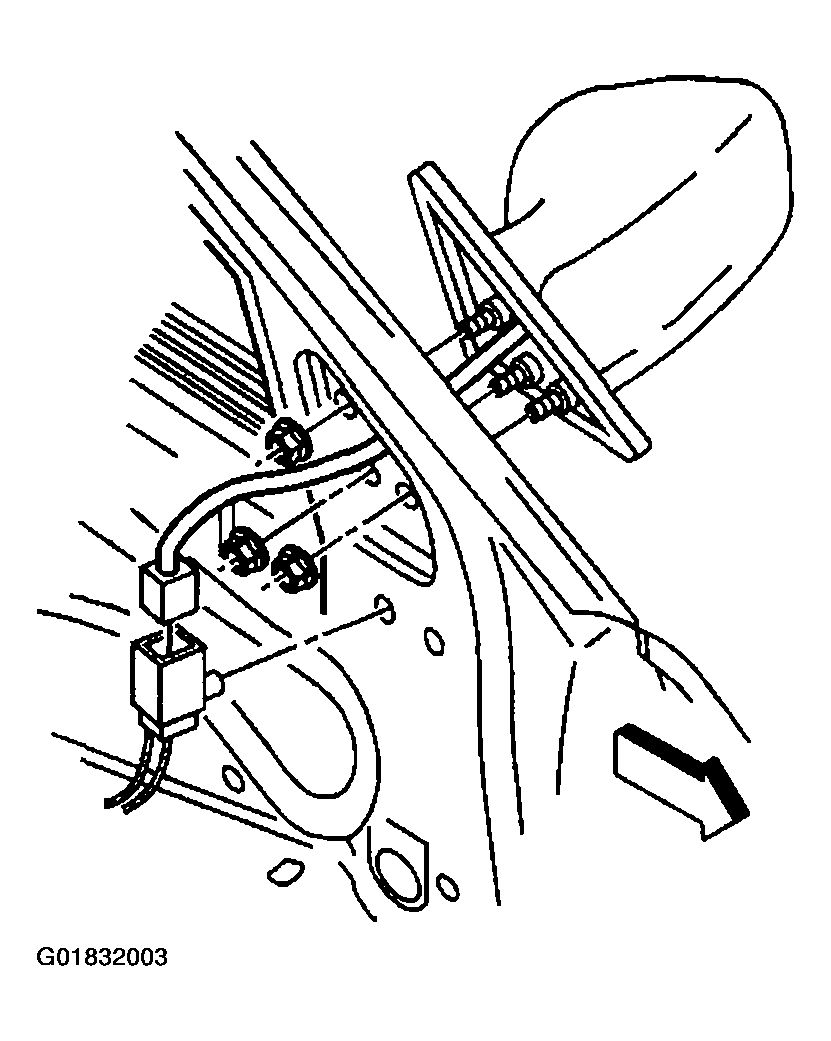

    Fig 1: Removing Outside Rearview Mirror, Electrical Connector & Nuts
    G01832003Courtesy of GENERAL MOTORS CORP.
