Test Description

The numbers below refer to step numbers on the diagnostic table.

1. 2. Checks if the IPC has the ability to turn the ABS Indicator on.

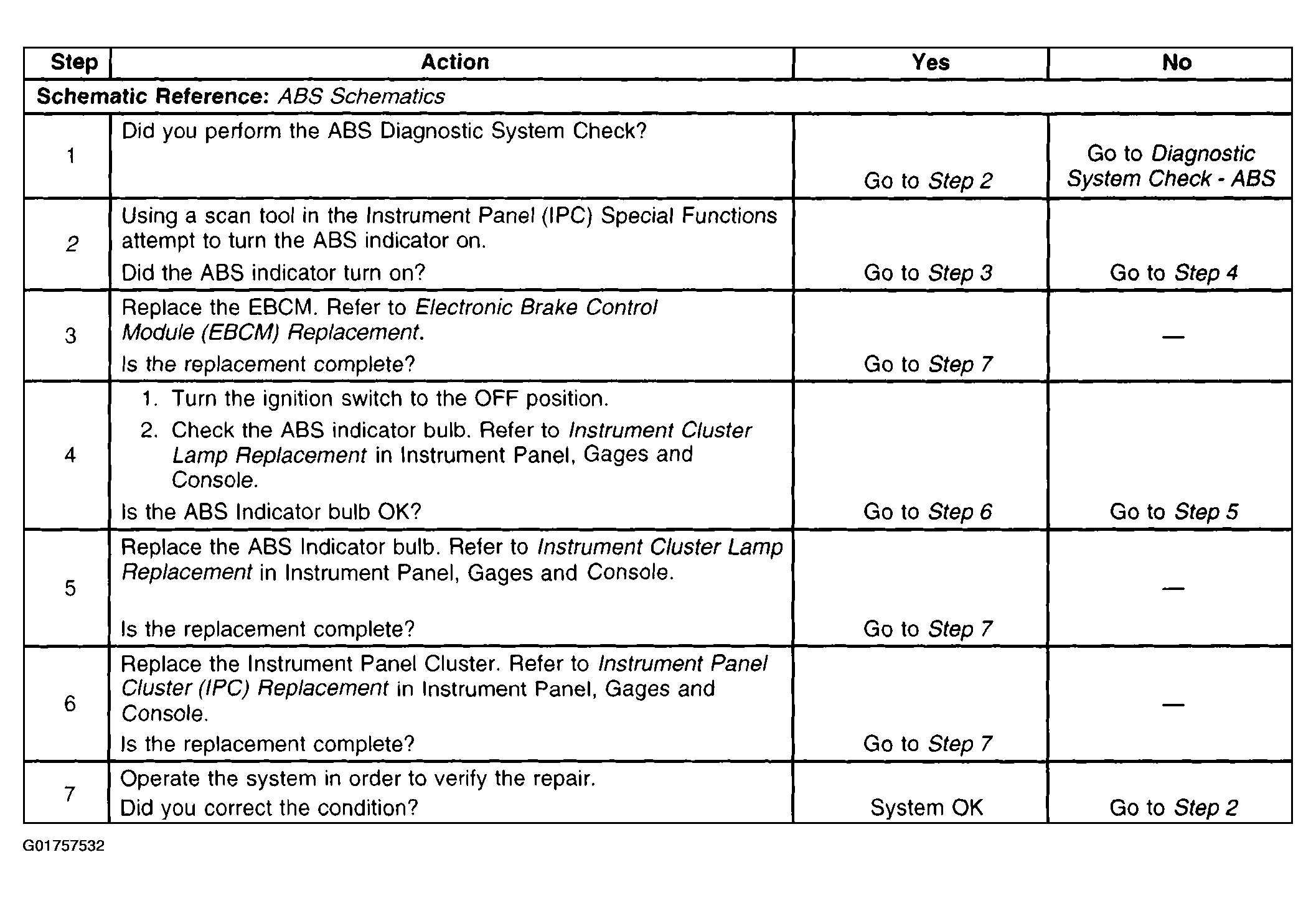

   Fig 1: ABS Indicator Inoperative

   Courtesy of GENERAL MOTORS CORP.
