Engine Electrical Component Views

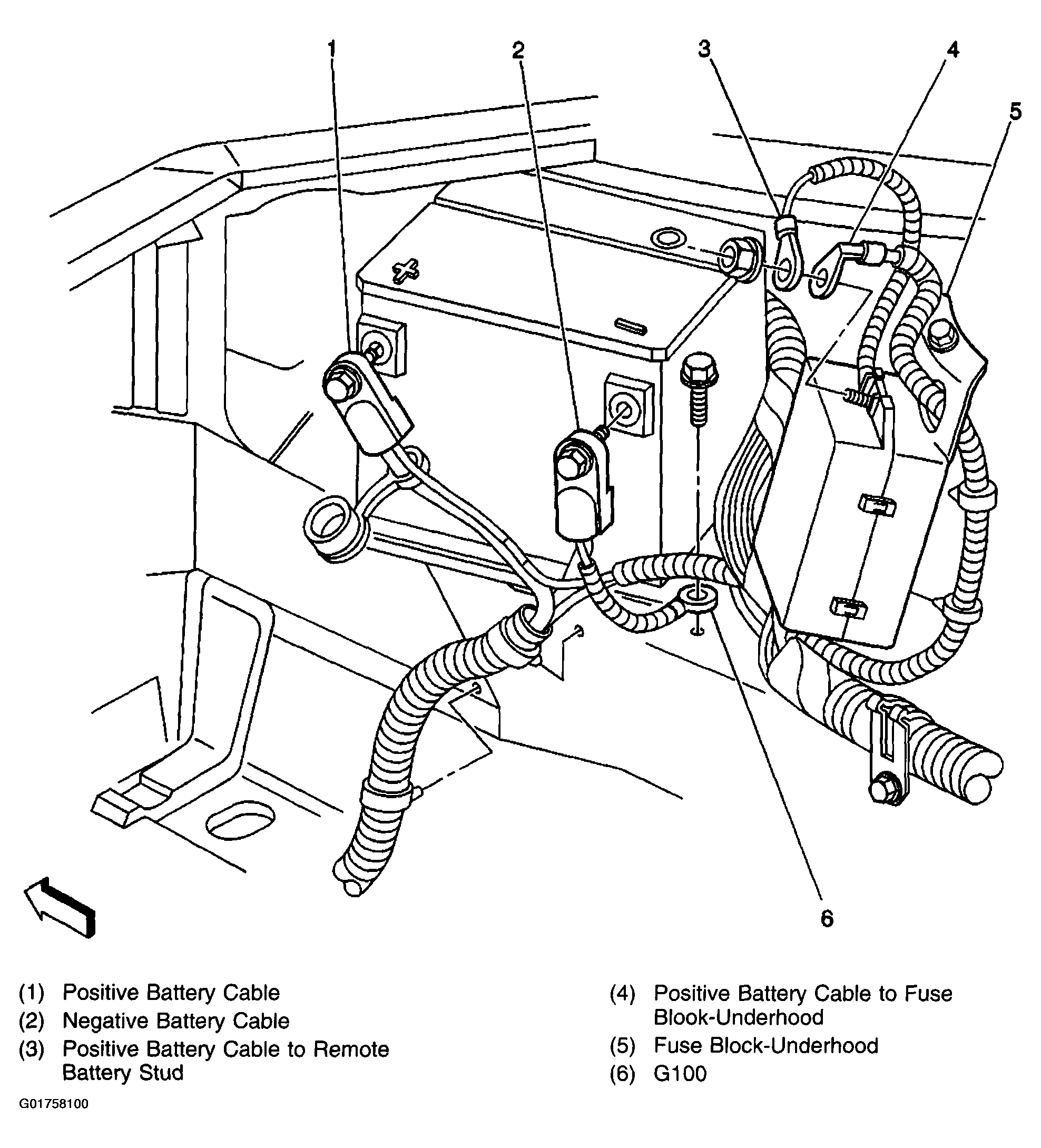

Fig 1: Right Side Of Engine Compartment
G01758100Courtesy of GENERAL MOTORS CORP.
